Print Reading Exercise #6
jjjohnson
Full Name JJ Johnson
Location United States
Company SeeMeCNC
FilenameDownloadsSizeUploaded

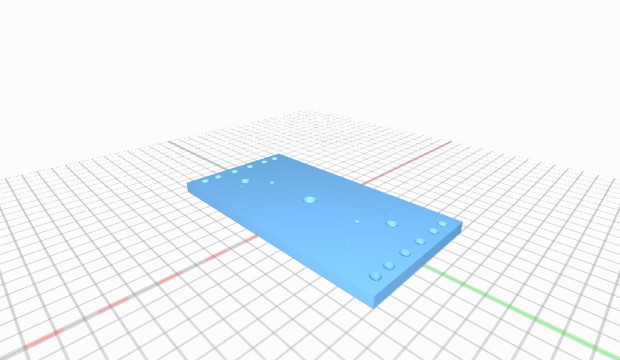

Print Reading 6.stl181288 kBon 16/1/14 Download
Print Reading 6.pdf21685 kBon 16/1/14 Download
Print Reading Exercise 6 Worksheet.pdf208133 kBon 16/1/14 Download
Print Reading 6.jpg23313 kBon 16/1/14 Download
Description

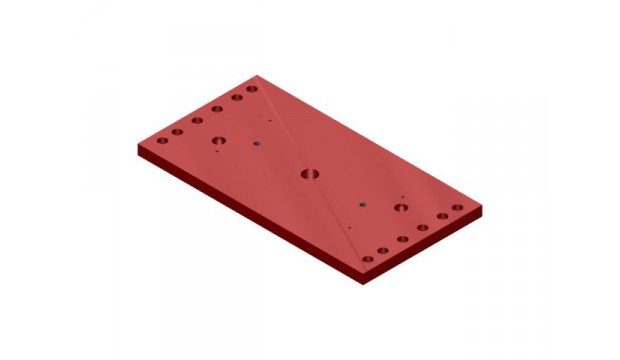

Print Reading is a valuable skill for students to learn. This beginner level print reading will allow students to understand the fundamentals of reading a blueprint. Print the part and you have an excellent visual aid to provide when teaching the fundamentals of interpreting information commonly found on a blueprint. Provide each student with a copy (digital or paper) of the print and accompanying worksheet.
Instructions
Scale the print as required. Material: ABS or PLA, Layer Height: .3mm, Perimeters: 2, Bottom / Top Layers: 3, Infill: 10%
License
Attribution - Share Alike - Creative Commons
