Filament joiner for multicoloured printed 3D objects
RichRap
Full Name Richard Horne (RichRap)
Location UK
FilenameDownloadsSizeUploaded
filament_joiner_display_large_display_large.jpg302506 kBon 29/5/14 Download

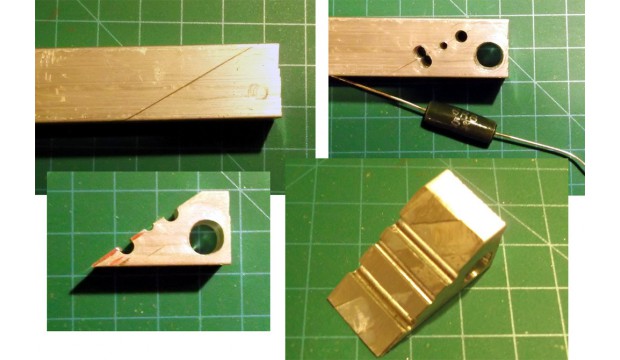

filament_joiner_block_building_display_large_display_large.jpg315357 kBon 29/5/14 Download

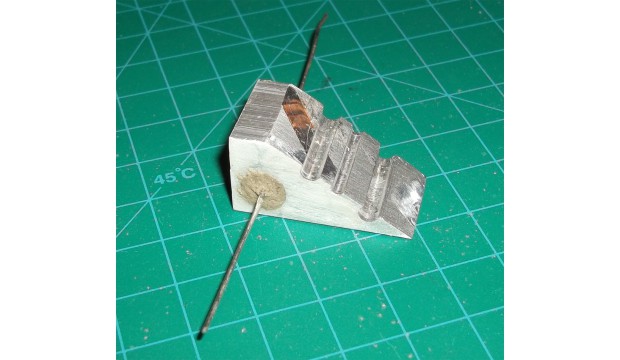

filament_joiner_block_with_resistor_display_large_display_large.jpg304526 kBon 29/5/14 Download

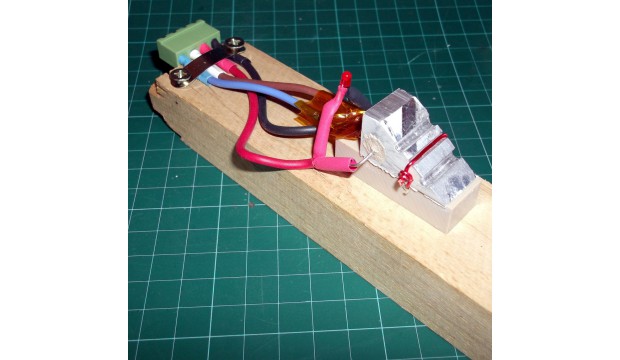

filament_joiner_block_with_resistor_and_insulator_display_large_display_large.jpg321531 kBon 29/5/14 Download

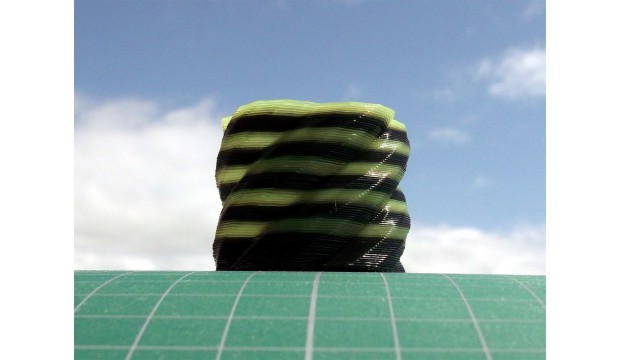

tiger_stripes_display_large_display_large.jpg338411 kBon 29/5/14 Download
tiger_pot_display_large_display_large.jpg306336 kBon 29/5/14 Download

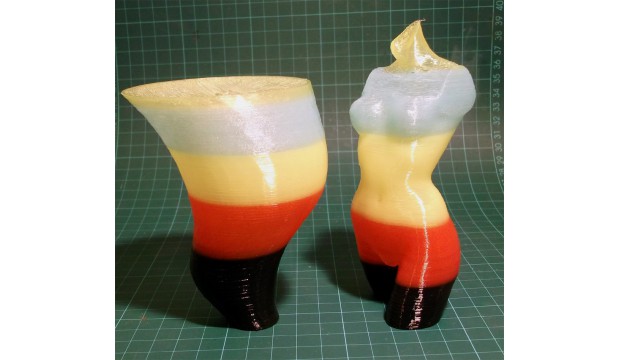

twister_and_pink_panther_display_large_display_large.jpg323453 kBon 29/5/14 Download

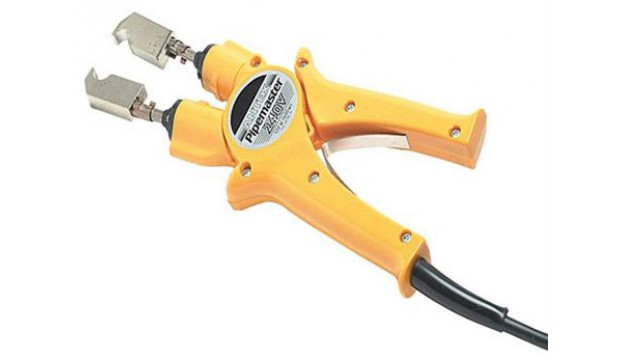

pipe_joiner_display_large_display_large.jpg34539 kBon 29/5/14 Download

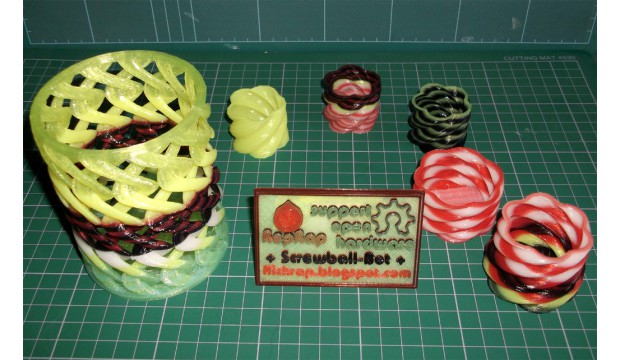

all_printed_display_large_display_large.jpg313418 kBon 29/5/14 Download
Description

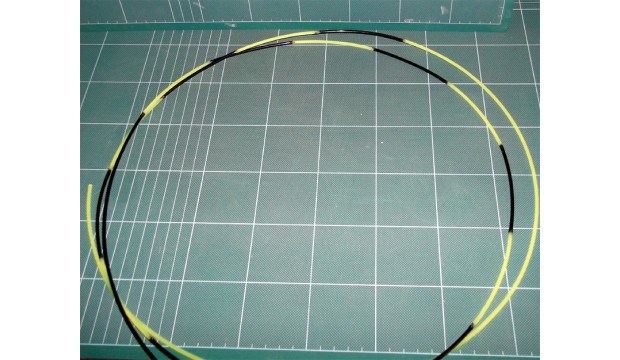

This is a simple temperature controlled heating block for joining plastic filament together in sections so you can print nice looking multicoloured objects. Back in the day when multi-colour objects were still not known or being made :)
Instructions

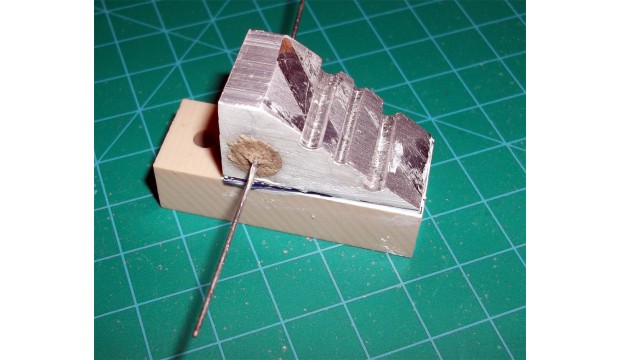

You may find more information on my Blog here - richrap.blogspot.com/2011_06_01_archive.html This is the basic Idea for making one - People seem to do this in a number of different ways - 1) - Start the print with one colour filament, pause the print and reverse out the filament and load a new colour, continue the print. 2) - Join lengths of different coloured filament together and print them in one go (using hot-air guns or flames). 3) - Use multiple extruders with different coloured filament, produce some complicated Gcode to control them. I tried joining with a flame (lighter) this is not a good idea, it does not work well and it's easy to snap the join after cooling, it also can char the filament, not something you want to feed into your extruder. I then tried a flat heated block of Aluminium, melt both ends and join, roll them on the block, this works but can make a mess and it's a little fiddly. And after a quick try of a hot-air gun (don't bother it's not easy at all) I decided to try and make a temperature controlled filament joiner - I decided to make a Aluminium block with a heated channel so I can join and rotate the filament, this works really well and it only takes 5 seconds to join pre-cut lengths together. 1) - Cut an Aluminium block, drill a hole for the resistor (6.8Ohms) and then slice it so you have 'joining channels' 2) - Bond in the resistor (fire cement) and then insulate the bottom of the block with something that is not going to catch fire, PEEK, PTFE, silicon etc. 3) - Wire it up just like you would with a 3D printer hot-end and add a thermistor (I also added an LED to tell me when it's on) Mount it to a block of wood or something you can clamp down. 4) - You can use your RAMPS electronics setup and a host program to control the temperature as it's the same as your hot-end. (if you have a resistor hot-end that is) I found a good temperature was about 160 Degrees C(For PLA, For ABS it's going to need to be hotter), this gives you time to heat and rotate the filament and also joins it really well. 5) - So if you hold a piece of filament in each hand and melt both ends on the side of the Alu block, then sith the into the grove and push together then give them a quick rotate you should have a joined filament (after a little practice). Improvements and changes to think about if you decide to build one - 1) - Have a shorter heating zone, just ~4mm for each side, this would help keep the filament more rigid when you twist it to remove the join. 2) - Have a bigger flat area that you can quickly melt both the filament ends, I'm using the side of the block to do this, but a bit more area would be good. 3) - Have a cold block or wet sponge to rapidly cool the joined filament in place or a foot pedel (you need both hands to hold the two filaments) controlled fan so you can blast cool it. *- Maybe make the heating block clamp together in two halves like an electric plumbing pipe joiner - (See picture and if anyone makes one, let me know how well it works). If you had a foot-pedal controlled one of these for filament joining it may make the job even easier. Make one, you can print all sorts of cool looking things and lots of colours will just make them look even better. Please post improvements, ideas or your results.
License
Attribution - Share Alike - Creative Commons
Comments
Kelalapse - 4 days, 6 hours ago
Cialis Generika Wo Kaufen <a href=http://cial40mg.com/cialis-online-pharmacy.php>Cialis Online Pharmacy</a> Online Generic Levitra Achat Propecia 1mg <a href=http://clomid.ccrpdc.com/cheapest-clomiphene.php>Cheapest Clomiphene</a> Catalogo Levitra Cialis Cheap Canada <a href=http://comprar-priligy-en-internet.priliorder.com>Comprar Priligy En Internet</a> Lilly Keflex Onlinepharmacy.Vom <a href=http://kamagra-buy-online.kamagpills.com>Kamagra Buy Online</a> Where Diflucan Como Puedo Comprar Viagra Sin Receta <a href=http://viacheap.com>viagra</a> How To Buy Amoxicilina Without Dr Approval
Kelalapse - 5 days, 10 hours ago
Zithromax Otc <a href=http://clomid.ccrpdc.com/cheap-clomid-pill.php>Cheap Clomid Pill</a> Levitra Prix Au Maroc Propecia Donna <a href=http://levitra-generic-cheap.buylevi.com>Levitra Generic Cheap</a> Cialis Acheter Paris Viagra Sin Receta Levitra <a href=http://cial40mg.com/buy-cialis-cheap.php>Buy Cialis Cheap</a> Pet Amoxicillin Pacific Care Pharmacy <a href=http://viacheap.com>viagra prescription</a> Potenzmittel Viagra Vergleich Doxycycline 10mg <a href=http://buy-viagra.via100mg.com>Buy Viagra</a> Priligy Dapoxetina Commenti No Prescription Goldshield <a href=http://buy-priligy-online.priliorder.com>Buy Priligy Online</a> Kamagra Oral Jelly 100mg Wiki Citalopram Online <a href=http://ordering-kamagra-online.kamagpills.com>Ordering Kamagra Online</a> Cialis On Line Pharmacies
wbrokow1 - on 30/5/14
Just for clarification: what width x height aluminum block did you use? How did you cut ? Scroll saw? water jet? The face of the cut looks pretty clean. If I roughly manually cut through the holes I would have to mill the angled flat to the point little past the center axis of each hole In order to pull out the bonded filament. It looks like a cool little project to try out. thanks
