fan angle bracket
bvandiepenbos
FilenameDownloadsSizeUploaded
fan angle bracket.stl498104 kBon 10/12/14 Download
fan angle bracket.rsdoc490186 kBon 10/12/14 Download
Description

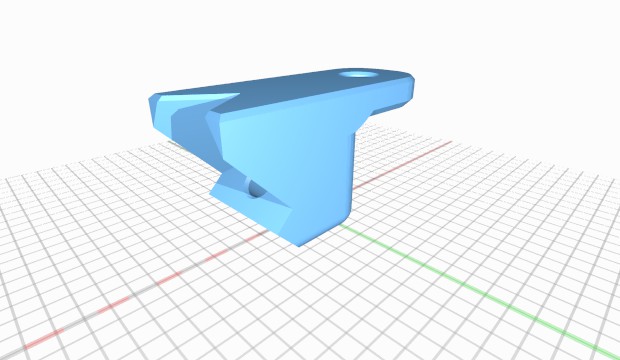

Simple bracket to mount a 30mm fan by one corner screw. Fan points at a 45 degree angle.
Instructions
Hole is meant to be tapped M3 Mounted 3 part cooling fans on the corners of the platform of my NEMESIS Air Delta Printer. Drawn with DesignSpark Mechanical. Source drawing file included. This is a great easy to use FREE 3D CAd program, check it out at http://www.rs-online.com/designspark/electronics/eng/page/mechanical
License
Attribution - Creative Commons
