5-Piece 3D Interlocking Cube Puzzle
gbo
Full Name Gabriel Ongpauco
FilenameDownloadsSizeUploaded

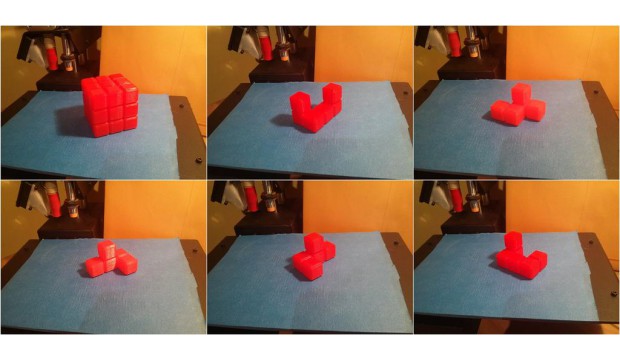

pieces-collage.jpg322664 kBon 19/10/15 Download

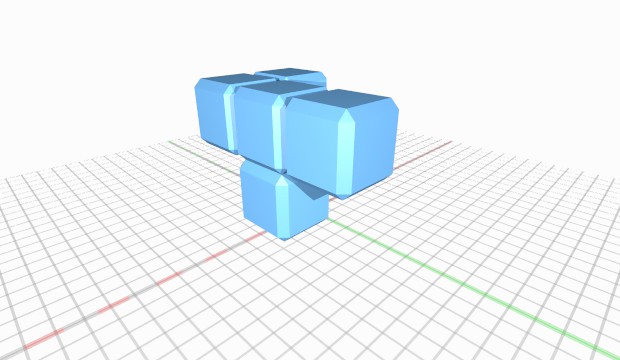

3D-0003.stl199112 kBon 19/10/15 Download

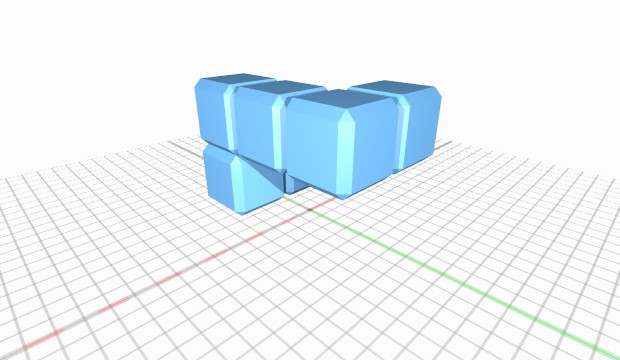

3D-0004.stl193810 kBon 19/10/15 Download

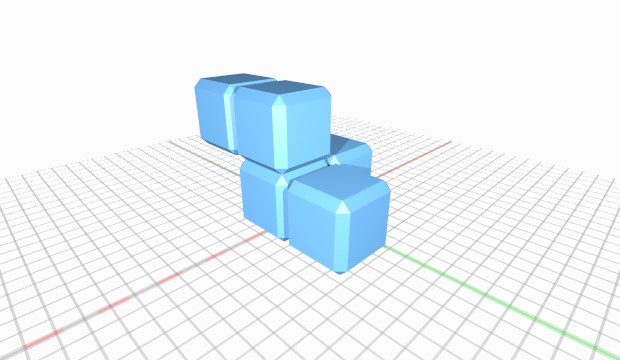

3D-0005.stl192511 kBon 19/10/15 Download

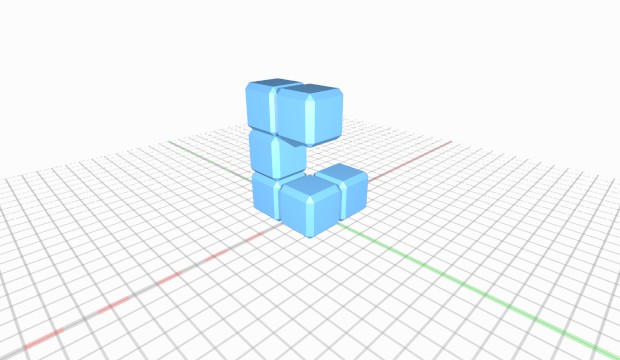

3D-0006.stl193210 kBon 19/10/15 Download

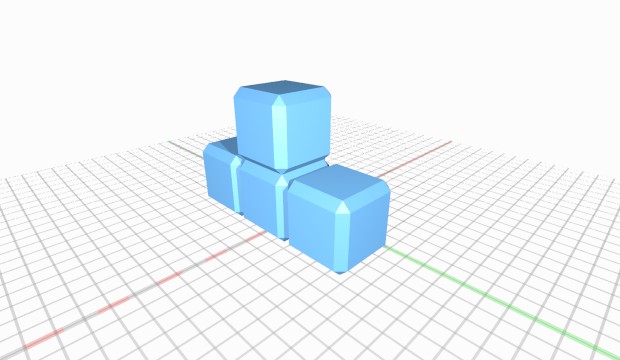

3D-0007.stl191712 kBon 19/10/15 Download
Description
A puzzle designed by Stewart Coffin as seen on Instructables (http://www.instructables.com/id/Precision-Puzzlemaking-Primer----Volume-1/step9/3x3x3-cube-puzzles/). These are .STL files ready to be sliced or fed into your 3D printing software. I used a Printrbot Simple Metal with Cura. I wanted to test how well my printer can print interlocking parts. To start off easy and to make it look nice, I added some chamfers around each "cube" segment of each piece. This helps the pieces fit together better. The print time for each piece can vary from 1 hour to 1 hr 20 minutes depending on your settings. If there's anything wrong with the files or you'd like some advice on printing, leave a comment or ping me on Twitter @gbo_actual. Stay updated on my projects at my website freecision.com.
Instructions
.STL files for printing the 3D puzzle. 3D-0006 is a mirror of 3D-0005. Printrbot Simple Metal, running Cura 15.04.2. The print settings were as follows: Mat'l: PLA Color: Red (MG Chemicals) Software: Cura Layer Height (mm): 0.16 Shell Thickness (mm): 0.8 Bottom/top Thickness (mm): 0.8 Fill Density: 15% Print Speed (mm/s): 45 Temp (C): 210 Support Type: None Platform Type: Raft Fil. Dia. (mm): 1.75 Flow Rate: 100%
License
Attribution - Creative Commons
