Small hold down Clamp
FilenameDownloadsSizeUploaded

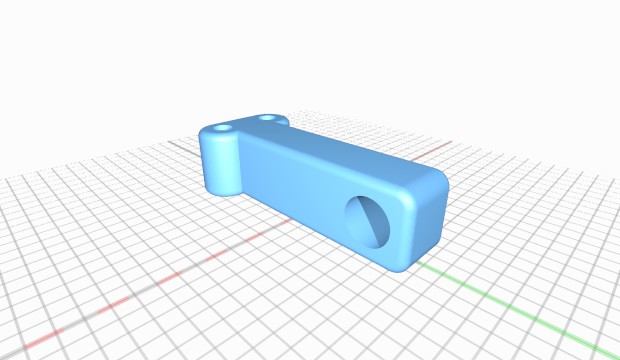

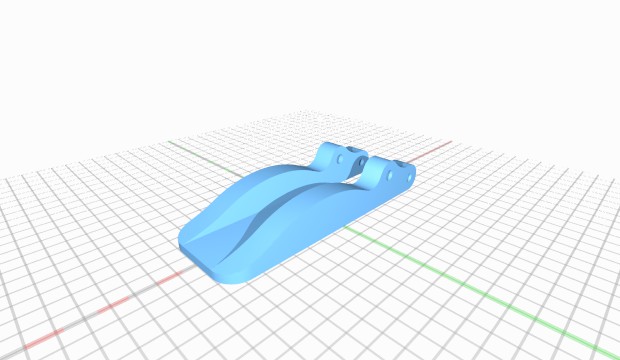

arm.stl155533 kB10 months ago Download

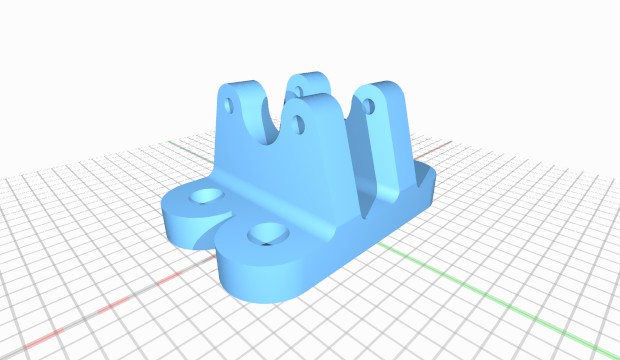

base.stl163265 kB10 months ago Download
handle.stl153121 kB10 months ago Download

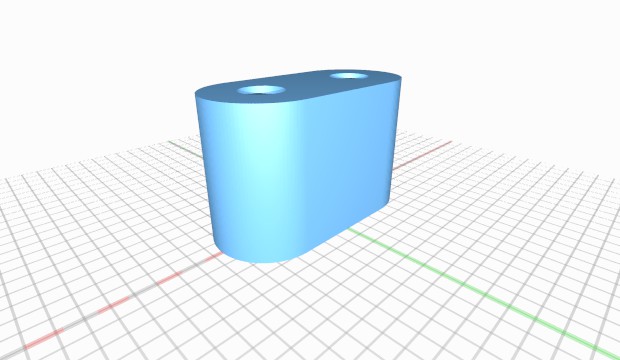

link.stl14398 kB10 months ago Download

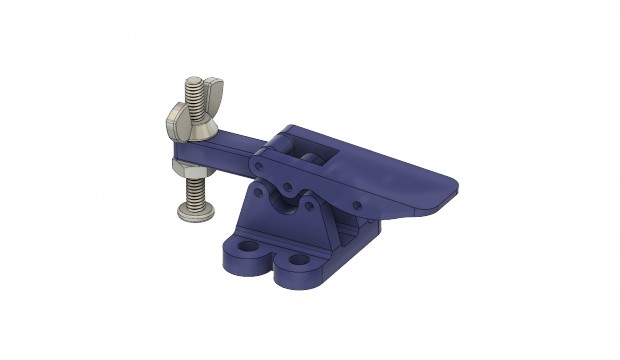

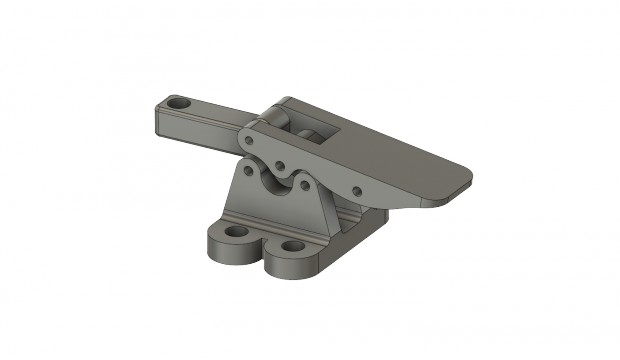

assembly v5.png134198 kB10 months ago Download
Description
This is a small hold down clamp I design from a photo, used for clamping material down to my cnc router, need a low profile clamp for clearance.
Instructions
Print all parts, I use small pieces of filament for the joints, you might have to clean the holes up with a small drill for the filament to slide in, cut the pieces of filament a little longer than needed, then take a solder iron to melt the ends. print with whatever material you like, I use glass reinforced PETG and they are strong. I use a 8-32 screw with for the hold down end with nut and wing nut for adjustment. as shown in image,
