Box with snap on cover for Wemos Lolin ESP32 OLED
alfafoxtrot
FilenameDownloadsSizeUploaded
20190822_133601.jpg7455 kB3 weeks ago Download

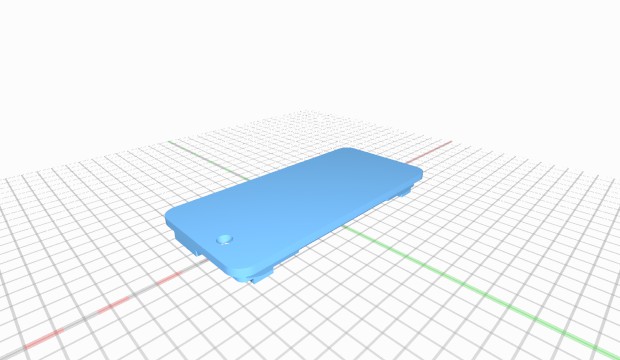

esp32_oled_cover_param.stl730 kB3 weeks ago Download

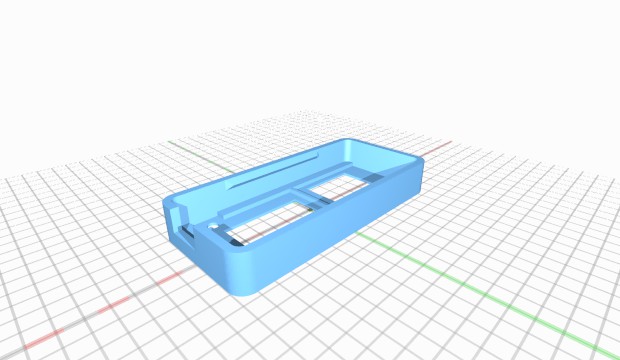

esp32_oled_box_param.stl728 kB3 weeks ago Download
esp32_param_box_v7.f3d7372 kB3 weeks ago Download
20190822_134031.jpg7460 kB3 weeks ago Download
Description

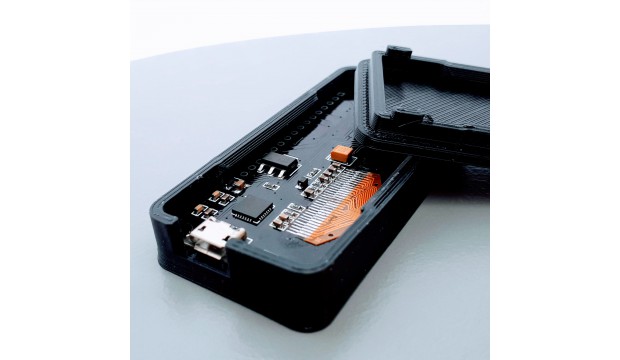

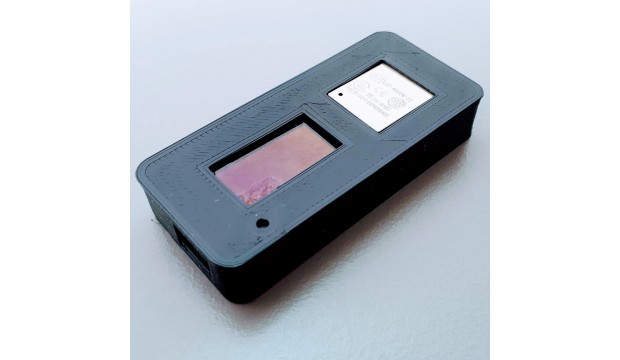

This is a box for an Wemos Lolin ESP32 board with OLED display such as you get them from ebay or Banggood for very cheap. I took the internal features from https://www.thingiverse.com/thing:3222000, moved things around a bit and added holes for reset buttons that my board has. Also, this box is designed with a pretty sturdy snap-on lid as shown in this very nice tutorial: https://www.youtube.com/watch?v=VVmOtM60VWw It's a bit of a tight fit for the ESP board so it takes a little force to get the board in and out, but on the plus side, it does not move around in the case at all. I also included the Fusion360 file of the project, so you can adapt the design if you need to.
License
Attribution - Creative Commons
