Laser Height Reference Calibration Tool Opt Lasers Grav
11. laser height reference calibration tool opt lasers grav.stl55926 kBon 26/11/20 Download
11. laser height reference calibration tool opt lasers.png55960 kBon 26/11/20 Download

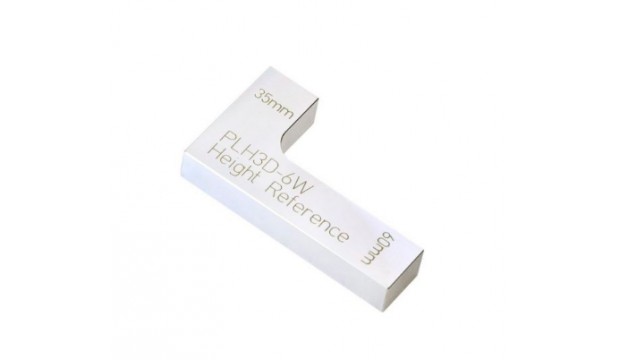

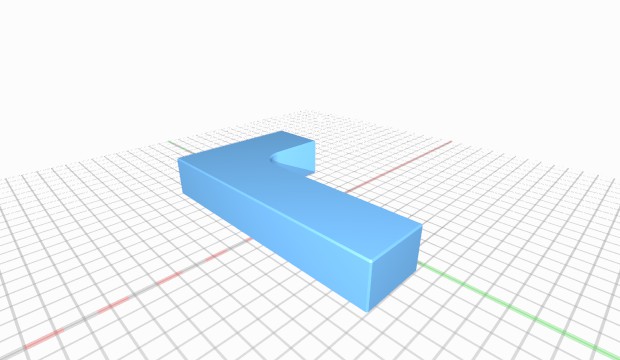

The following step file spawns a Laser Height Reference Calibration Tool. This tool can then be used to adjust the position of an engraving and cutting laser head, mounted on your CNC machine or a 3D printer, to 60 or 35 mm from the working plane. This tool has been designed to work with blue engraving and cutting lasers from Opt Lasers. The original file can also be obtained at:
To find out more about the engraving and cutting laser heads, this item was designed to work with, take a look at the following page:
Attribution - Creative Commons
