Rostock MAX easy led light ring.
coyotechaser
| Filename | Downloads | Size | Uploaded | |
|---|---|---|---|---|

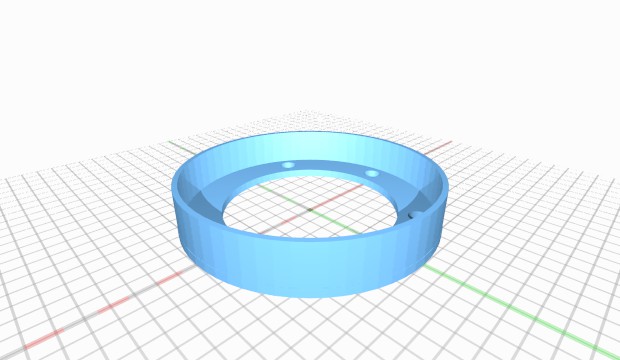

| Led Light ring strip mount.stl | 1164 | 558 kB | on 15/12/13 | Download |
| cableback.jpg | 1196 | 83 kB | on 15/12/13 | Download |
| underview.jpg | 1209 | 102 kB | on 15/12/13 | Download |
| raisedside.jpg | 1220 | 106 kB | on 15/12/13 | Download |
| zerohieght.jpg | 1217 | 107 kB | on 15/12/13 | Download |
| Clearance.jpg | 1218 | 81 kB | on 15/12/13 | Download |
Description
I made this ring because I didn't have any loose 1watt leds but I have plenty of the led light strips. So that is what I used.

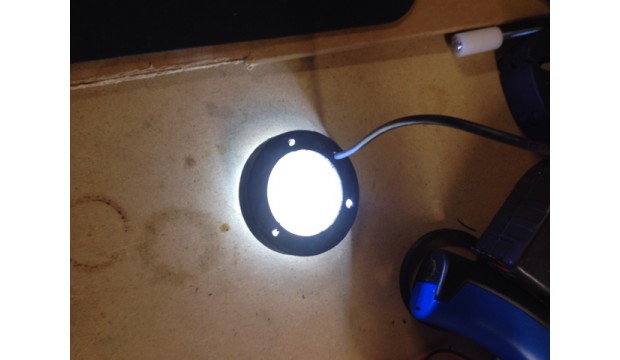

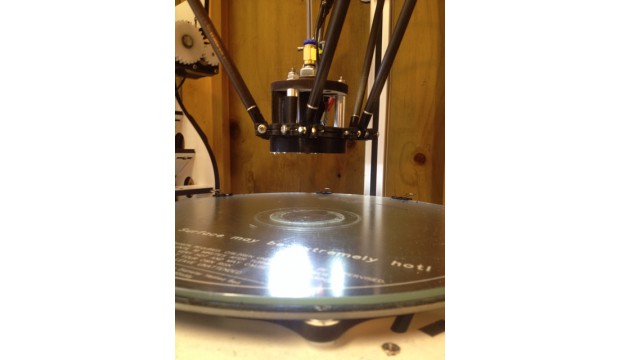

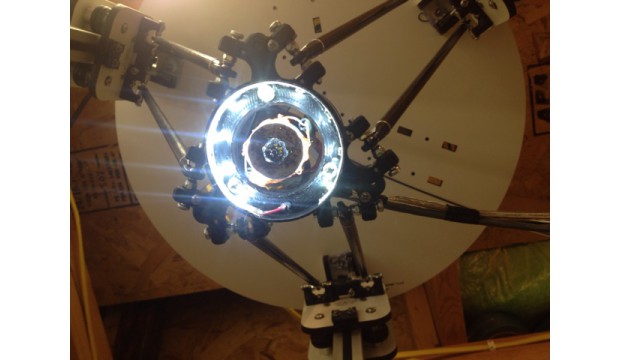

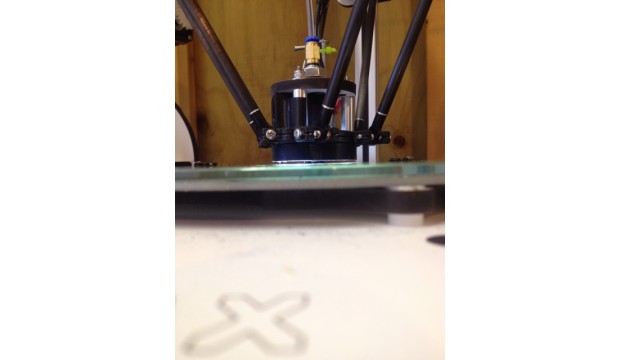

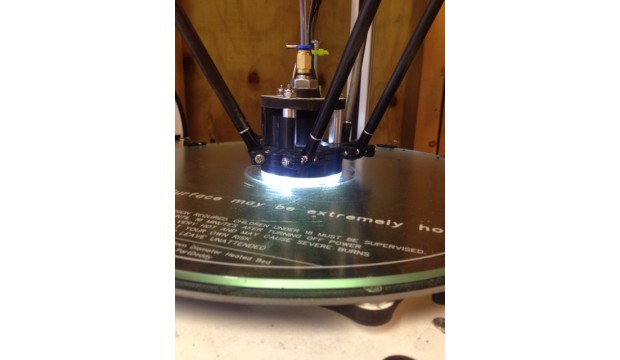

Ring fits on bottom of platform with one extra hole to run wires through. My hot end still has 2mm to surface below the light ring, so I am not worried about impact. Also the light ring as designed only lights the surface of the part and I can look at it without being blinded. Not too much light but enough too see well.
Instructions
Printed file in ABS, then used the below. and some 20ga 2 conductor stranded wire
Led Light Strip 12v 300smd leds (16ft roll)
Cut off 3 sections (6") of the roll and then secured it on the inside of the ring with Loctite Go2 Glue (Higher temp tolerance)
http://www.amazon.com/Strip-light-Waterproof-Flexible-Light/dp/B005EHHLD8/ref=sr_1_2?ie=UTF8&qid=1387130459&sr=8-2&keywords=led+light+strips
License
Attribution - Share Alike - Creative Commons
