Dual E3D Mount for Rostock MAX
dpmacri
Full Name Dean Macri
Location Beaverton, Oregon
FilenameDownloadsSizeUploaded

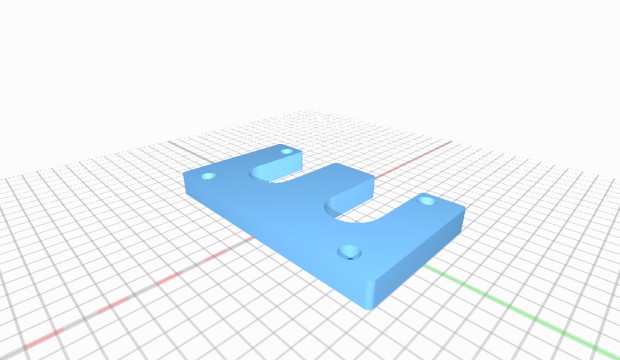

Dual E3D Mount - J-head part.stl115544 kBon 2/1/14 Download

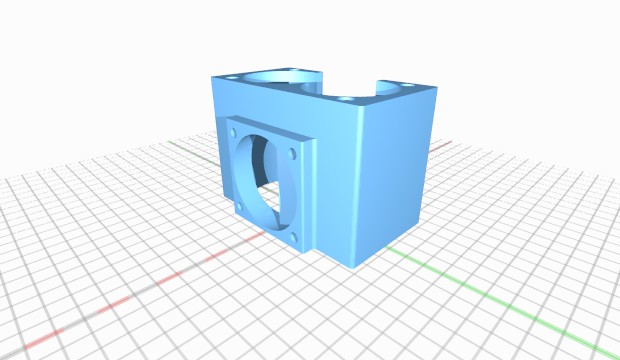

Dual E3D Mount - main part.stl1104137 kBon 2/1/14 Download

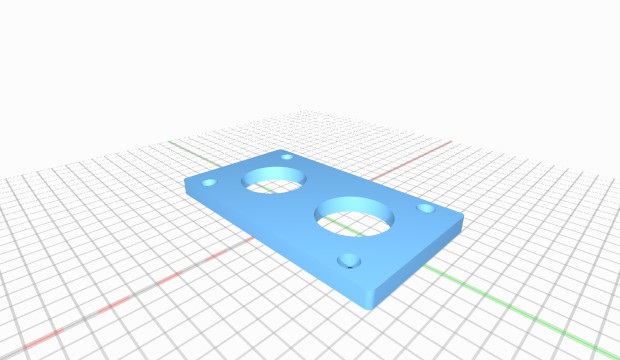

Dual E3D Mount - top part.stl114953 kBon 2/1/14 Download
Dual E3D Mount Complete 2.FCStd1016510 kBon 2/1/14 Download
Description
This is a mount for attaching two E3D hot-ends to a Rostock MAX under the platform carriage. I assume it will work for an Orion as well.
Instructions
Print the 3 parts in ABS. I used four 3" #6-32 screws to attach but I believe 2.5" screws will work as well. I also used the fan from one of the E3D hot-ends and temperatures seem fine where I tested them with both hot-ends at ~240C.
License
Attribution - Share Alike - Creative Commons
