LED strip exclusion strip for ORION
FilenameDownloadsSizeUploaded
LED Strip extrusion clip.stl54716 kBon 2/2/14 Download
IMG_20140131_191731.jpg597227 kBon 2/2/14 Download
LED Strip extrusion clip.FCStd42643 kBon 2/2/14 Download
Description

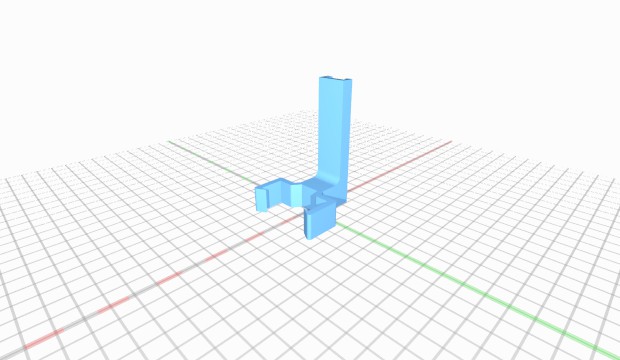

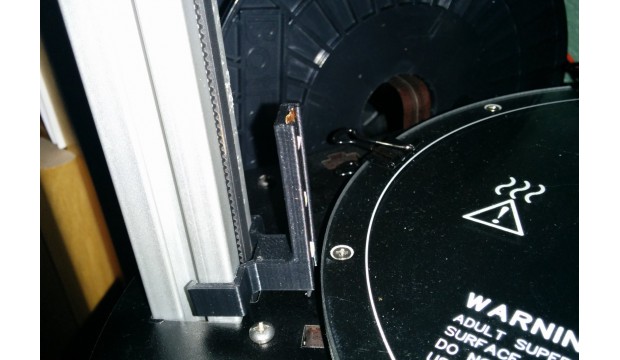

This is a short extrusion clip used to mount common LED strips to the uprights of the ORION printer. The ORION uses 25.4mm (1in) square extrusions. If the Rostock Max also uses those extrusions, it will also fit the Rostock Max. The strips are spaced out forward enough to clear the Cheapskate bearings.
Instructions
1. Print two of these clips 2. Clip to uprights 3. Slide LED strips into the groove from the bottom
License
Attribution - Share Alike - Creative Commons
