Geeetech.com Graphic LCD Enclosure
Rhys
| Filename | Downloads | Size | Uploaded | |
|---|---|---|---|---|

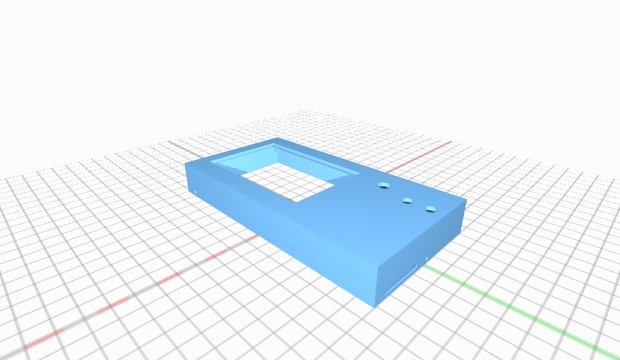

| LCD Box.stl | 1163 | 426 kB | on 12/3/14 | Download |

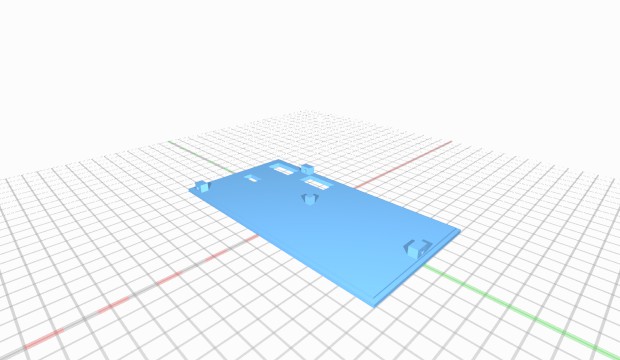

| LCD Base Plate.stl | 1198 | 233 kB | on 12/3/14 | Download |

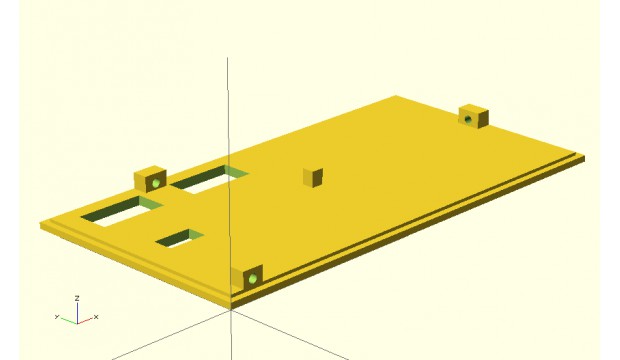

| LCD Base Plate.scad | 1237 | 974 bytes | on 12/3/14 | Download |

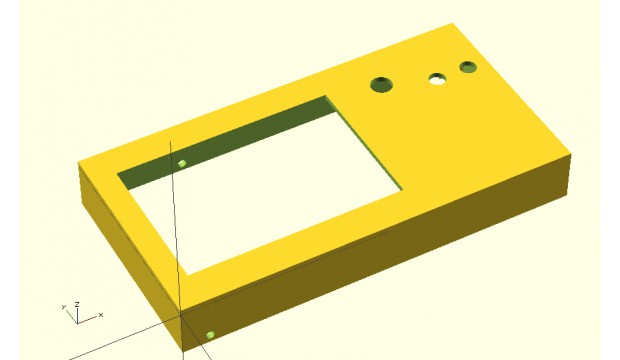

| LCD Box.scad | 1194 | 1 kB | on 12/3/14 | Download |
| LCD Base Plate.png | 1268 | 9 kB | on 12/3/14 | Download |
| LCD Box.png | 1264 | 11 kB | on 12/3/14 | Download |
| 2014-03-12 09.33.42.jpg | 1485 | 424 kB | on 12/3/14 | Download |
| 2014-03-12 09.34.15.jpg | 1230 | 454 kB | on 12/3/14 | Download |
Description

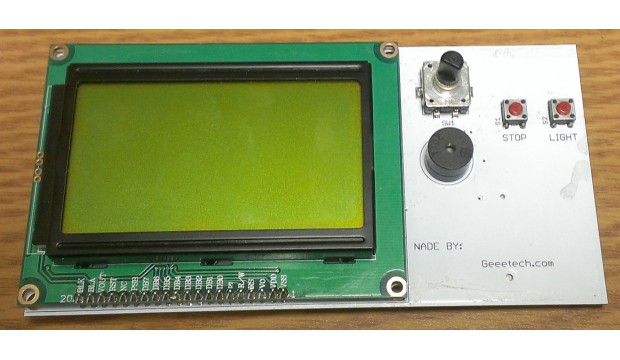

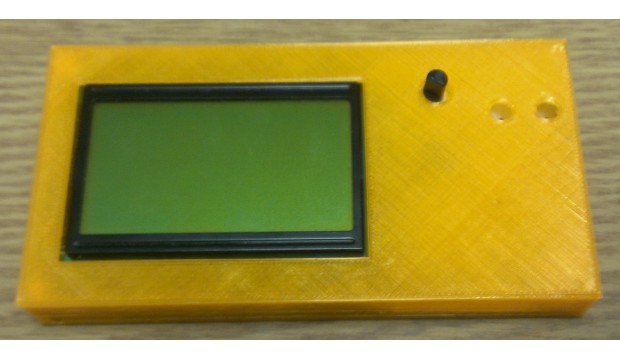

This is an enclosure for the Geetech.com full graphic LCD. I'm still working on where/how to mount this on a Prusa i3 frame, but this should work as is as a loose standalone enclosure. I will be adding button extensions for the stop and light buttons as well.
License
Attribution - Share Alike - Creative Commons
