Prusa i3 Box Frame Cooling Fan Assembly
wolfchild
Full Name Thomas Thiel
Location Grafschaft, Germany
FilenameDownloadsSizeUploaded
2014-03-03_fan_holder_i3_box_12mm.stl1106127 kBon 18/3/14 Download
2014-03-03_92mm_fan_frame_double.stl1085103 kBon 18/3/14 Download
Description

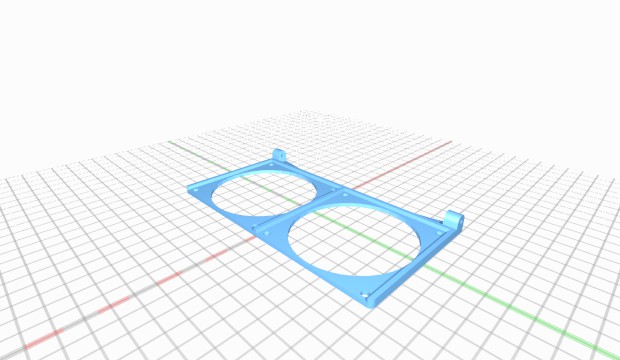

This is a self made assembly for two 92,5mm fans. It is designed to be attached to the wooden box frame of a Prusa i3, built with 12mm wood slates.
Instructions

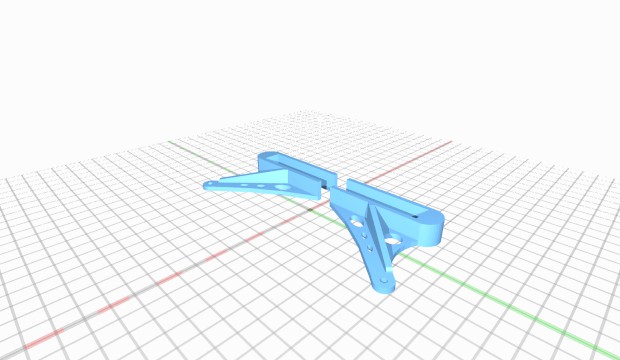

Print it out, use M3 screws to attach the holders to the frame. Add the fans with fitting screws.
License
Attribution - Non-Commercial - Creative Commons
