Modular HDD Rack
Skylinc
Location
Johannesburg, South Africa
| Filename | Downloads | Size | Uploaded | |
|---|---|---|---|---|

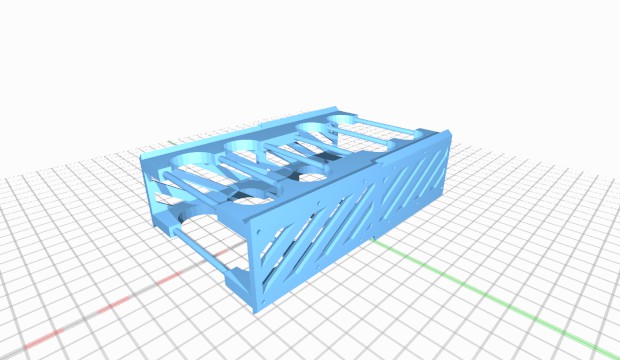

| Thingi_004 - HDD Stand, Modular, Minimal_Assembled For Preview.stl | 2373 | 375 kB | on 28/4/14 | Download |
| Thingi_004 - HDD Stand, Modular, Minimal_Assembled For Preview.png | 2600 | 77 kB | on 28/4/14 | Download |
| Thingi_004 - HDD Stand, Modular, Minimal.skp | 2342 | 218 kB | on 28/4/14 | Download |
| Thingi_004 - HDD Stand, Modular, Minimal_Long Bars.skp | 2299 | 130 kB | on 28/4/14 | Download |
| Thingi_004 - HDD Stand, Modular, Minimal_Short Bars.skp | 2358 | 123 kB | on 28/4/14 | Download |
Description
First, a warning! I don't own a 3D printer yet. Mine only arrives in February. So this has not been printed!! (If you print it, please let me know if it works out)

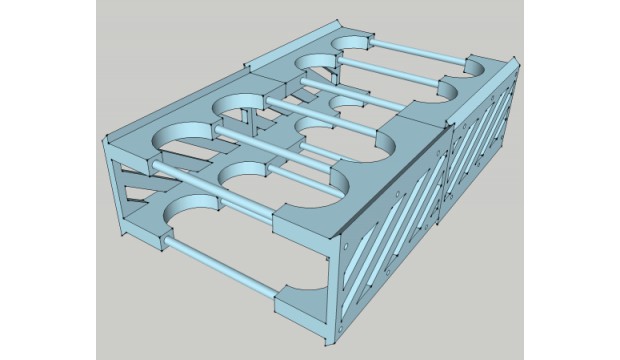

A modular racking system for external hard drives. Should be stack-able without slipping off, and allow for enough airflow to not overheat the hard drives.
The main thing will be modified in V2 to allow an external HDD to stand upright on it's own.
The only source files at the moment are SKP files. Sorry.
Instructions
Printing:
Print 4 of the main object.
Print 4 of the short bars.
Print 12 of the long bars.
Create 2 sides.
Connect 2 sets of the main objects using 2 short bars in the side holes.
Insert the long bars into each of the 2 sides to connect.
License
Attribution - Non-Commercial - Creative Commons
