Triplestruder
RifRaf
| Filename | Downloads | Size | Uploaded | |
|---|---|---|---|---|
| triplestruder.jpg | 1898 | 126 kB | on 26/5/14 | Download |

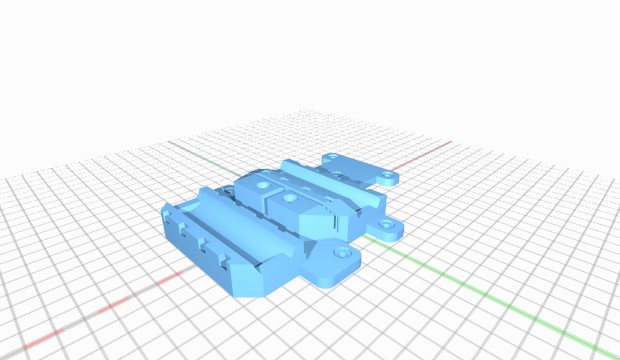

| x-carriage-3x3mm-Nema14.stl | 1533 | 775 kB | on 26/5/14 | Download |

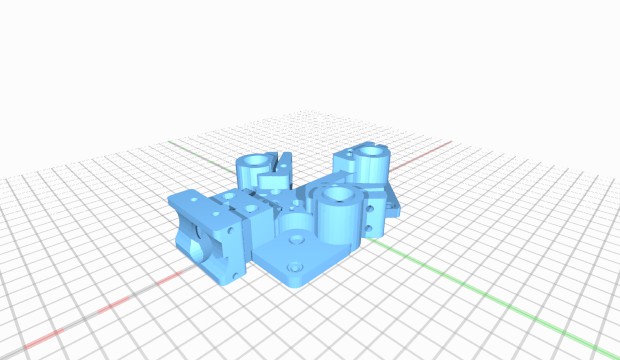

| triplestruder-3mm.stl | 1640 | 4 MB | on 26/5/14 | Download |

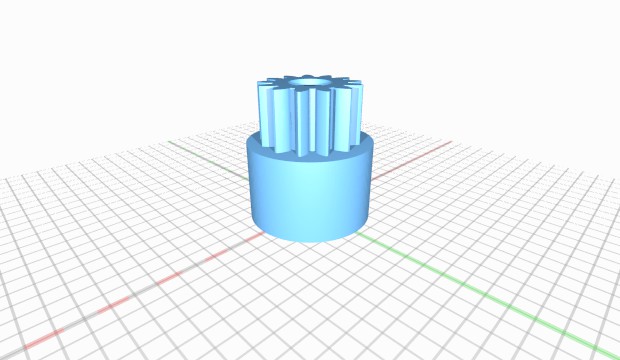

| smallgear.stl | 1623 | 851 kB | on 26/5/14 | Download |

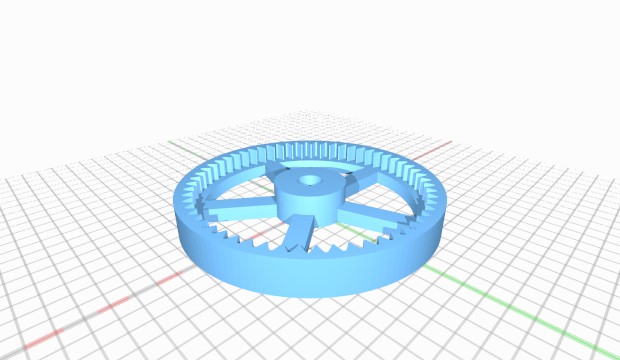

| largegear59teeth.stl | 1556 | 3.2 MB | on 26/5/14 | Download |

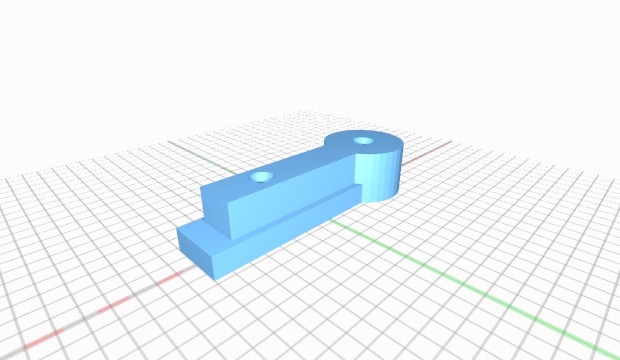

| thing.stl | 1634 | 173 kB | on 26/5/14 | Download |
| thing.scad | 1425 | 487 bytes | on 26/5/14 | Download |
| dual.jpg | 1838 | 115 kB | on 26/5/14 | Download |
| hobbsetup.jpg | 1221 | 105 kB | on 3/6/14 | Download |
| _1019055 (large).jpg | 1224 | 219 kB | on 3/6/14 | Download |
Description

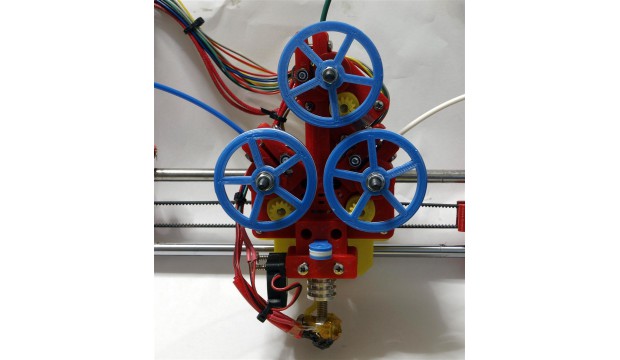

3 Filament auto changing extruder.
X carriage designed to fit prusa i3
Am using Aluhotend, Jhead or similar will fit as well
Instructions
Hobbed bolt is cut down M5 bolt with TL 5mm bore hobb on it
requires 6 x 605 bearings and 3 x 624 bearings and some M5 flat washers and nuts
License
Attribution - Creative Commons
