Traditional Fan for the last of the summer
RichRap
| Filename | Downloads | Size | Uploaded | |
|---|---|---|---|---|

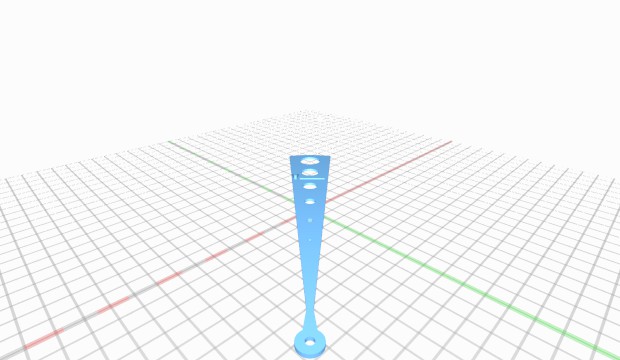

| fan4_175mm.stl | 1121 | 63 kB | on 30/5/14 | Download |
| fan_scaled_004_175mm.skp | 1114 | 208 kB | on 30/5/14 | Download |
| fan_pin_display_large_display_large.jpg | 1170 | 340 kB | on 30/5/14 | Download |

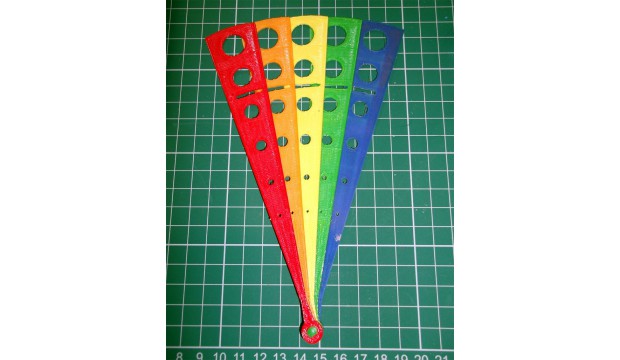

| fan_open_display_large_display_large.jpg | 1179 | 409 kB | on 30/5/14 | Download |

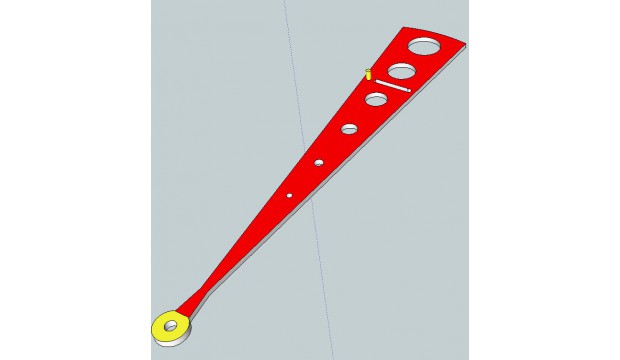

| fan_3d_model_display_large_display_large.jpg | 1205 | 64 kB | on 30/5/14 | Download |
Description
This is a old style fan that is designed to be printed out and fixed together
Instructions
Print it out lots of times in multiple colours if you like, then join them together using a lighter or heat-gun to heat up the locking pins and squash down to lock.

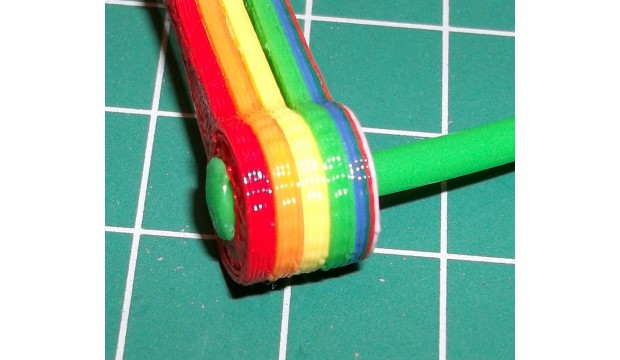

The hinge pin is a section of 3mm filament, just melted at each end to hold it in place. The sliding tabs are also fitted in place with melted tops to hold it all together.
License
Attribution - Share Alike - Creative Commons
