The Long Plunge
theshort
Location
Salt Lake City
| Filename | Downloads | Size | Uploaded | |
|---|---|---|---|---|

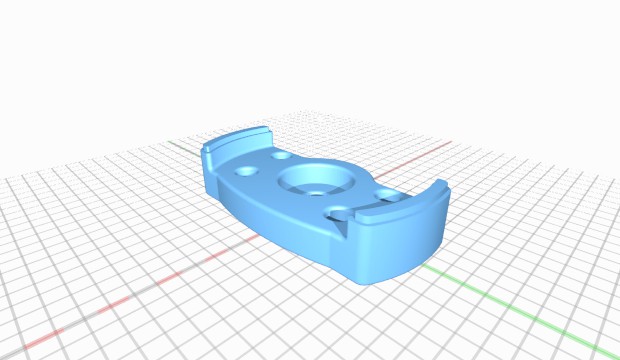

| Final_10CC_Plate.stl | 1364 | 501 kB | on 30/5/14 | Download |
| Final_Assembly_display_large.jpg | 1564 | 24 kB | on 30/5/14 | Download |
| Final_Base_V1.stl | 1379 | 7.6 MB | on 30/5/14 | Download |
| Final_Middle_V1.stl | 1449 | 6.7 MB | on 30/5/14 | Download |

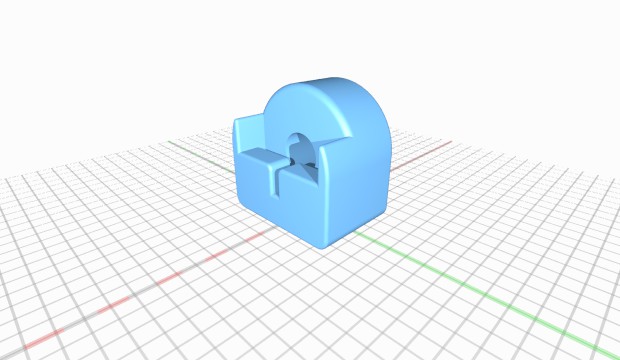

| Final_Plunger_V1.stl | 1339 | 3.2 MB | on 30/5/14 | Download |
| Final_Top_V1.stl | 1352 | 7.8 MB | on 30/5/14 | Download |
| Paste_Gears_2_display_large.jpg | 1677 | 85 kB | on 30/5/14 | Download |
| WP_20131224_001_display_large.jpg | 1639 | 92 kB | on 30/5/14 | Download |
| WP_20131231_005_display_large.jpg | 1768 | 146 kB | on 30/5/14 | Download |
| WP_20131231_006_display_large.jpg | 1602 | 140 kB | on 30/5/14 | Download |
| WP_20140101_005_display_large.jpg | 1677 | 196 kB | on 30/5/14 | Download |
| WP_20140101_006_display_large.jpg | 1659 | 185 kB | on 30/5/14 | Download |
Description
I want to start with attributions to the inspiration of this extruder to keesj for http://www.thingiverse.com/thing:181833.

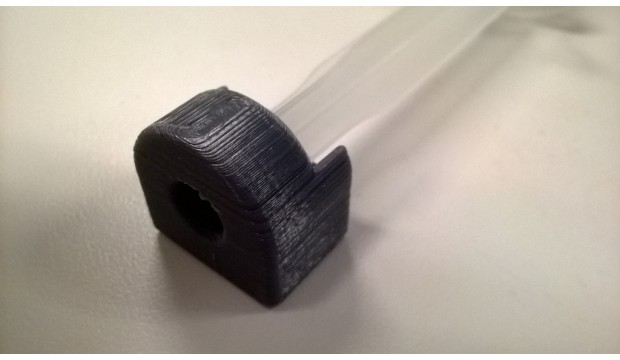

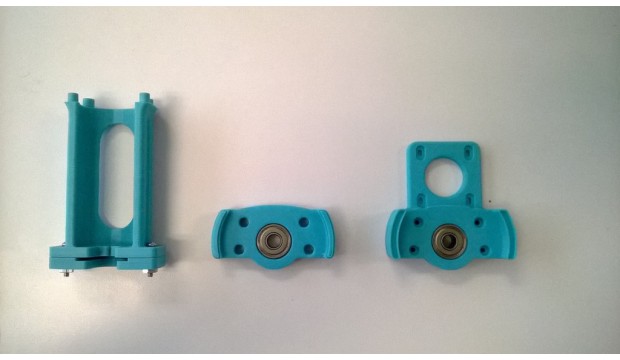

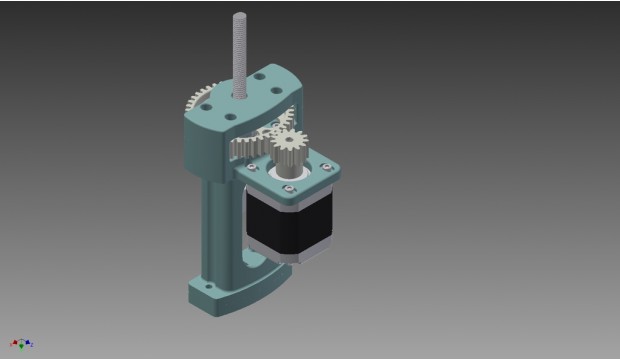

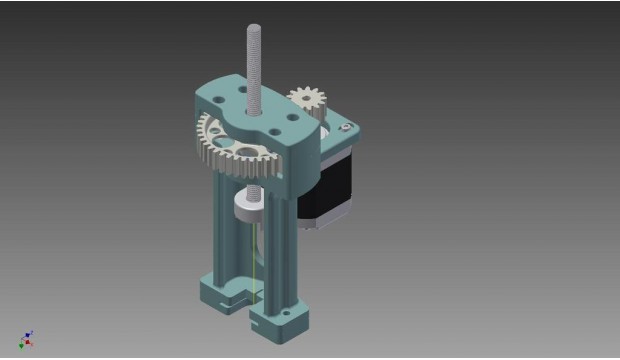

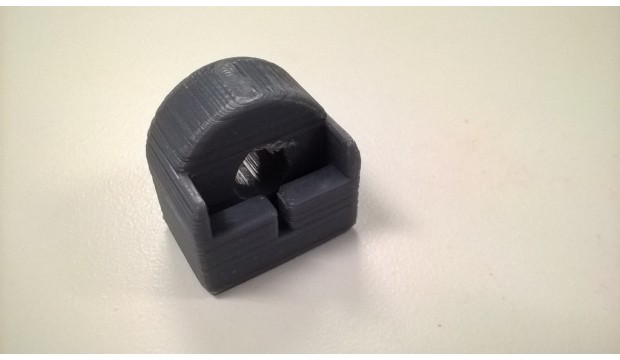

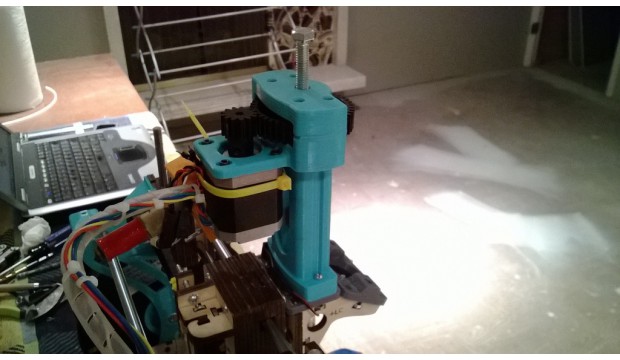

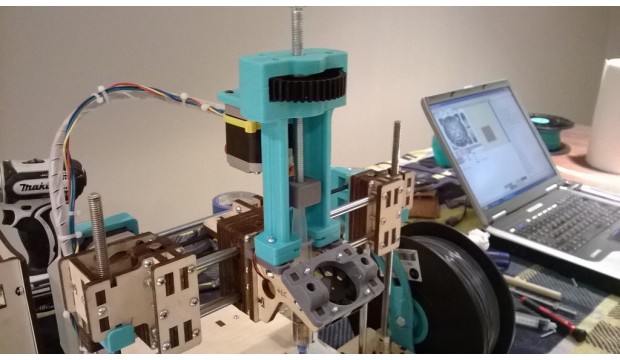

This is a major work in progress. Plunger style paste extruder. I thought I would throw this on here and see if anyone else wants to play. The tolerances of the parts are very close. Requires a well calibrated machine. Designed to fit a 10cc syringe, future plans for bigger capacity. The plunger mechanism is designed to hold the injection molded printrbot extruder gears. I have not had time to test the torque. I will update when I figure this out.
License
Attribution - Creative Commons
