E3D V6 Dial Indicator Mount (heathenx)
heathenx
Full Name heathenx
Location Somewhere, Indiana
FilenameDownloadsSizeUploaded
e3d_dial_indicator_mount_01.stl1043258 kBon 23/6/14 Download
e3d_dial_indicator_mount_01.stp1158101 kBon 23/6/14 Download
e3d_dial_indicator_mount_01.jpg13443.5 MBon 23/6/14 Download
Description

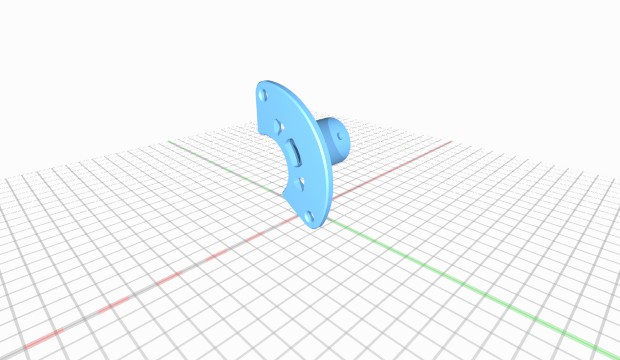

This is a dial indicator mount for my E3D V6 mount found here (http://repables.com/r/338/).
Instructions

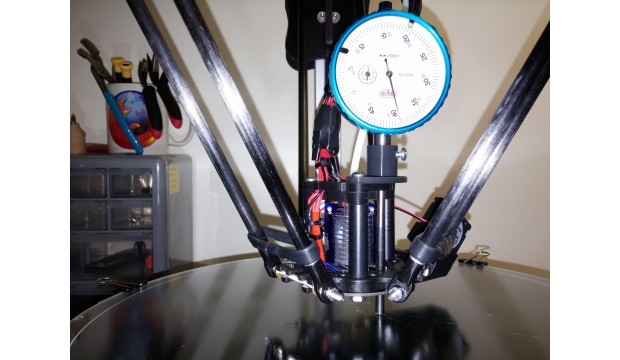

If you are using this mount then you will need (2) #6-32" x 2-1/2" long machine screws cut down to about 2-3/8" or a little less. Plus, I bought a 4" dial indicator extension that I cut down to size. Length is up to you. Finally, you will need to tap the small set screw hole on the cylinder. I used a #6-32. Printed mine in PLA for a rigid part.
License
Attribution - Creative Commons
