EZFlexStruder
Nyl0cke
| Filename | Downloads | Size | Uploaded | |
|---|---|---|---|---|
| 2014-12-17 20.43.31.jpg | 6298 | 1.8 MB | on 22/12/14 | Download |
| 2014-12-17 20.41.55.jpg | 6450 | 1.7 MB | on 22/12/14 | Download |
| 2014-12-18 07.55.32.jpg | 6533 | 1.8 MB | on 22/12/14 | Download |

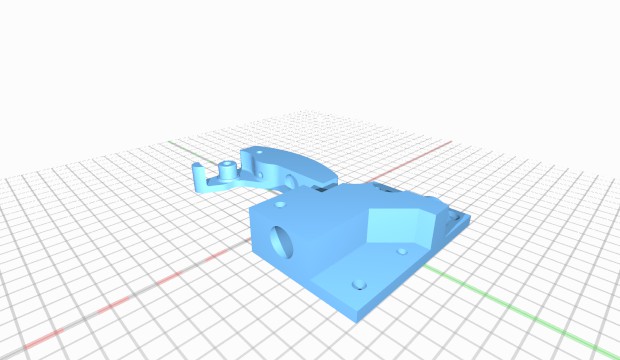

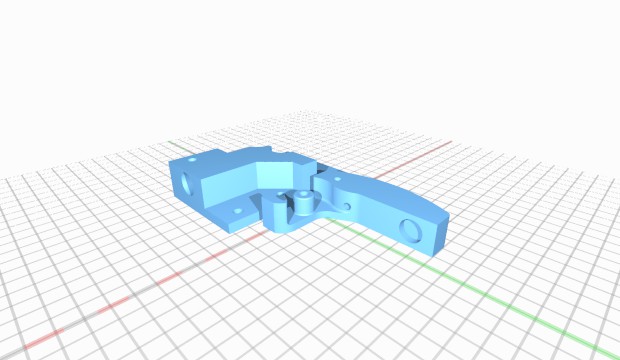

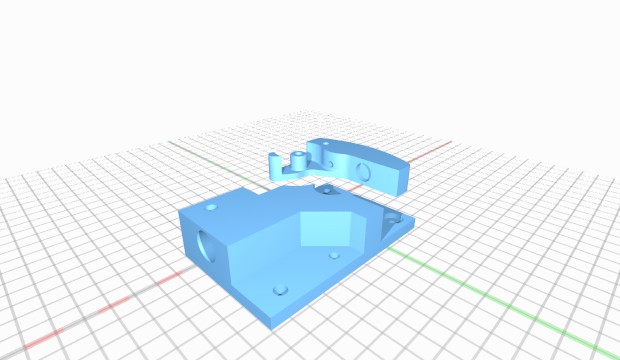

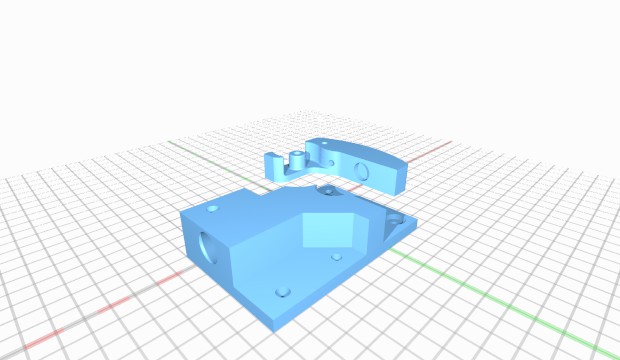

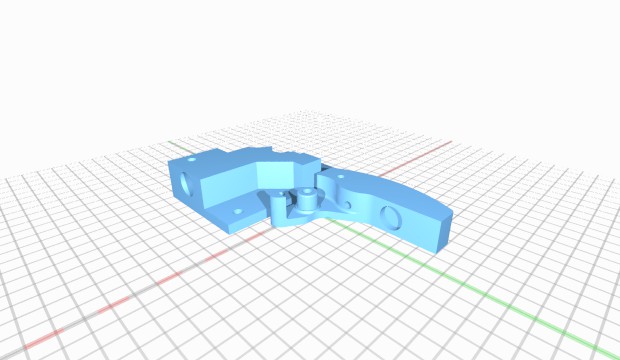

| ezflexstruder7.7.stl | 1014 | 378 kB | on 3/2/15 | Download |
| ezflexstruder.f3d | 950 | 250 kB | on 3/2/15 | Download |
| ezflexstruderarm.f3d | 991 | 287 kB | on 3/2/15 | Download |
Description

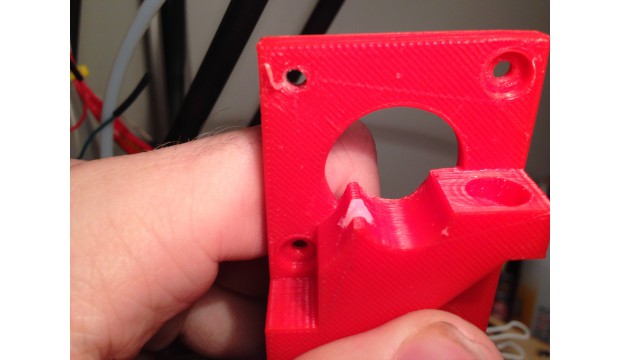

An extruder design based on the SeeMeCNC EZStruder. It constrains the filament from the drive gear all the way to the hotend so flexibles should work very well.
Instructions

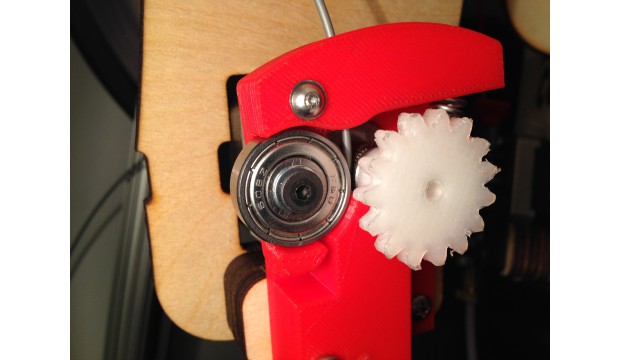

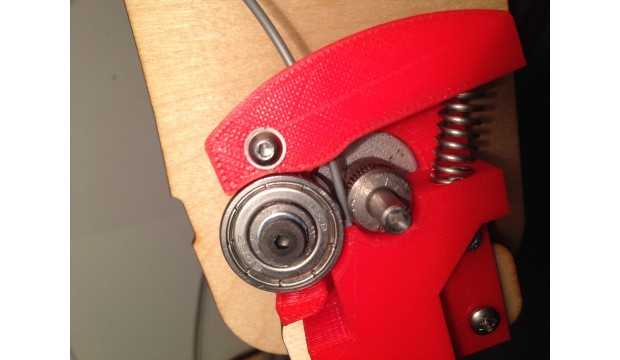

It uses SeeMeCNC's drive gear, but any 12mm OD drive gear should work if you line it up properly. The spring from the EZStruder is meant to be used for the arm. The bearing that attaches to the arm is a 608 and it gets fastened by an M4 bolt and washer combo. It is designed to use a PTC connector that E3d provides that allows the PTFE tube to go right up to the drive gear.
This is R7.7. Original design release was R3. I have made changes that should improve the ability to use TPU type filaments (Ninjaflex, Filaflex, etc)
The Arm file is inverted. You will have to invert it if you modify the F3D file and export it to STL.
More details and an assembly guide are located here: http://forum.seemecnc.com/viewtopic.php?f=35&t=7416
License
Attribution - Share Alike - Creative Commons
