Rostock MAX v2 belt clamp model
bvandiepenbos
| Filename | Downloads | Size | Uploaded | |
|---|---|---|---|---|
| Rostock MAX v2 Laser cut belt clamp.stl | 1924 | 132 kB | on 24/12/14 | Download |
| rostock max v2 laser cut belt clamp(offset.19mm).stl | 1196 | 81 kB | on 24/12/14 | Download |
| rostock max v2 laser cut belt clamp(offset.19mm).pdf | 1247 | 6 kB | on 24/12/14 | Download |
| rostock max v2 laser cut belt clamp.pdf | 1218 | 379 kB | on 24/12/14 | Download |
Description

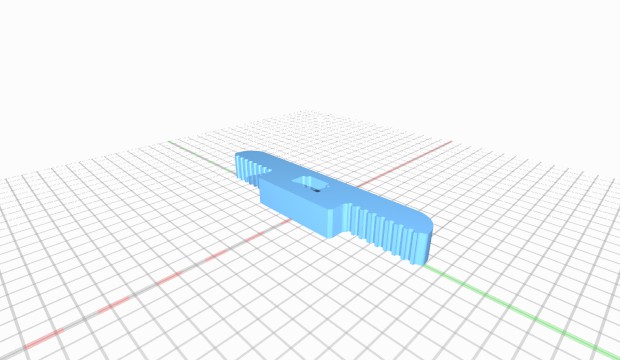

This .stl model was created from the .dxf file used to laser cut the original melamine wood part.
Note: has NOT been test printed yet.
model was made same thickness as melamine wood .270" (6.86 mm)
model size is 60 x 12.7 x 6.86 mm
Instructions
edit: added file with .19 mm offset per side to simulate laser cut kerf.
this part may fit better when 3D printed.
size now is 59.62 x 12.32 x 6.86 mm
added .pdf files also, if anyone wants just the vector profile shape.
