40mm Layer Fan Nozzle with printing support
ss (2015-02-04 at 07.29.13).jpg625 kBon 5/2/15 Download
shroud with supports_fixed.stl63.2 MBon 10/2/15 Download

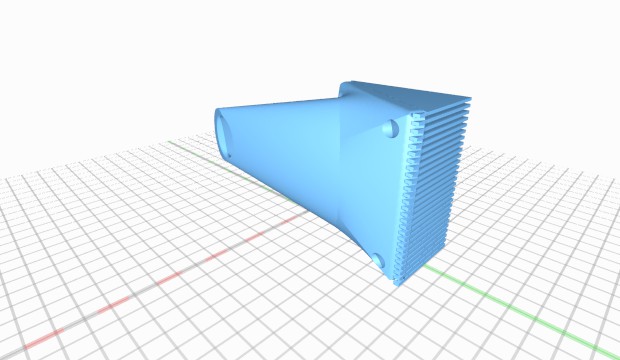

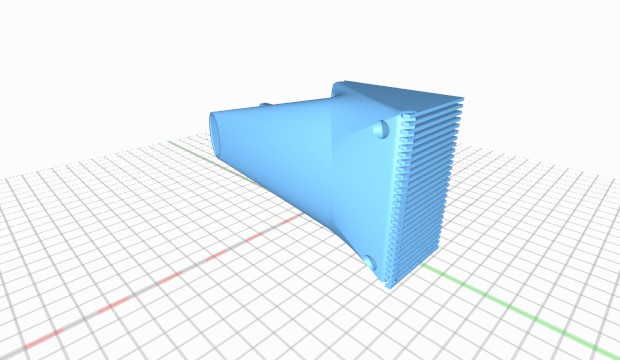

[2-9-15 v2.3: I had to fix the support because it wouldn't detach.] I took some ideas from http://www.thingiverse.com/thing:110305 and made my own version that works better with my E3D v6 and mounts easier in general. This layer fan mount fits one 40mm fan, and you can print 3 of them, one for each tab. The fan, depending on your setup, may blow a bit too much on the nozzle. My solution is to have a bit of aluminum foil carefully shrouding the nozzle and then attached with kapton tape. This prevents most of the cooling effects on the hotend while still allowing for direct airflow on filament and isn't hard to mount. Later, I may design a printable air barrier that will mount somehow around the nozzle, maybe with some LEDs. You can mount this with a single screw right on the usual mounting tab. The screw hole is sized 2.85mm for some bite with the screw. Bitbucket repo at: https://bitbucket.org/redoverred/40mm-fan-shroud-nozzle-type-for-rmv2

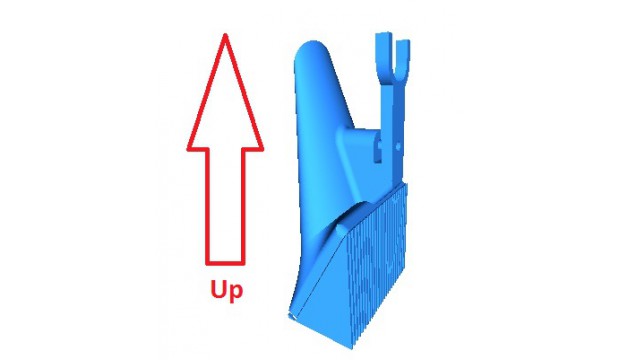

Print on the fat end with NO SUPPORT OR BRIM. Support is included already!. The support designed in this model will come off with a knife easily and without one it's just a bit harder. Model has been netfabb'ed.
Attribution - Share Alike - Creative Commons
redoverred - on 13/2/15
It takes a lot of work, but it is possible. Sorry, but it's the best I could get it to work and without them the print simply doesn't work. I use needle nose pliers to twist as much off as I can, then a hobby knife to trim off the rest and it works alright. I would print an extra or two in case one breaks while you're doing it. Feel free to download the Inventor 2015 .ipt file from the bitbucket link and submit a patch on bitbucket if you can figure it out better than I can!.
RussD - on 12/2/15
I really like this design. But the supports are very stuck to the object in my print. I can get the outer supports off but not on the inside of the fan.
