E3D v6 Mount for SeeMeCNC Rostock MAX v2
alpharic
| Filename | Downloads | Size | Uploaded | |
|---|---|---|---|---|
| Photo Feb 05, 10 23 43.jpg | 2812 | 1.4 MB | on 6/2/15 | Download |
| Photo Feb 05, 10 35 35.jpg | 2880 | 1.2 MB | on 6/2/15 | Download |
| Photo Feb 05, 13 26 05.jpg | 2807 | 1.4 MB | on 6/2/15 | Download |
| Photo Feb 05, 13 23 39.jpg | 2820 | 1.2 MB | on 6/2/15 | Download |
| e3d_mount_basic.stl | 1136 | 1.6 MB | on 13/2/15 | Download |
| e3d_mount_advanced.stl | 1098 | 1.8 MB | on 13/2/15 | Download |
| e3d_mount_03.skp | 1116 | 324 kB | on 13/2/15 | Download |
| e3d_mount_04.skp | 1080 | 358 kB | on 13/2/15 | Download |
Description
First attempt to have better looking E3D mount.... work in progress. :)
There are two version here:

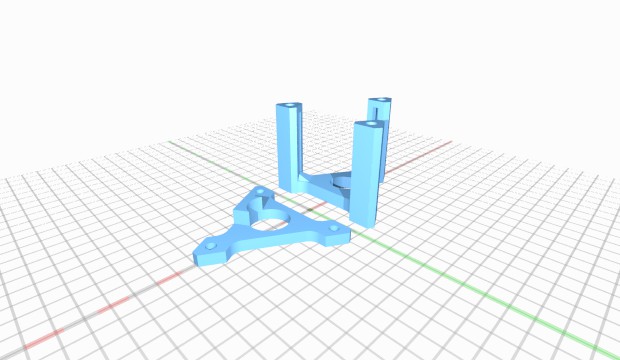

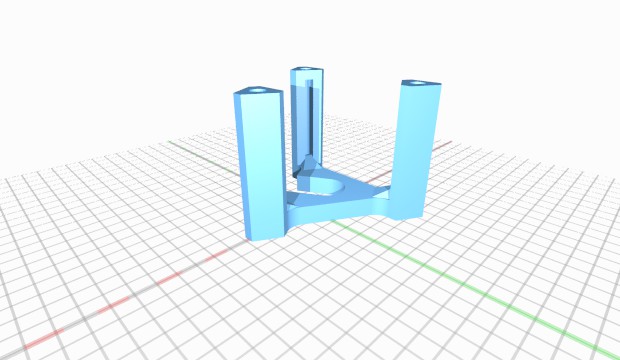

Basic is just the mount, but does not have the flaps for cable routing. Probably easier to print for some people.

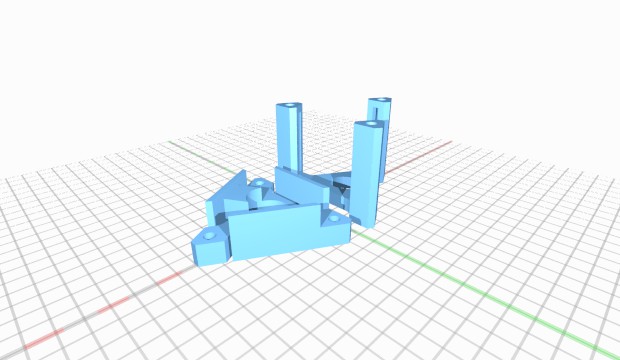

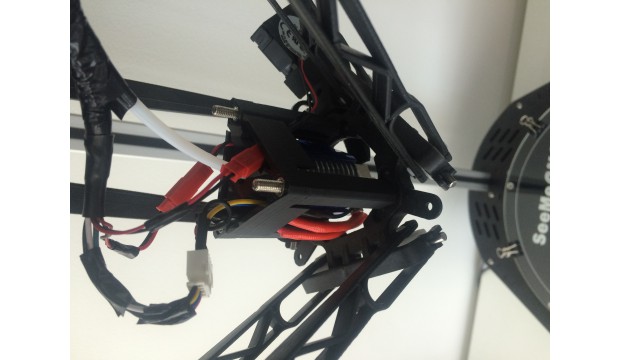

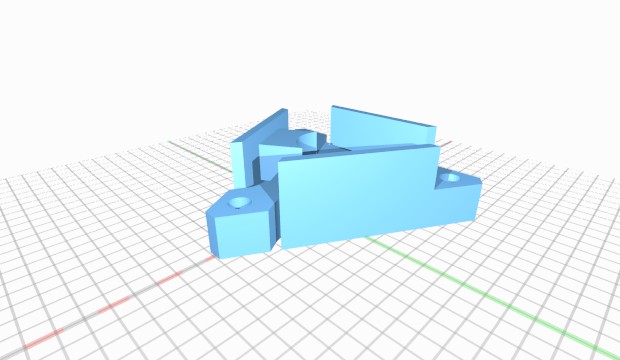

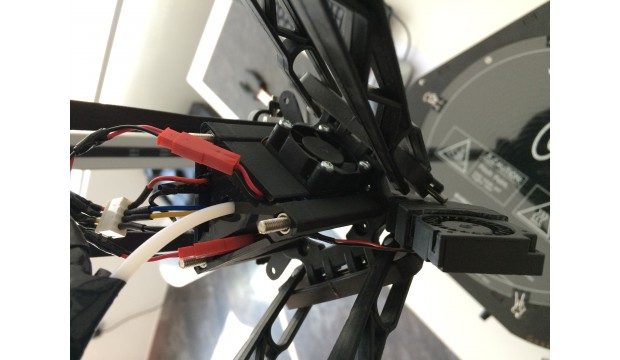

Advanced is the one I am using now, see photos.
I'm using M4 60mm screw + nut for this mount, slimmer would be better. Wanted to get some nice black hex screws, but couldn't find any. Next time...
Instructions

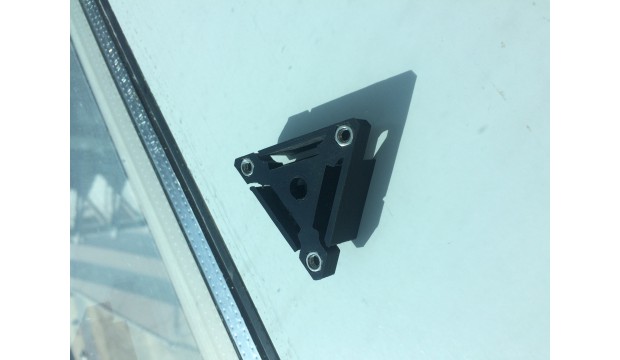

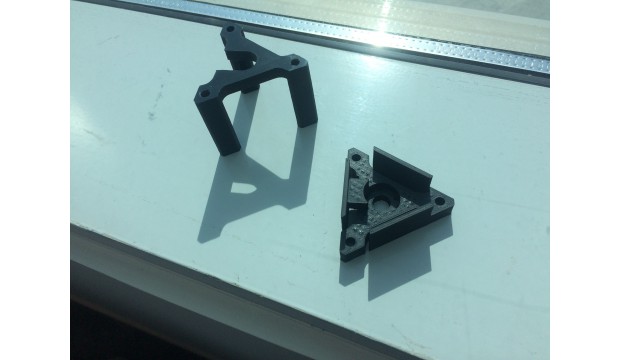

Printed mine with Black ABS using a 0.4mm Nozzle and 0.1mm layer thickness. Really like the smooth results.
