Rostock Max V2 Vented Side Panel
jimustanguitar
Full Name Jim
Location SeeMe Territory
Company yeah right
FilenameDownloadsSizeUploaded
door 1.dxf1822172 kBon 26/2/15 Download
10981397_1547931018818237_3389115997882038762_n.jpg184749 kBon 26/2/15 Download
10968436_1544310199180319_8387041589385190177_n.jpg179652 kBon 26/2/15 Download
door 1.rsdoc1770377 kBon 26/2/15 Download
Description

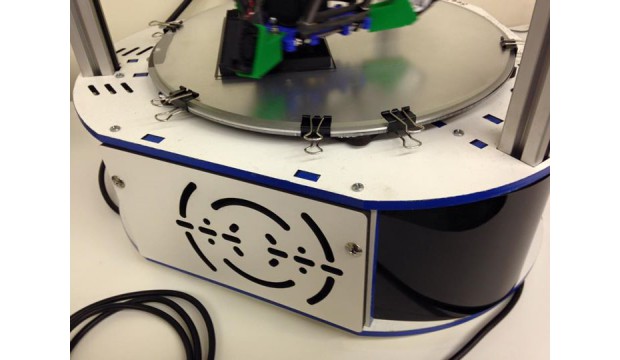

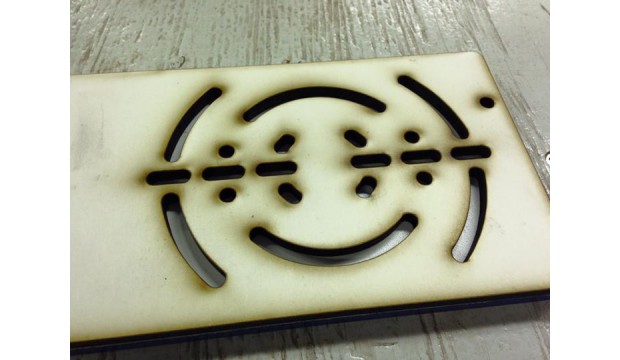

I designed these side panels to go on my Rostock Max. It's got horizontal holes for mounting things like an SSR, and it's got vent slots for airflow and cooling. I've also attached the DesignSpark file that I generated the DXF from, in case you need to modify the design.
Instructions
Lasers!
License
Attribution - Creative Commons
