Sliding power supply mounting brackets
FilenameDownloadsSizeUploaded

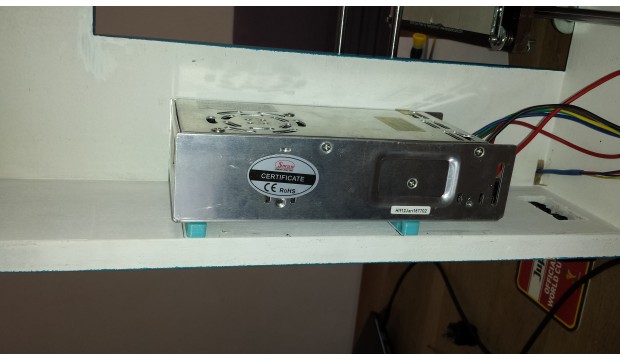

2015-04-01 16.29.59.jpg30912.2 MBon 1/4/15 Download

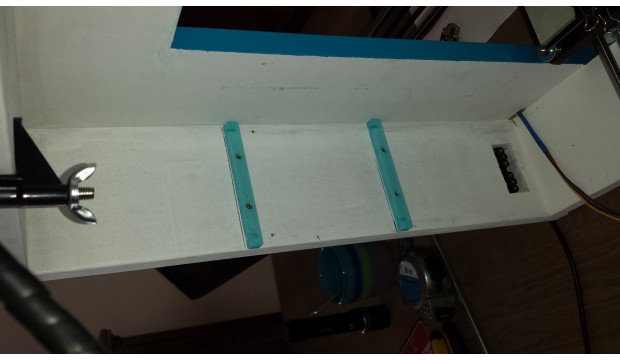

2015-04-01 16.30.15.jpg32582.6 MBon 1/4/15 Download
powerbracketv2_fixed.stl220386 kBon 3/4/15 Download

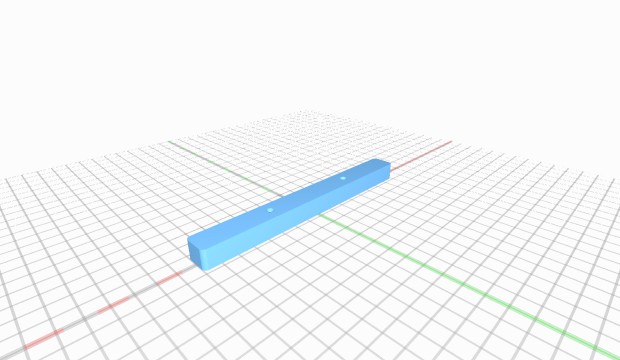

view.png232621 kBon 3/4/15 Download
Description

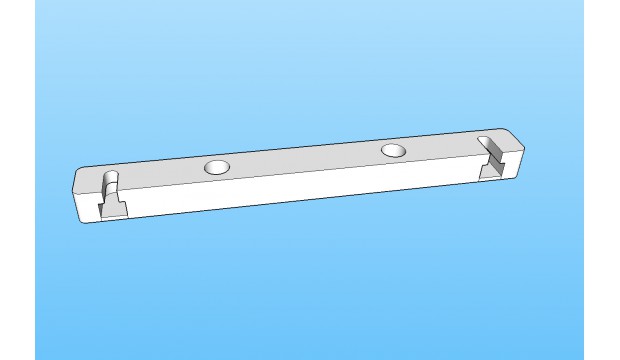

I was searching for simple brackets for my led power supply but couldn't find what I wanted. The brackets have slots for M3 socket cap screws (you need 2 brackets for the 4 tapped screw holes at the underside of your power supply). The tapped holes on my power supply are 85 mm apart.
Instructions
Print @ 0.3 layer height (important!) and 20% infill (not important). Be aware that there is some bridging required for the counter sunk screw holes. EDIT: I made a change to the design so it is easier to print the countersunk holes (added one 0.3mm support layer).
License
Attribution - Creative Commons
