PTFE Liner Guillotine
jjjohnson
| Filename | Downloads | Size | Uploaded | |
|---|---|---|---|---|
| PTFE Guillotine.jpg | 1811 | 33 kB | on 26/8/15 | Download |
| PTFE Guillotine 2.jpg | 1730 | 80 kB | on 26/8/15 | Download |

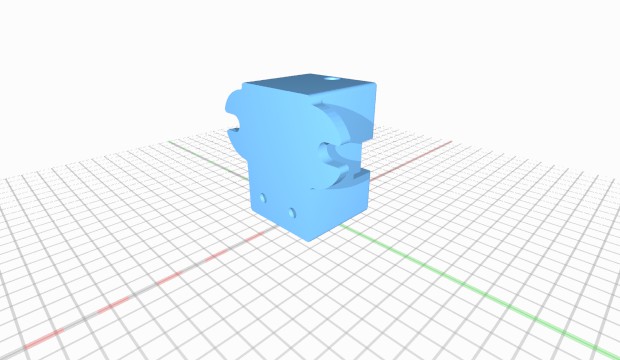

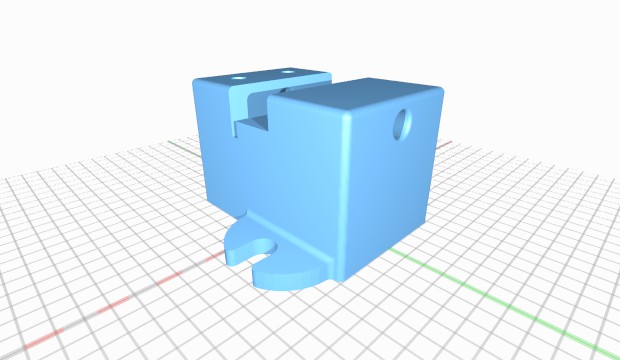

| PTFE Liner Cutter Base.sldprt | 1674 | 258 kB | on 26/8/15 | Download |

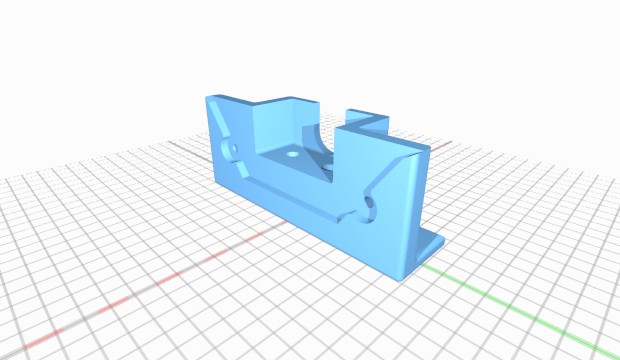

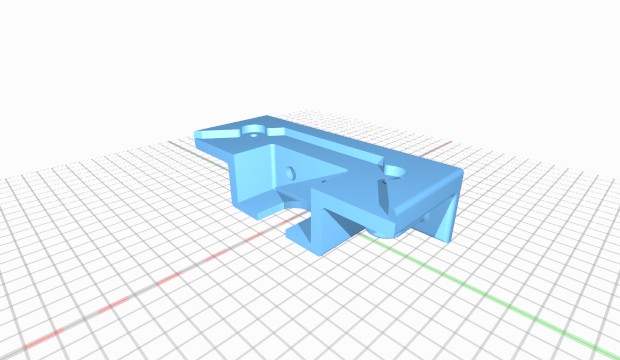

| PTFE Liner Cutter Blade Holder.sldprt | 1720 | 346 kB | on 26/8/15 | Download |
| ptfe liner cutter base.stl | 1008 | 432 kB | on 26/8/15 | Download |
| ptfe liner cutter blade holder.stl | 1020 | 473 kB | on 26/8/15 | Download |
Description

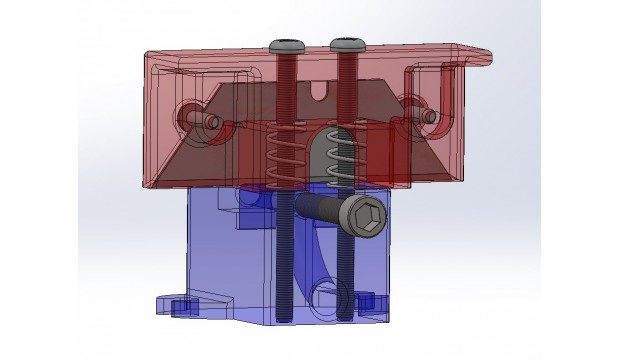

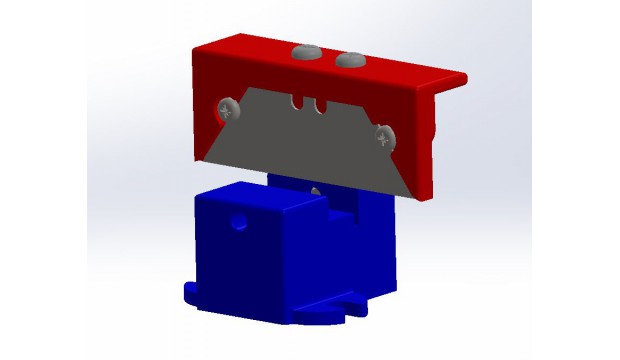

This is a fixture used to cut the PTFE liner for the SeeMeCNC hot ends. It has an adjsutable backstop so you could use it for other things.
BOM: PTFE Liner Cutter Base & PTFE Liner Cutter Blade Holder (Printed Parts), (1) Utility Knife Blade, (2) 6-32 x 2" Machine Screws, (1) 10-32 x 1" Cap Screw, (2) No 4 x 3/8" Sheet Metal Screws, and (2) Suitably sized springs
Instructions
Printing time is approximately 2.5 hours for both parts.
Source files are included in case you want to adapt this Repable
License
Attribution - Creative Commons
