Rostock MAX v2 - Spool Support Arm - Mod RL 2x 608
RMLynch
Full Name Rick Lynch
Location Ottawa, Ontario
FilenameDownloadsSizeUploaded
rostock max v2 - spool support arm - mod rl 2x 608 - 07.jpg381660 kBon 8/10/15 Download
rostock max v2 - spool support arm - mod rl 2x 608 - 08.jpg399651 kBon 8/10/15 Download
rostock max v2 - spool support arm - mod rl 2x 608 - 05.jpg402813 kBon 8/10/15 Download
rostock max v2 - spool support arm - mod rl 2x 608 - 06.jpg388868 kBon 8/10/15 Download
rostock max v2 - spool support arm - mod rl 2x 608 - 09.jpg382615 kBon 8/10/15 Download
rostock max v2 - spool support arm - mod rl 2x 608 - 10.jpg396566 kBon 8/10/15 Download
rostock max v2 - spool support arm - mod rl 2x 608 - 0.5kg - seemecnc.jpg395574 kBon 8/10/15 Download
rostock max v2 - spool support arm - mod rl 2x 608 - 1.0kg - seemecnc.jpg350580 kBon 8/10/15 Download
rostock max v2 - spool support arm - mod rl 2x 608 - 1.0lbs - taulman.jpg376570 kBon 8/10/15 Download
rostock max v2 - spool support arm - mod rl 2x 608 - 01.jpg416772 kBon 8/10/15 Download
rostock max v2 - spool support arm - mod rl 2x 608 - 02.jpg373767 kBon 8/10/15 Download
rostock max v2 - spool support arm - mod rl 2x 608 - 03.jpg361706 kBon 8/10/15 Download
rostock max v2 - spool support arm - mod rl 2x 608 - 04.jpg383704 kBon 8/10/15 Download

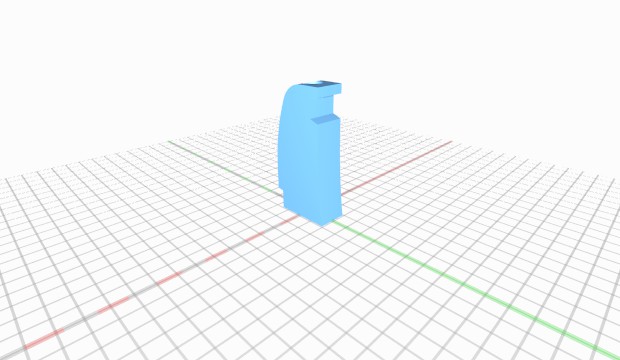

spool support arm - mod rl 2x 608.stl339107 kBon 8/10/15 Download

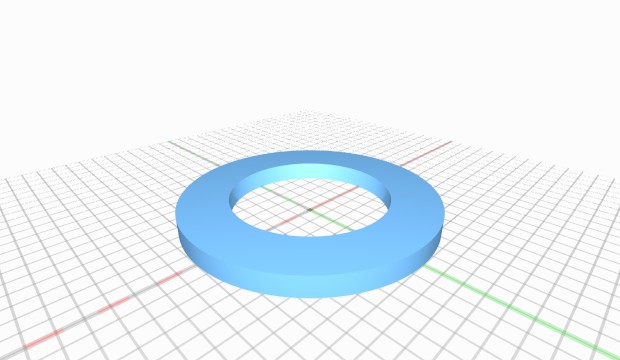

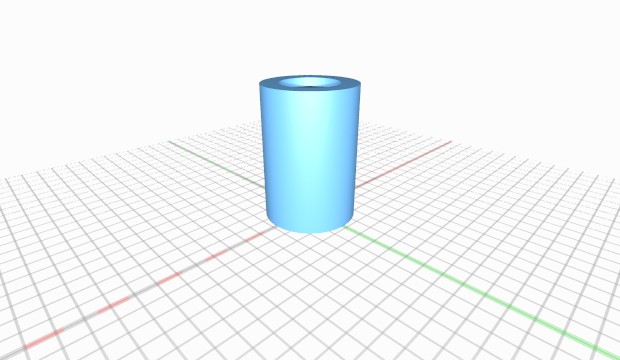

1.0mm spacer.stl350141 kBon 8/10/15 Download
10.5mm spacer.stl368141 kBon 8/10/15 Download
18.7mm spacer.stl323141 kBon 8/10/15 Download

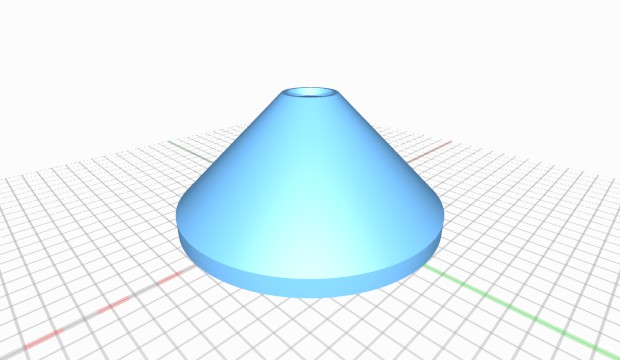

spool cone - for 2x 608 ball bearing.stl3801 MBon 8/10/15 Download

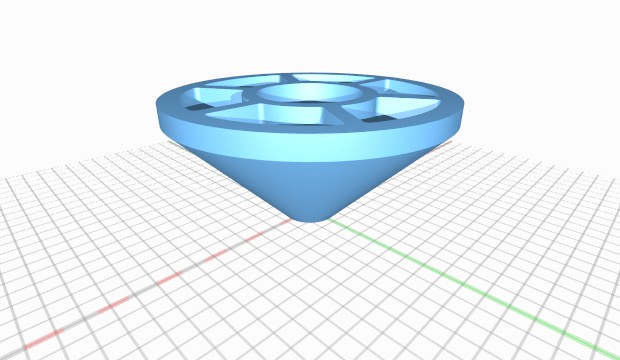

spool cone - for 2x 608 ball bearing - inverted.stl3781 MBon 8/10/15 Download

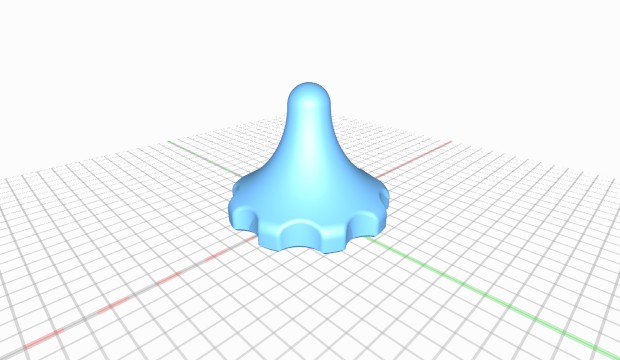

m8 knob - rl 2x 608.stl37725 MBon 8/10/15 Download
Description

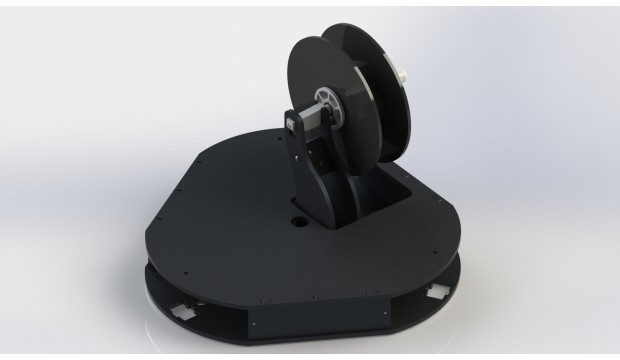

Spool Holder for Rostock MAX v2 I've seen a lot of designs out there, but I couldn't find anything that was perfect for me, so I designed this one. It has three spacers included to align the center of the Spool of Filament perfectly over the exit hole in the top of a Rostock MAX v2 using SeeMeCNC Filaments. Other spools should work just the same as they pretty much all use the same spool dimensions... Usually.
Instructions

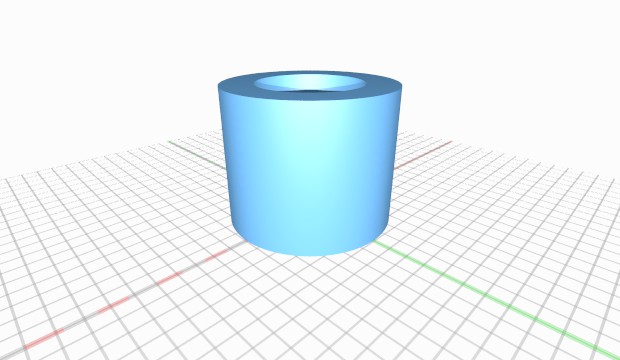

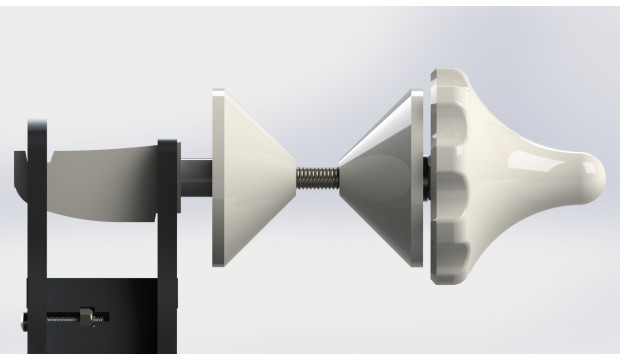

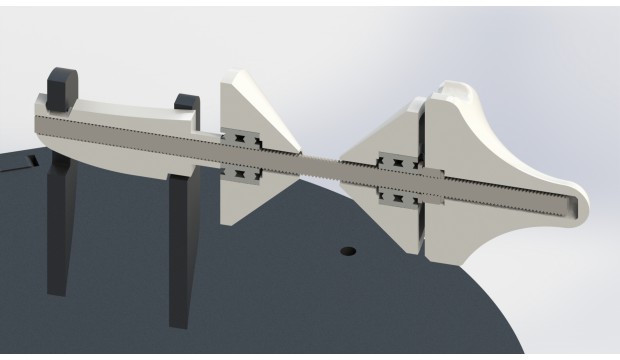

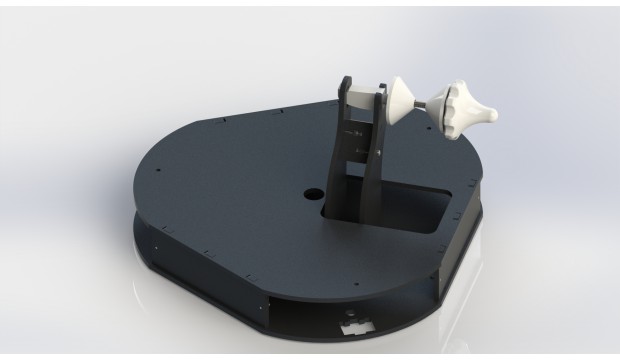

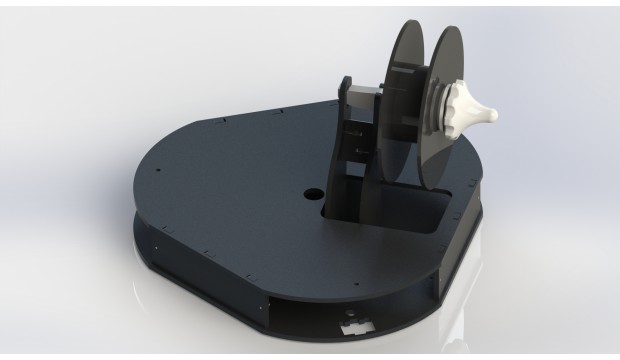

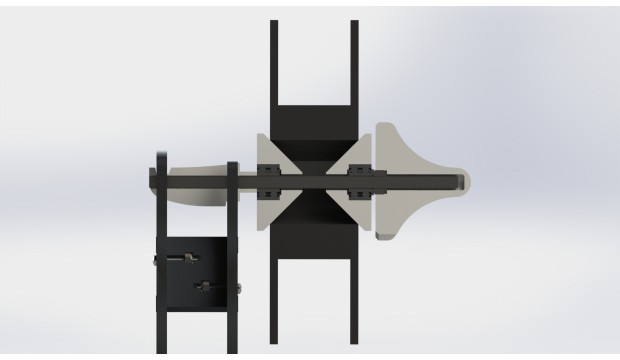

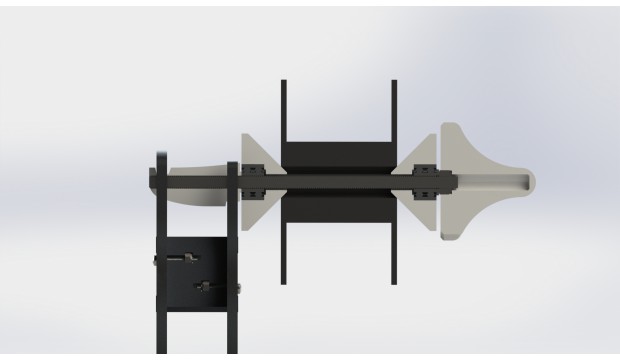

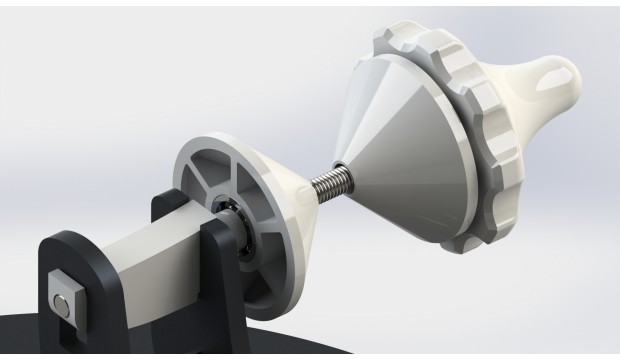

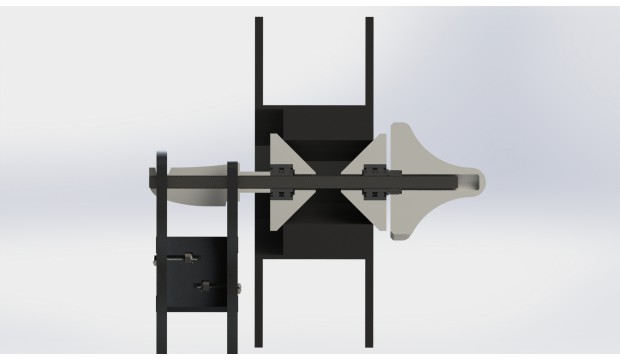

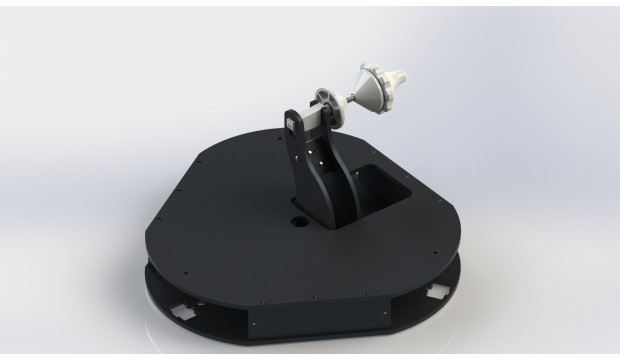

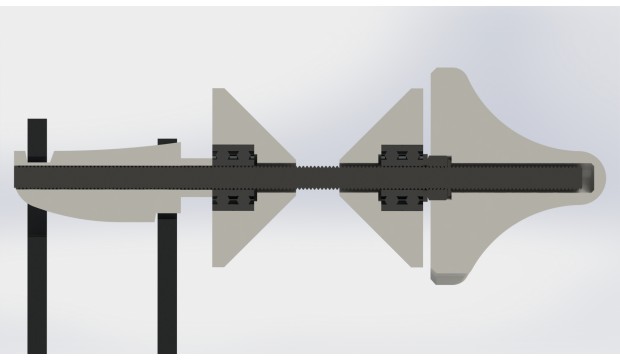

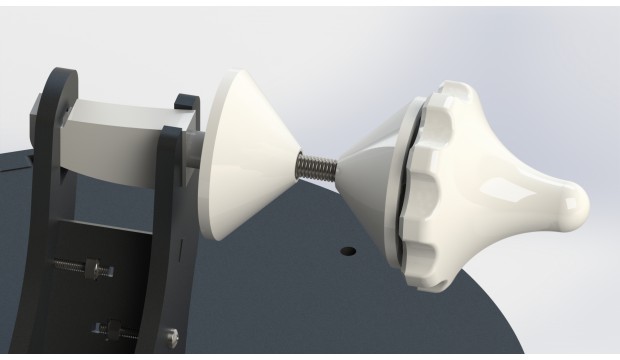

The .STL's are VERY highly detailed as I don't like seeing poorly executed .STL exporting! Items needed: - 608-ZZ or 608-2Z Bearings x4 - M8 x 1.25 x 190mm Threaded Rod x1 - M8 x 1.25 Nylon-Insert Locknut x1 - M8 Washer x1 The M8 x 1.25 x 190mm Threaded Rod should be a tight push fit into the "Spool Support Arm - Mod RL 2x 608". If not, you can use a glue or bonding agent to secure it. For 0.5kg spools use the "10.5mm Spacer" For 1.0kg spools use the "18.7mm Spacer" For 1.0lbs Taulman spools use the "1.0mm Spacer" Press fit the "M8 Knob - RL 2x 608" onto the M8 x 1.25 Nylon-Insert Locknut. Don't forget the M8 Washer before installing the "M8 Knob - RL 2x 608". Tighten the "M8 Knob - RL 2x 608" up against the M8 Washer until there is no play. Do not over tighten as you want just enough to set the preload in the 608 Bearings. See Photorealistic Renderings for more details. Print using either ABS or PLA. Infill: 50% to 100% Supports: Where needed. Enjoy!
License
Attribution - Creative Commons
