Bowden Collet Clip 1.75mm
EskimoRuler
Full Name Michael Escamilla
FilenameDownloadsSizeUploaded
2015-10-18 21.45.18.jpg12601.7 MBon 19/10/15 Download
2015-10-18 21.45.40.jpg11951.1 MBon 19/10/15 Download
BowdenColletClip.stl1062343 kBon 19/10/15 Download
BowdenColletClip.stp108562 kBon 19/10/15 Download
Description

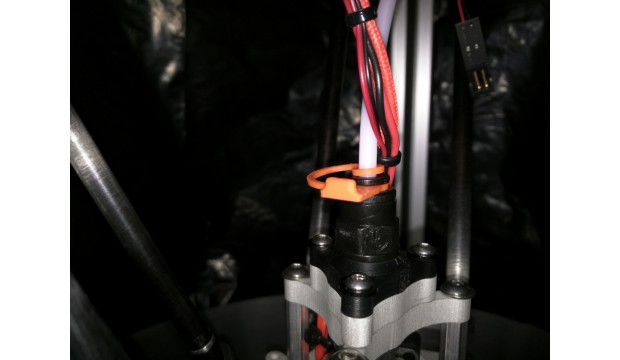

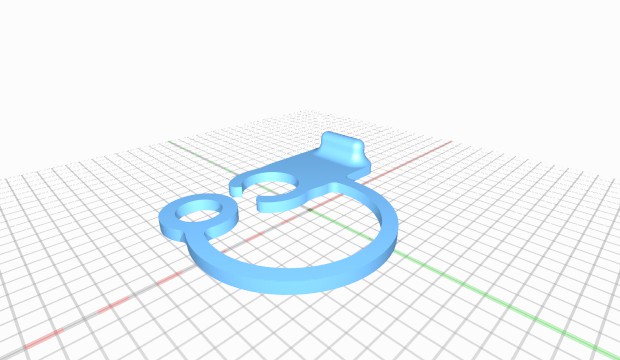

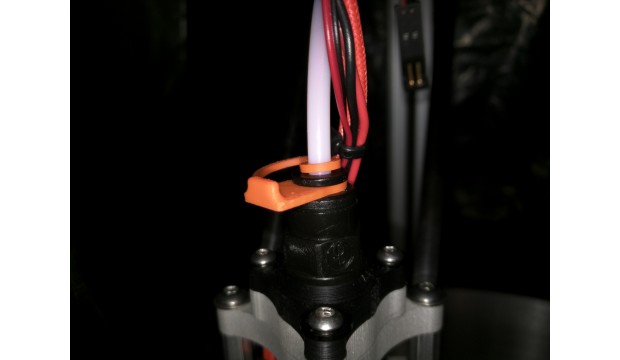

This is a redesign of the PTC Lock Snap Repables http://repables.com/r/444/ . I really liked the original design of this clip, but the clip would not fit on this collet sold by Distech Automation http://www.dta-labs.com/products/bowden-coupler . So I redrew the design with a wider opening on the clip, and I also made the clip less thick. The clips holds the Collet up locking it in place. This takes the slack out of the Bowden tube for more precise retracts.
License
Attribution - Creative Commons
