Bowden Deflector
dassmilytier
FilenameDownloadsSizeUploaded
IMG_20151213_014114.jpg14381.5 MBon 13/12/15 Download
abweiser.stl782340 kBon 13/12/15 Download
Description

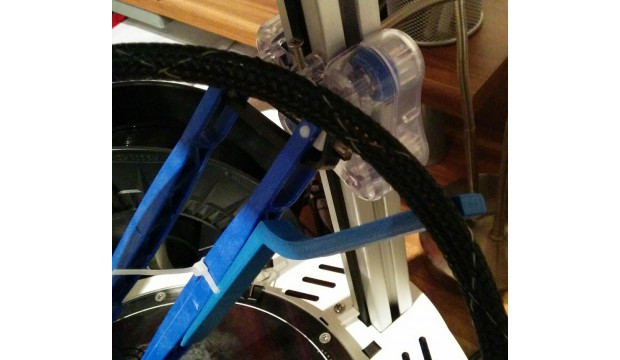

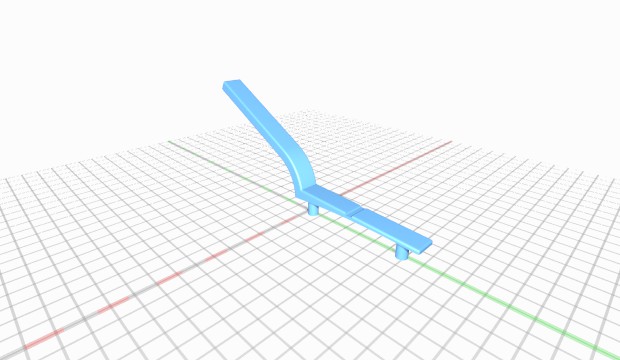

I had a tiny problem with my orion delta. The bowden was not straigt and tend to get stuck on top pf the rear carriage, especially for larger prints, that uses all the area. Therefor I now created a deflector that is attached to the right arm of the rear carriage. V2: the new version contains a rounded bed to better fit to the carriage. Also the cable tie holder is now open for easier attachment
Instructions
as this item is big as well, you have to make sure that the bowden is not stuck during the print (approx. 1h with 0.2mm layer). The bolts fit in the upper triangles. Use a small cable tie to fix the deflector.
License
Attribution - Creative Commons
