Dial Indicator mount for Rostock
DeltaCon
Full Name Con Hennekens
Location Wessem NL
Company Simply Sign
FilenameDownloadsSizeUploaded

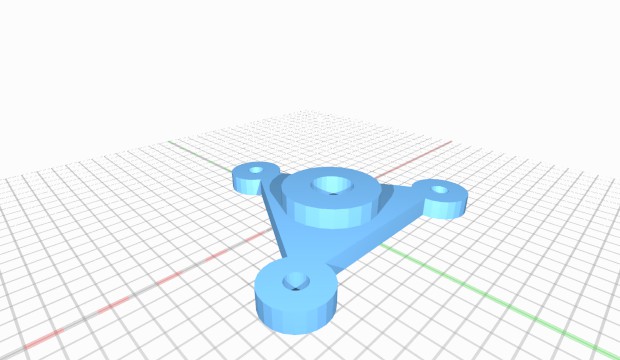

Dial Mount Con.stl54138 kBon 29/2/16 Download
20160227_165906.jpg5072 MBon 29/2/16 Download
20160227_165916.jpg5242.2 MBon 29/2/16 Download
20160227_165958.jpg5272.3 MBon 29/2/16 Download
20160227_170012.jpg5421.7 MBon 29/2/16 Download
Description

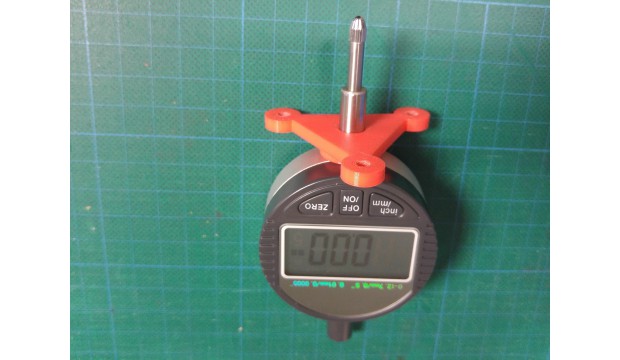

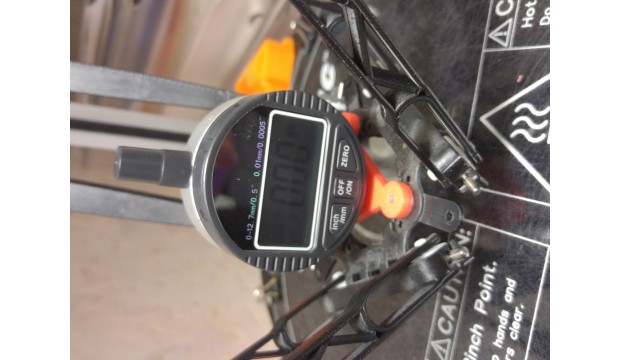

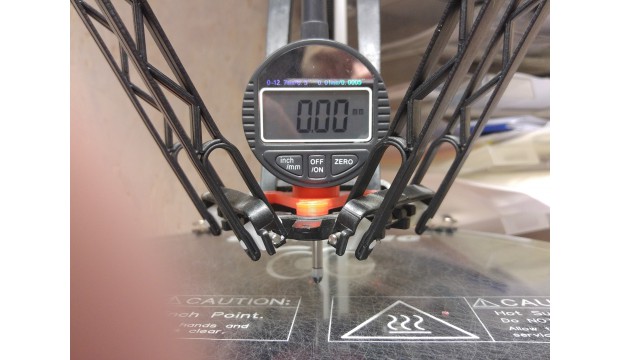

Loosely based on http://repables.com/r/344/ from jjjohnson I made this dial indicator mount as my first ever sketchup object. So it is realy simple in design, but pretty effective ;-) I made my own design instead of jjjohnsons mainly because the butterfly-style wings do not play very nicely with the standard effector of the Rostock, and because the shaft of my dial indicator did not fit. The screw positions are taken from the example and fit perfectly. The shaft diameter of my cheap Chines indicator is 8mm and fits snuggly through this mount. I ordered my dial indicator through ebay: http://www.ebay.nl/itm/0-12-7mm-0-5inch-0-01mm-Digital-Dial-Indicator-Electronic-Dial-Gauge-New-/231411620732?
Instructions

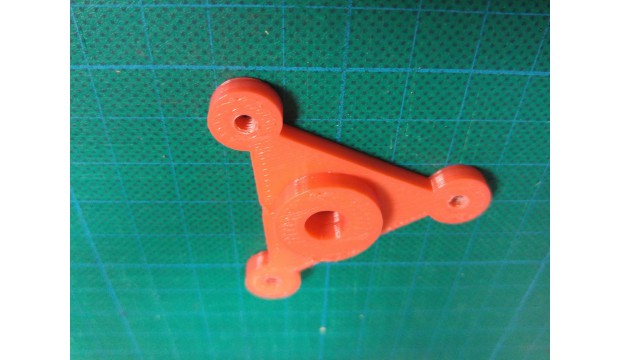

Print in any material you like. Cut thread for the screws you are going to use. I used M4 thread and the same screws that I use for mounting the hotend.
License
Attribution - Creative Commons
