E3D hotend + IRprobe mount
FilenameDownloadsSizeUploaded

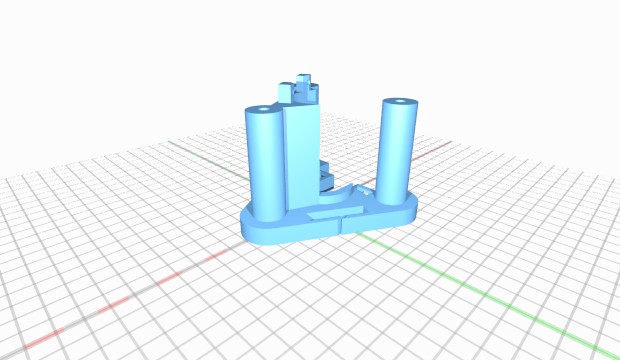

e3d + ir probe brakett.stl266583 kBon 15/3/16 Download

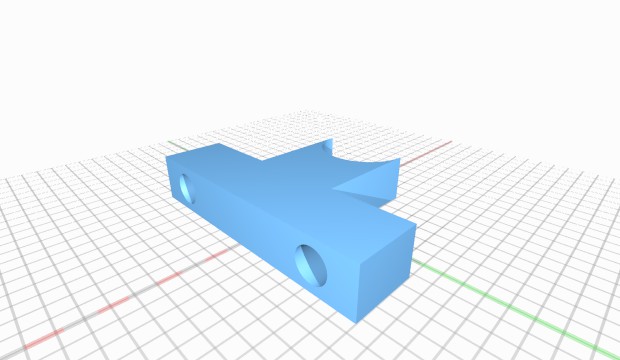

e3d clamp.stl26572 kBon 15/3/16 Download
Description
This mount is based upon this http://www.thingiverse.com/thing:1064131. I adjusted the height a little, added a fan shroud, and added mounting points for David Crocker's IR probe. When used with the E3D v6 the IR probe vil be aprox 1 mm above the hotend nozzle
Instructions
Print this upside down, without any support, use 100 micron layer for a nice finish. This will fit on the SeeMeCNC effector platform, maybe with a little adjustment on the effector platform.
License
Attribution - Creative Commons
