60mm LED ring bracket and layer fan shroud
FilenameDownloadsSizeUploaded

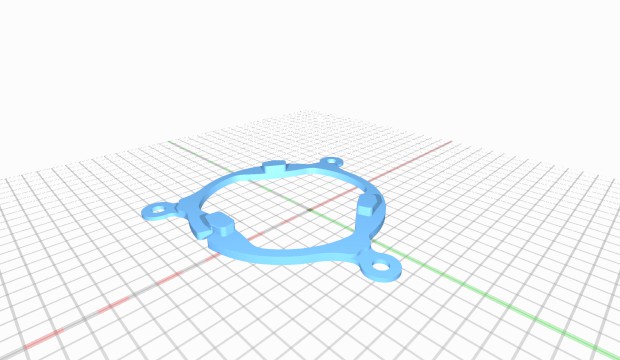

60mm-ring-bracket.stl365215 kBon 18/3/16 Download
modified-layer-fan-shroud.stl376946 kBon 18/3/16 Download

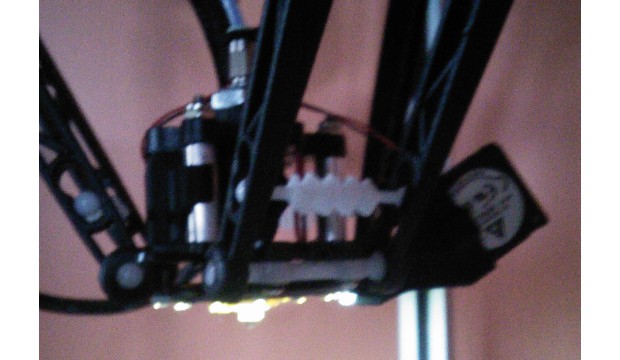

IMG_20160318_134151.jpg394818 kBon 18/3/16 Download

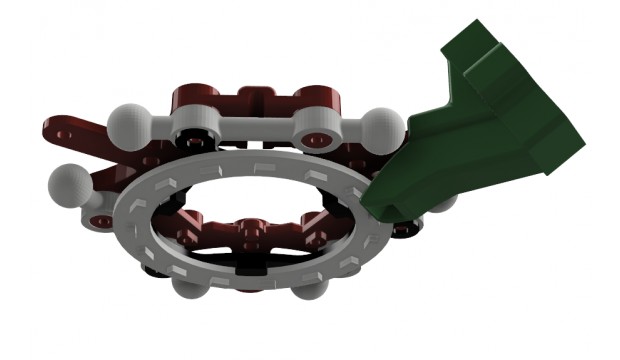

effector assembly.png402157 kBon 18/3/16 Download
Description

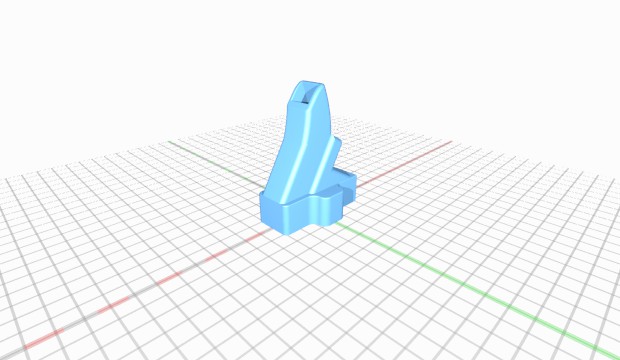

This bracket attaches a 60mm angel eye LED ring to the bottom of the new Rostock Max V2 ball cup platform. Also needed to modify the layer fan shroud from jjjohnson, http://repables.com/r/621/, to make room for the bracket and LED ring.
Instructions
Print the LED bracket and fan shroud in ABS. Remove the original layer fan shroud. Snap the LED ring onto the bracket and then attach the bracket to the bottom of the effector platform. Use the same screws used to mount the ball joints to the effector. Thread screws through the bracket holes then the washers and tighten. Put the layer fan into the new shroud and attach.
License
Attribution - Creative Commons
