YJ-Pad wiring block mounting bracket
bvandiepenbos
| Filename | Downloads | Size | Uploaded | |
|---|---|---|---|---|

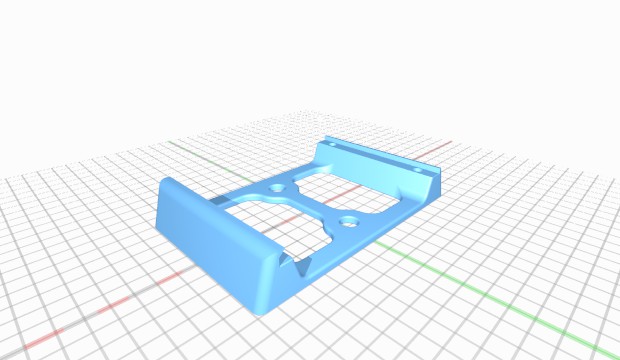

| yj-pad_mount-8020-2012extrusion.stl | 1189 | 10.6 MB | on 3/5/16 | Download |
| yj-pad_mount-8020-2012extrusion.rsdoc | 1178 | 1.6 MB | on 3/5/16 | Download |
| img_20160502_184246.jpg | 1113 | 450 kB | on 3/5/16 | Download |
| img_20160502_184109.jpg | 1147 | 659 kB | on 3/5/16 | Download |
| img_20160502_193056.jpg | 1196 | 702 kB | on 3/5/16 | Download |
Description

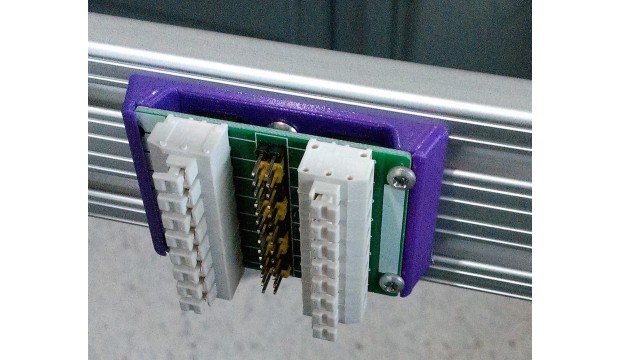

Bracket to mount the YJ-Pad wiring block to 8020 brand T-Slot aluminum extrusion.
Extrusion #2012 1/2" x 2" used for frame sides of MAX METAL Printer Frame by TrickLaser.com
http://www.tricklaser.com/MAX-METAL-Frame-MAXMTLFRM.htm
Slots are 1" center to center
YJ-Pad by Yellow Jacket Concepts
http://www.themakerhive.com/shop/viewitem.php?productid=25
Instructions

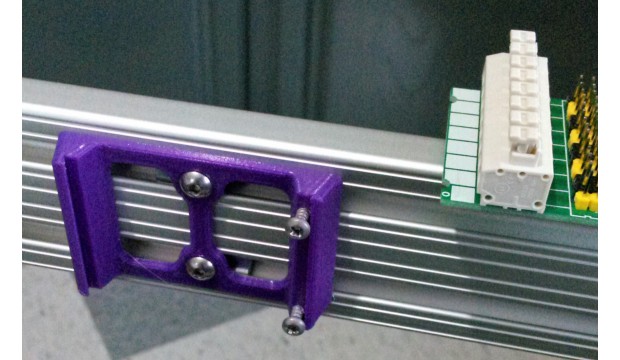

Mount to extrusion with M4 x 8 screws and t-nuts

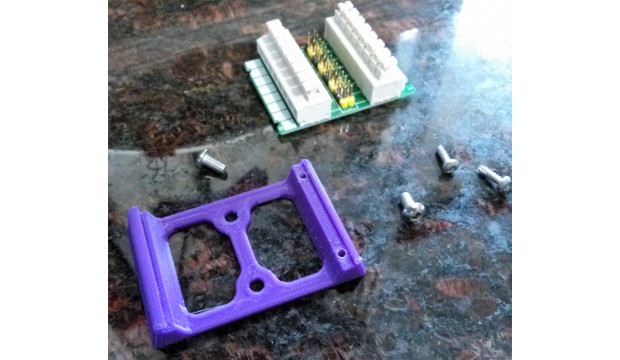

Screws for block to bracket are #4 X 3/8" or M3 x 6
YJ-Pad is awesome! makes wiring easy, no crimping or soldering, uses reliable spring cage connections. Also tap into wiring via the .1" header pins.
License
Attribution - Creative Commons
