Rostock MAX v2 Power Panel with 80mm Fan and Filter frame
zeplin
| Filename | Downloads | Size | Uploaded | |
|---|---|---|---|---|

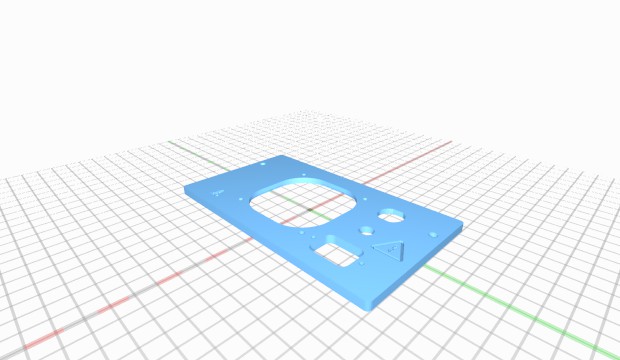

| Power Pannel.stl | 1705 | 160 kB | on 8/7/16 | Download |

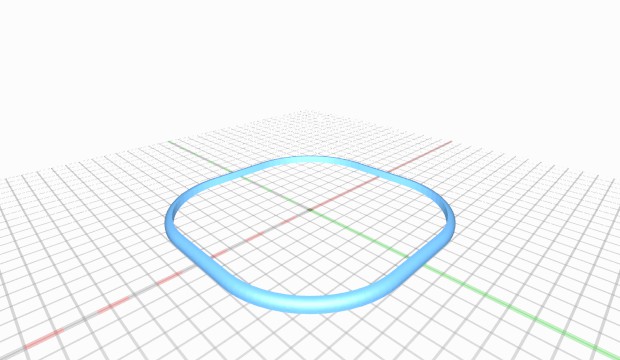

| PW Pnl Filter Ring.stl | 1717 | 261 kB | on 8/7/16 | Download |
| Power Input Side Cover with 80mm fan v4.iges | 1731 | 1 MB | on 8/7/16 | Download |

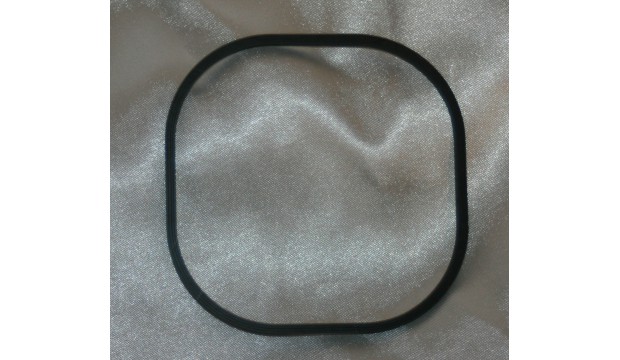

| 80mm_fan_filter_insert.jpg | 1128 | 809 kB | on 8/7/16 | Download |

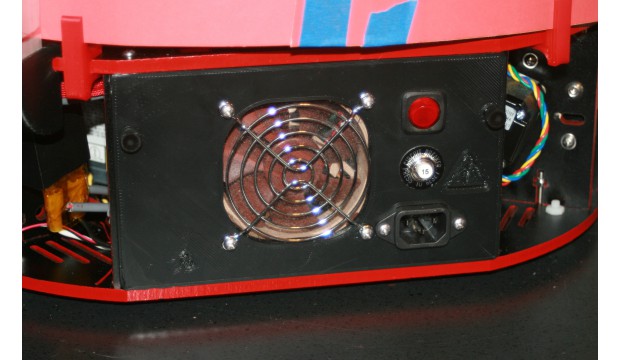

| 80mm_fan_power_panel.jpg | 1194 | 830 kB | on 8/7/16 | Download |

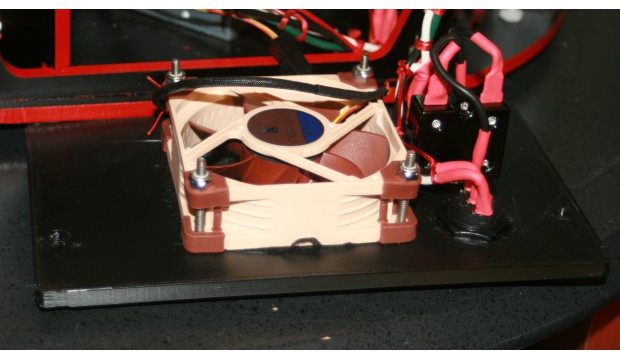

| 80mm_fan_power_panel_back.jpg | 1018 | 761 kB | on 8/7/16 | Download |
Description
Reworked power panel for the left side (between tower x and z) of the Rostock MAX v2 Delta printer
Instructions
Reworked power panel for the left side (between tower x and z) as I wanted my power on the other side but you can mirror the STL or edit the IGES to fit your layout. There is a filter ring to use a pantyhose filter to keep dust out of base if you use this 80mm fan as an intake for your. base. If you need more on the usage of the filter ring please see my build post at:
License
Attribution - Creative Commons
