80mm Fan Panel for Rostock MAX v2 from SeeMeCNC
zeplin
| Filename | Downloads | Size | Uploaded | |
|---|---|---|---|---|
| 80mm_fan_filter_insert.jpg | 993 | 809 kB | on 8/7/16 | Download |
| 80mm_fan_panel_filtered_back.jpg | 1099 | 685 kB | on 8/7/16 | Download |

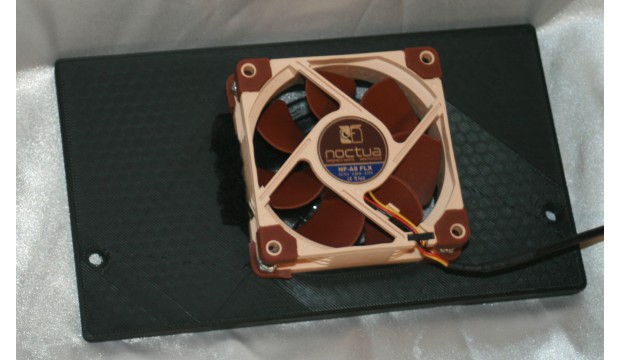

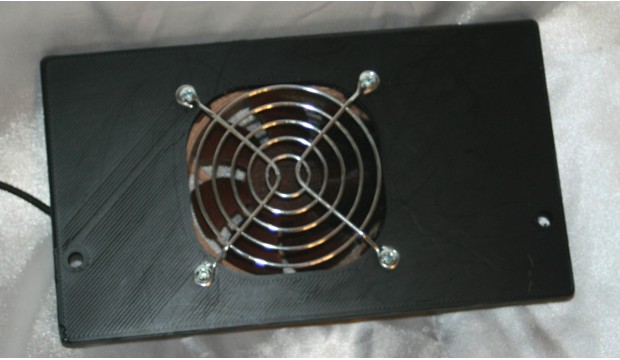

| 80mm_fan_panel_filtered_front.jpg | 1022 | 600 kB | on 8/7/16 | Download |

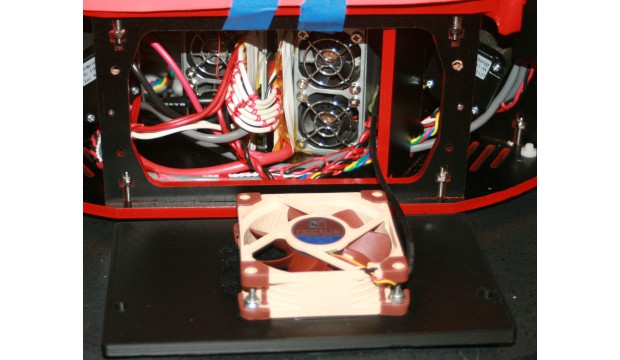

| 80mm_fan_panel_instal_open.jpg | 978 | 877 kB | on 8/7/16 | Download |

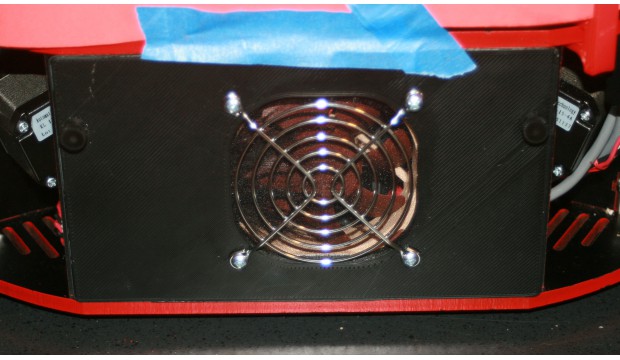

| 80mm_fan_panel_installed.jpg | 997 | 829 kB | on 8/7/16 | Download |
| filter ring.stl | 1021 | 559 kB | on 8/7/16 | Download |

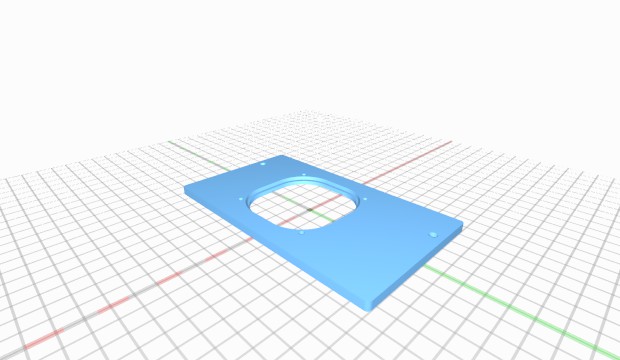

| side pannel w-80mm fan.stl | 1002 | 762 kB | on 8/7/16 | Download |
| side cover with 80mm fan v1 v3.iges | 1009 | 143 kB | on 8/7/16 | Download |
Description

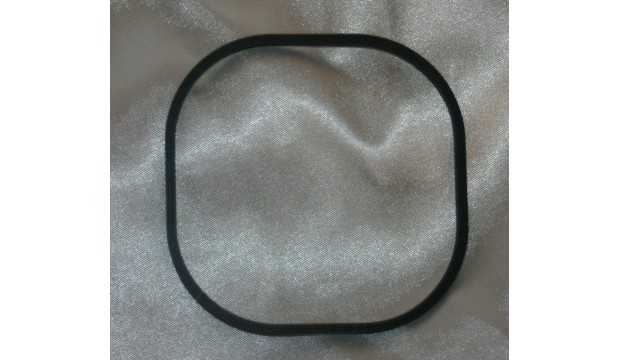

Reworked side panel for the right side (or left) of the Rostock MAX v2 Delta printer. There is a filter ring to use a pantyhose filter to keep dust out of base if you use this 80mm fan as an intake for your base. If you need more on the usage of the filter ring please see my build post at: http://forum.seemecnc.com/viewtopic.php?f=42&t=10409&p=93185#p93185
Instructions
I have printed orginal out of PLA from MatterHackers at 190 and bed at 60 sliced with MatterControl but any PLA or ABS if your base is real warm.
Rafts: Doesn't Matter
Supports: Doesn't Matter
Resolution: .25
Infill: 20%
License
Attribution - Creative Commons
