Air pump bracket for MAX METAL Frame
bvandiepenbos
| Filename | Downloads | Size | Uploaded | |
|---|---|---|---|---|

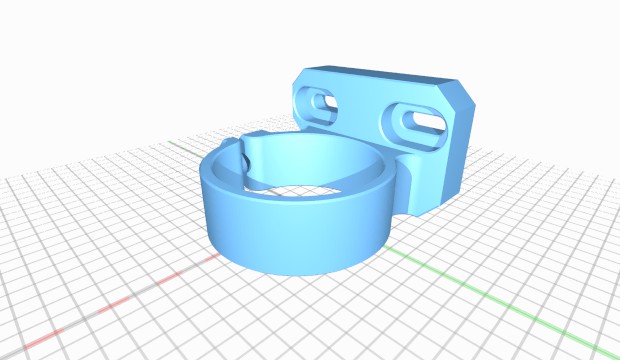

| big air pump bracket BV-v1.stl | 3482 | 480 kB | on 16/7/16 | Download |

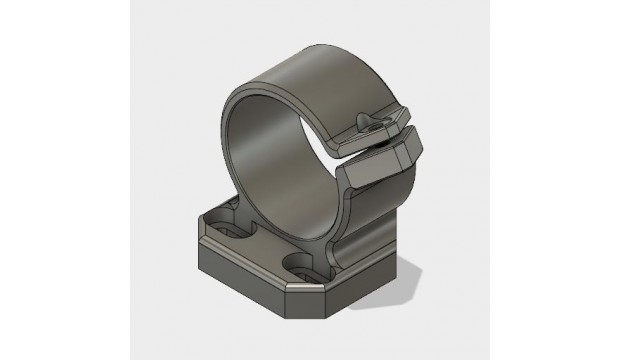

| big air pump mount v23.jpg | 3595 | 57 kB | on 16/7/16 | Download |
| big air pump mount v23.step | 2819 | 239 kB | on 16/7/16 | Download |
| big air pump mount v23.iges | 2825 | 455 kB | on 16/7/16 | Download |
| big air pump mount v23.f3d | 2815 | 474 kB | on 16/7/16 | Download |
| IMG_20160715_222318.jpg | 2481 | 1016 kB | on 16/7/16 | Download |
| big pump mount with rubber v15.jpg | 1781 | 19 kB | on 18/7/16 | Download |
| big air pump bracket BV-v2.stl | 1655 | 322 kB | on 18/7/16 | Download |
| big pump mount with rubber v14.stp | 1607 | 148 kB | on 18/7/16 | Download |
| big pump mount with rubber v14.igs | 1686 | 311 kB | on 18/7/16 | Download |
| big pump mount with rubber v14.f3d | 1691 | 145 kB | on 18/7/16 | Download |
Description
use M4 screws.

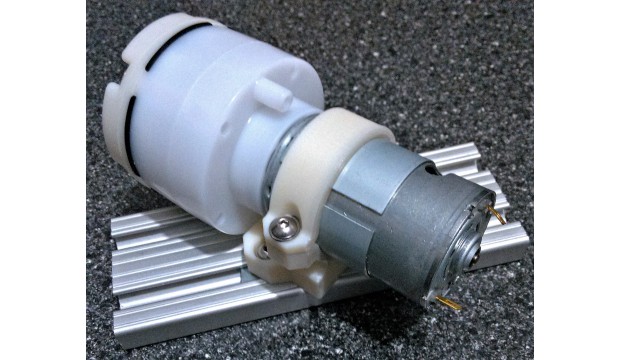

mounts to t-slot frame sides.
8020 extrusion 1/2" x 2" with 2 slots.
--

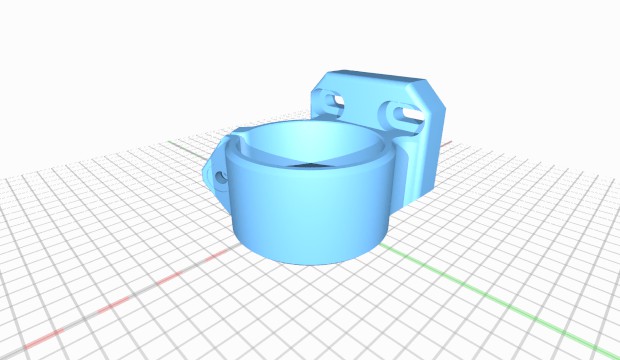

Added v2, made clamp bracket I.D. larger for 3mm thick rubber for sound isolation.
Instructions
Larger air pump to use with "Berd-Air" part cooling pipes.
12v DC pump from http://www.themakerhive.com/shop/viewitem.php?productid=45

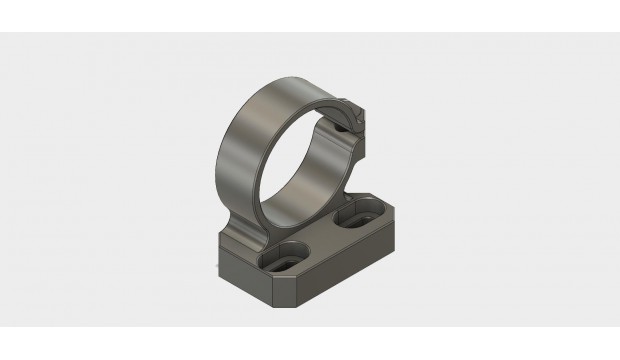

Bracket drawn in Autodesk Fusion 360
License
Attribution - Creative Commons
