Berd-Air cooling pipe bracket for MAX Metal Platform
bvandiepenbos
| Filename | Downloads | Size | Uploaded | |
|---|---|---|---|---|
| berd-air pipe bracket for MAX Platform v7.jpg | 1995 | 17 kB | on 22/7/16 | Download |
| berd-air pipe bracket for MAX Platform v7.step | 1921 | 293 kB | on 22/7/16 | Download |
| berd-air pipe bracket for MAX Platform v7.iges | 1889 | 426 kB | on 22/7/16 | Download |
| berd-air pipe bracket for MAX Platform v7.f3d | 1823 | 427 kB | on 22/7/16 | Download |
| berd-air pipe bracket for MAX Platform v7.stl | 1927 | 1 MB | on 22/7/16 | Download |
Description
Use M3 screw to mount.
Use M3 setscrew to hold pipe in place.
Fits 3/32" O.D. brass or aluminum tubing available from Hobby/Craft stores or McMaster-Carr.
Drawn with Autodesk Fusion 360
Instructions

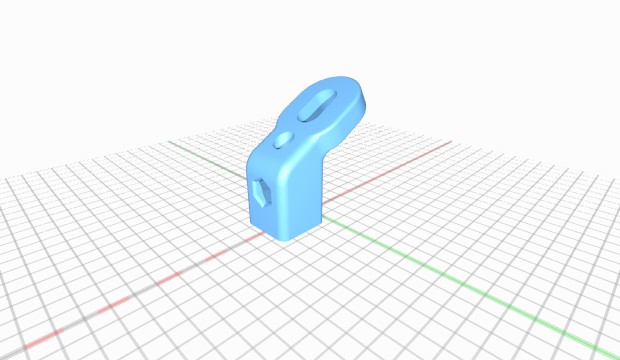

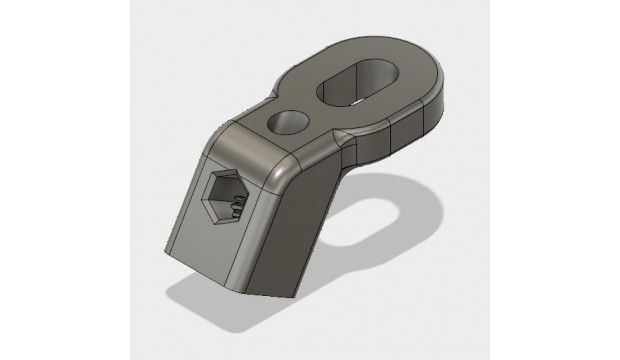

Air pipe goes in hex hole and held in place by M3 screw. Other hole mounts to tab on effector platform.
License
Attribution - Creative Commons
