Fog Buster coolant sprayer bracket for Bridgeport mill quill
bvandiepenbos
| Filename | Downloads | Size | Uploaded | |
|---|---|---|---|---|
| FogBusterMillBracket-v2.stl | 1765 | 310 kB | on 22/2/17 | Download |
| Fog Buster bracket for bridgeport mill quill.stp | 1770 | 237 kB | on 22/2/17 | Download |
| Fog Buster bracket for bridgeport mill quill-01.jpg | 1803 | 613 kB | on 22/2/17 | Download |
| Fog Buster bracket for bridgeport mill quill-02.jpg | 1908 | 590 kB | on 22/2/17 | Download |
| Fog Buster bracket for bridgeport mill quill-03.jpg | 1928 | 640 kB | on 22/2/17 | Download |
Description

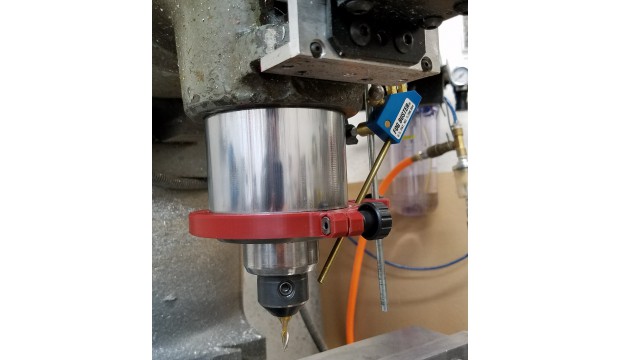

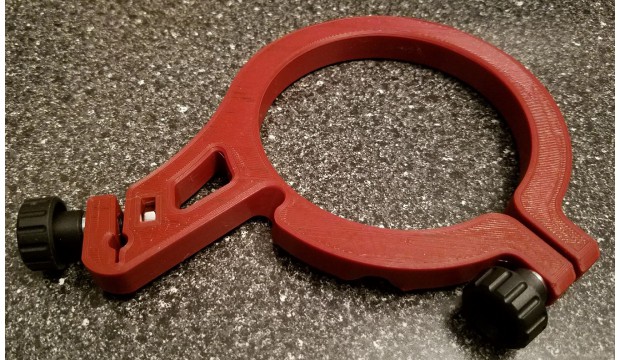

Bracket I designed to hold the Fog Buster cutting fluid mister on my Bridgeport CNC mill.

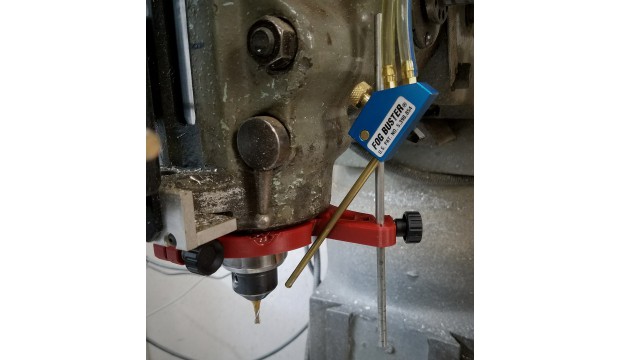

Clamps onto the quill so it follows tool up & down so mist stays right on tool.
It was mounted on head so it did not move with tool.
Drawn in Fusion 360.
Instructions
Print with 4 perimeters, 50% fill for strength.
Uses M5 x 30 bolts
License
Attribution - Creative Commons
