MAX Metal Frame- FSR Plate Clamp
bvandiepenbos
| Filename | Downloads | Size | Uploaded | |
|---|---|---|---|---|

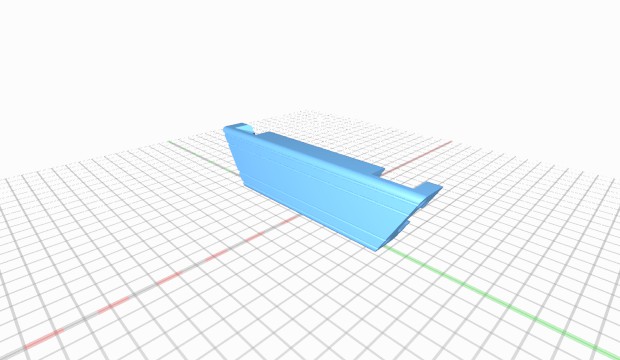

| MAX Metal Frame-FSR Plate clamp-rev2.stl | 1755 | 1017 kB | on 22/7/17 | Download |

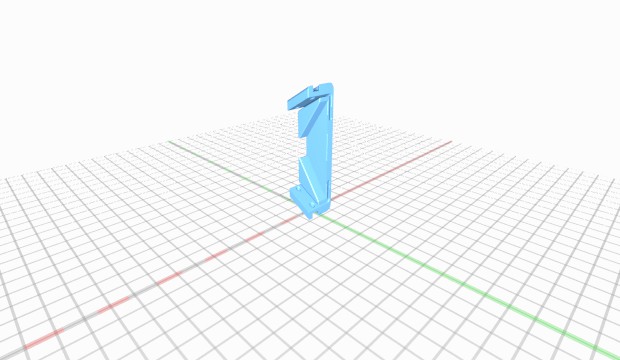

| MAX Metal Frame-FSR Plate alum corner bracket.stl | 1805 | 973 kB | on 22/7/17 | Download |
| MAX Metal Frame-FSR Plate clamp-rev2.stp | 1806 | 2.8 MB | on 22/7/17 | Download |
| MAX Metal Frame-FSR Plate clamp-rev2.f3d | 1684 | 901 kB | on 22/7/17 | Download |
| trick laser max metal fsr bed mount clamps rev2.jpg | 1082 | 1.7 MB | on 22/7/17 | Download |
Description

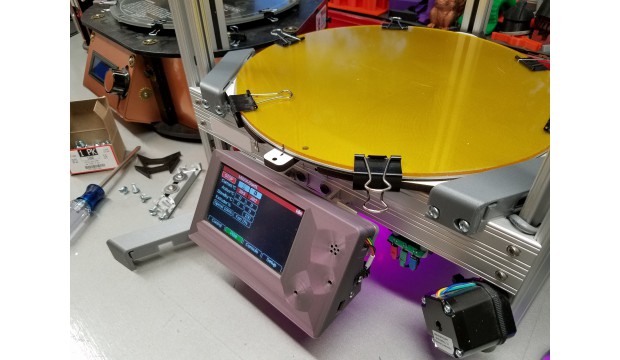

Retaining clamp plate for FSR Plate and Onyx HPB on MAX Metal Frame.
Keeps plate from falling off when transporting printer but still lets bed float free on FSR's.
This aluminum corner bracket http://www.tricklaser.com/FSR-Brackets-for-MAX-METAL-Frame-FSR-MMBRACKET.htm
This FSR plate for Onyx HPB http://www.tricklaser.com/FSR-Plate-for-Onyx-Heated-Bed-FSR-PLATE.htm
This is printer frame http://www.tricklaser.com/MAX-METAL-Frame-MAXMTLFRM.htm
Instructions
Designed to print without supports.
Printed part fastens to aluminum extrusion corner mount with 10-32 X 3/8" long self tapping screws.
License
Attribution - Creative Commons
