Drop In Spool Holder w/ PVC Braces.
crussty
Full Name Chris Russell
Location SoCal
Company Practical Printing
FilenameDownloadsSizeUploaded
screen shot 2017-08-15 at 9.44.23 am.png993253 kBon 15/8/17 Download
pp spool holder v1.stl944480 kBon 15/8/17 Download
pp spool holder v1.f3d978299 kBon 15/8/17 Download
20807056_1644614902225109_1029072625_o.jpg995119 kBon 15/8/17 Download
Description

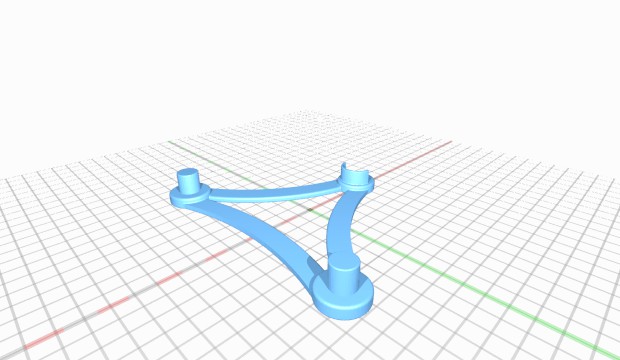

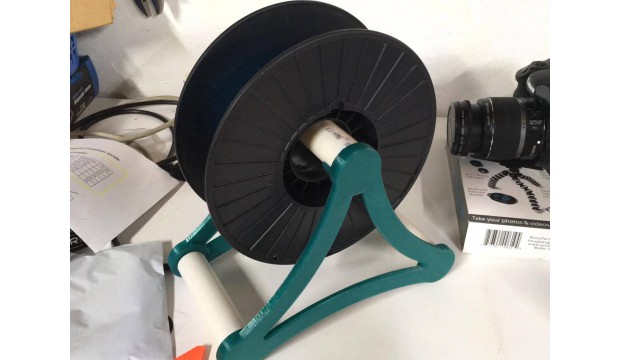

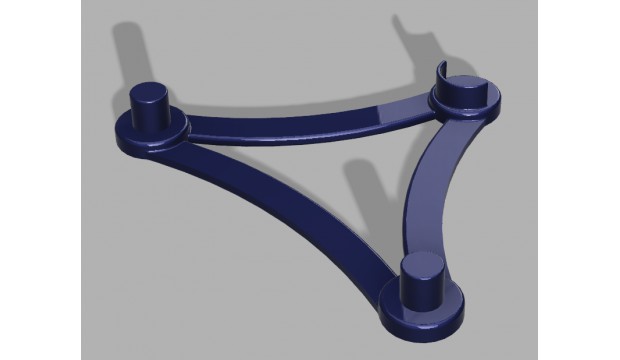

I wanted a spool holder that could be adjusted to size for different spool and didn't use any expensive parts. So I came up with this simple one that uses cheap 3/4" PVC braces and drops in from the top.
Instructions
Print to size using 3 or more perimeters and top/bottom layers. I found about 35% infill provided decent rigidity. This is a large print, so you need something like a RMAX, gMax or CR-10 to pull it off. I found cutting the PVC to equal lengths of 4.25inches (108mm) was about perfect for all the spools I had on hand, but you can adjust accordingly to your needs. If you find the nubs that push into the PVC pipe are a bit loose, you can just add a dab of hot glue and it will hold fast, but allow it to be pulled apart later to break it down or change pipe lengths.
License
Attribution - Non-Commercial - Share Alike
