Cell Holder for Capacity Tester
offgrid
Full Name Daniel B
Location Switzerland
FilenameDownloadsSizeUploaded
cellhold.stl104735 kBon 21/10/17 Download
cellholder.jpg1032210 kBon 21/10/17 Download
Description

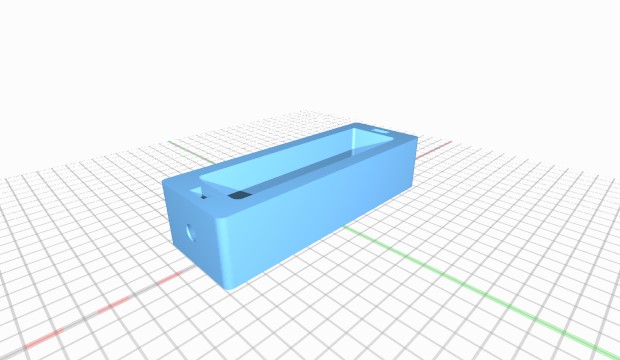

This holder can be used to hold AA, AAA or 18650 cells for capacity measurements. Use screws with good conductivity.
Instructions

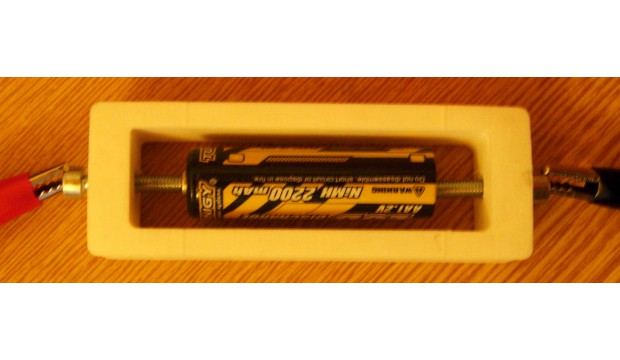

Insert M4 nuts in the two slots, than insert screws through the holes and tighten so that cell to be measured is held in place.
License
Attribution - Creative Commons
