Cable gland for electric wiring
3D View
offgrid
Full Name Daniel B
Location Switzerland
View Profile >
FilenameDownloadsSizeUploaded

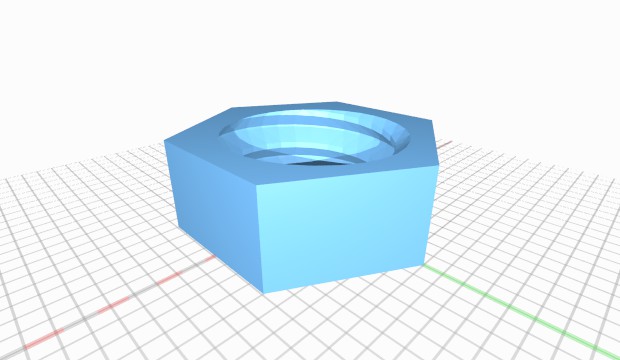

nut.stl230733 kBon 11/1/18 Download

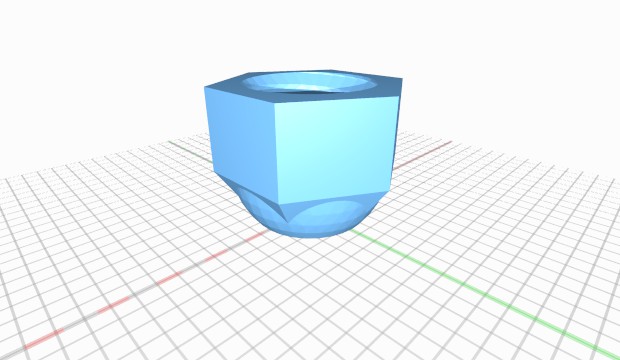

cap.stl2323112 kBon 11/1/18 Download

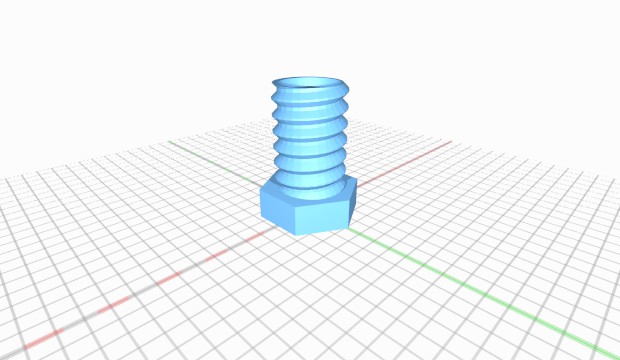

bolt.stl232989 kBon 11/1/18 Download

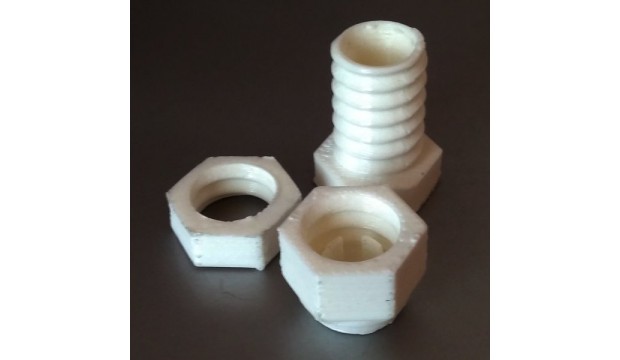

cg_parts.jpg241539 kBon 11/1/18 Download
cg_assy.jpg239040 kBon 11/1/18 Download
Description
Fully functional cable gland for wires with OD 7-9mm. Can be used with wall thicknesses up to 4 mm, thread outer diameter is 17 mm. Printed with PLA on Malyan M180 and M200. See www.baechipower.com for use in battery storage system for photovoltaics.
Instructions
Print in one run. Gcode generated with Slic3r. No brim required. Bed was heated to 75 °C. Fit is tight, wrench is needed for assembly.
License
Attribution - Creative Commons
Tags
cablegland, thread, PG
