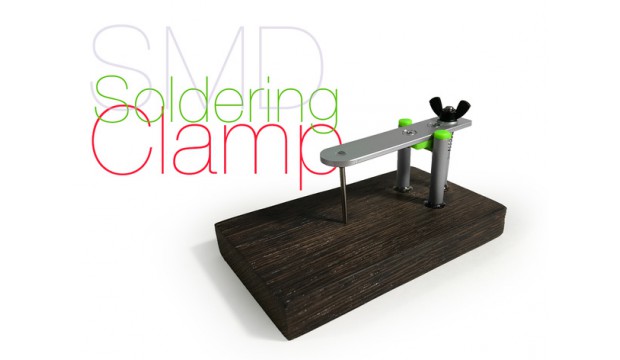

SMD Soldering Clamp
Perinski
Full Name Perinski
Location Czech Republic
FilenameDownloadsSizeUploaded
pic.jpg200104 kB8 months ago Download
pic1.jpg183115 kB8 months ago Download
pic2.jpg188133 kB8 months ago Download
pic3.jpg18168 kB8 months ago Download
pic4.jpg183118 kB8 months ago Download

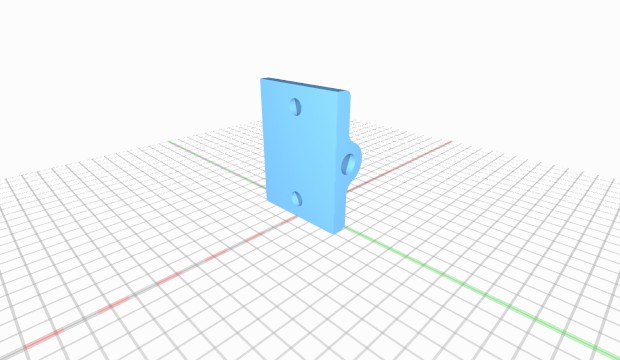

Cap.stl184577 kB8 months ago Download

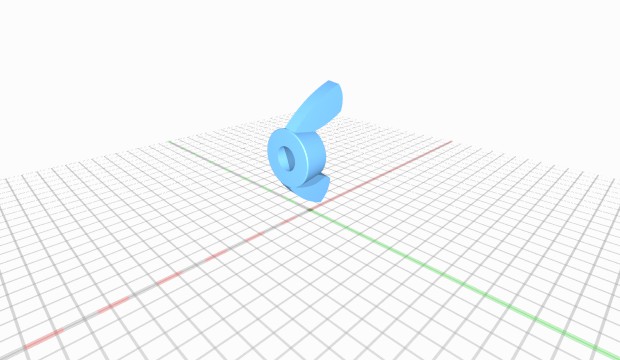

Nut-Butterfly-M4.stl1831.5 MB8 months ago Download

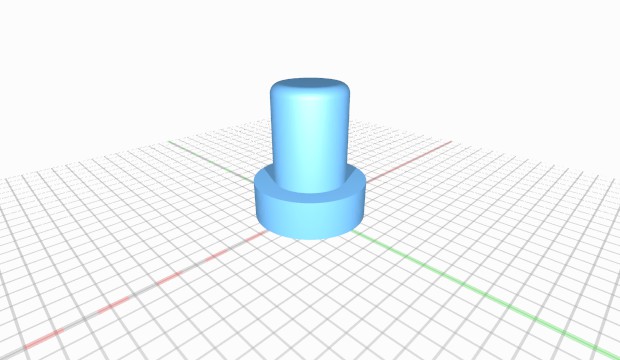

swing.stl169101 kB8 months ago Download
Description

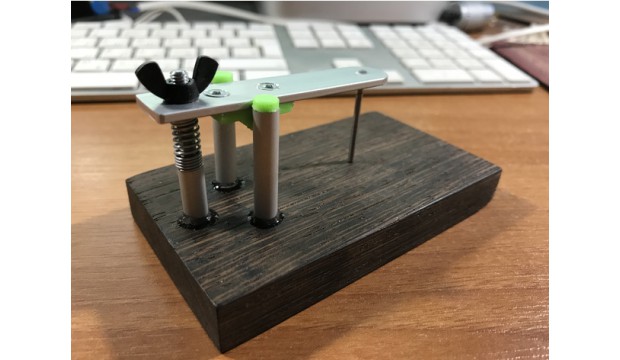

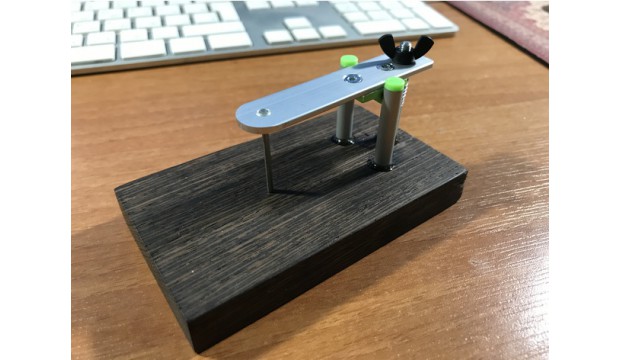

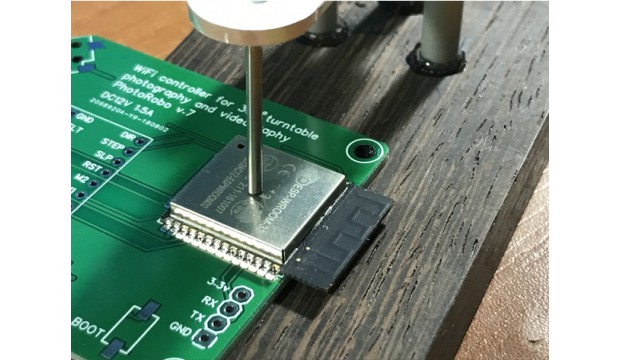

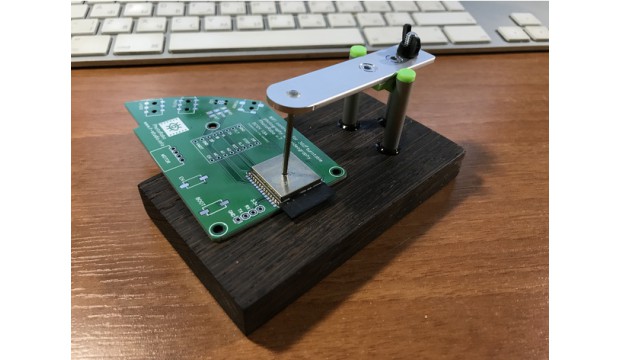

https://www.thingiverse.com/thing:3070638 The general idea taken from: https://www.thingiverse.com/thing:2900194 https://www.thingiverse.com/thing:2772207 But plastic and a soldering iron, and the more so a soldering fan - things incompatible. Therefore, I made my version of the clamp out of available materials, which are not affected by high temperatures. The only plastic parts are the swing and cork. The basis is Wenge oak Aluminum profile rail - 15 2 70mm Aluminum tubes with a diameter of 6 1 38 mm - 2 pcs, and 6 1 15 mm - 1 pcs Stainless steel pin diameter 2 mm length 30mm Rolling shaft diameter 3 mm length 24 mm Threaded stud M4, And the spring is suitable in size, as well as nut butterfly M4 Countersunk head screws M3 * 6mm The compounds are glued together with epoxy resin Links to used tools: NOGA deburring tool and Blades - http://ali.pub/2z2ah5 ----------- Buy & save with CashBack - http://ali.pub/2v0znm ------------ Donate with PayPal ---> https://www.paypal.me/perinski Instagram ---> https://www.instagram.com/v.perinski/ Twitter ---> https://twitter.com/v_perinski Pinterest ---> https://www.pinterest.com/v_perinski/ Tingiverse ---> https://www.thingiverse.com/thing:2110500 Facebook ---> https://www.facebook.com/3DPrinting.stl/
