Clamp for vertical use. Photo and video shooting
Perinski
Full Name Perinski
Location Czech Republic
FilenameDownloadsSizeUploaded

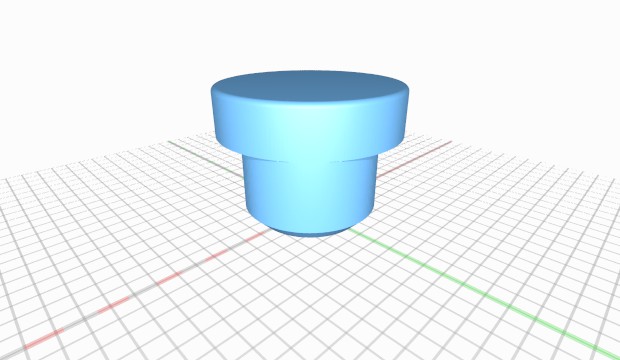

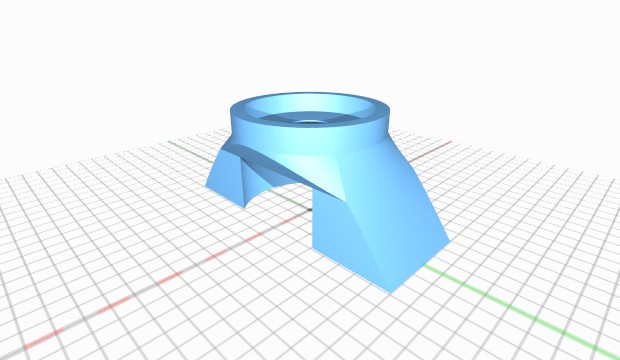

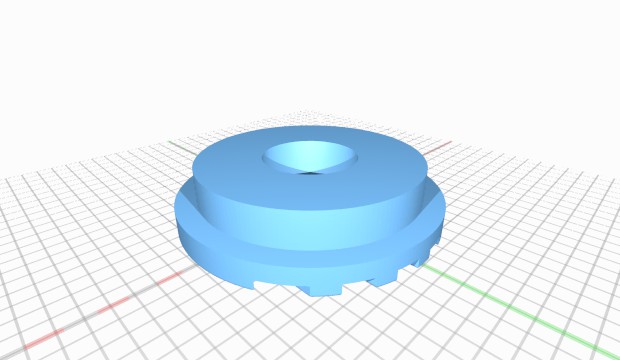

Cap.stl184769 kB10 months ago Download
Clamp-Fix-Slide.stl1713.9 MB10 months ago Download

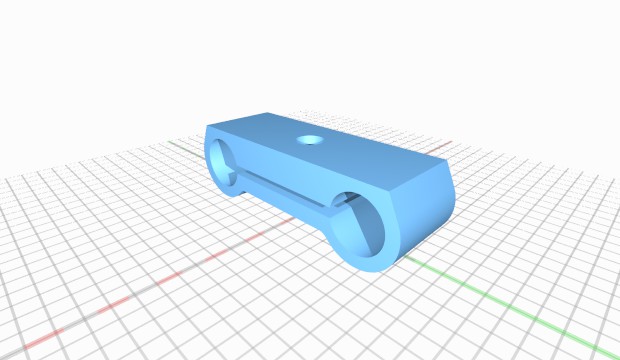

Clamp-Fix.stl1864.3 MB10 months ago Download
Clamp-slide-1.stl165377 kB10 months ago Download
Clamp-slide.stl171121 kB10 months ago Download

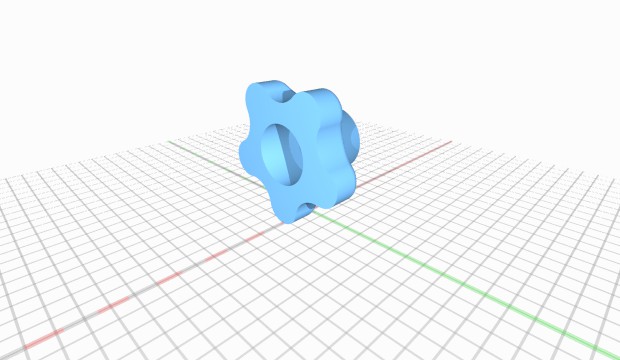

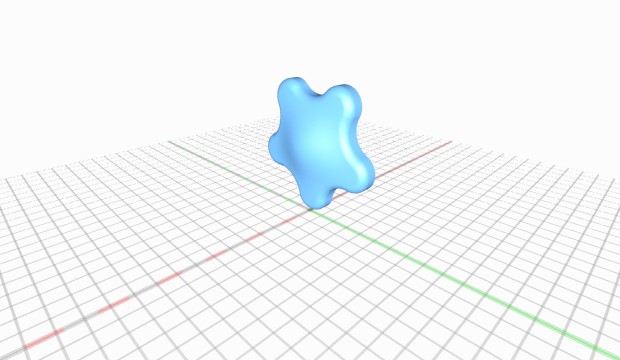

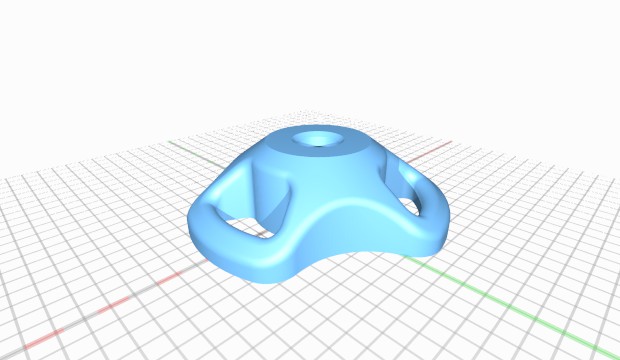

Knob-Bolt-M4-A.stl1852.9 MB10 months ago Download
Knob-Bolt-M4-B.stl1942.9 MB10 months ago Download
Knob-Bolt-M5-A.stl1984.5 MB10 months ago Download
Knob-Bolt-M5-B.stl1704.5 MB10 months ago Download

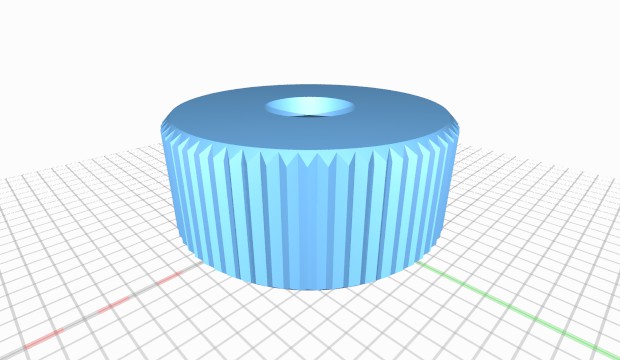

Knob-for-Tread.stl180134 kB10 months ago Download

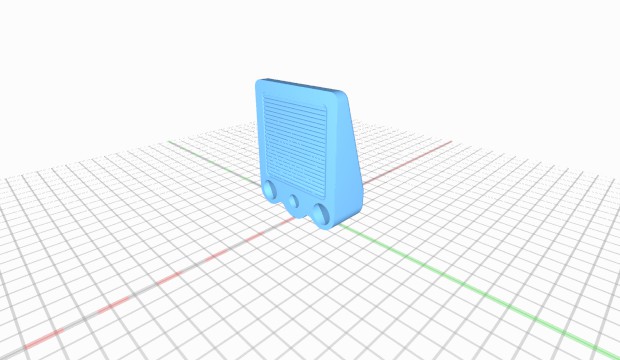

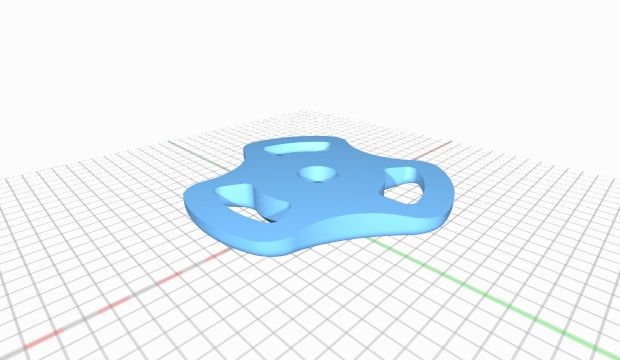

Ruber.stl171914 kB10 months ago Download
pic.jpg16150 kB10 months ago Download
pic1.jpg17129 kB10 months ago Download
pic2.jpg17114 kB10 months ago Download
pic3.jpg18534 kB10 months ago Download
pic4.jpg18354 kB10 months ago Download
pic5.jpg17531 kB10 months ago Download
pic6.jpg17519 kB10 months ago Download
pic7.jpg17034 kB10 months ago Download
pic8.jpg17041 kB10 months ago Download
pic9.jpg17915 kB10 months ago Download
pic10.jpg18428 kB10 months ago Download
pic11.jpg17936 kB10 months ago Download
Description

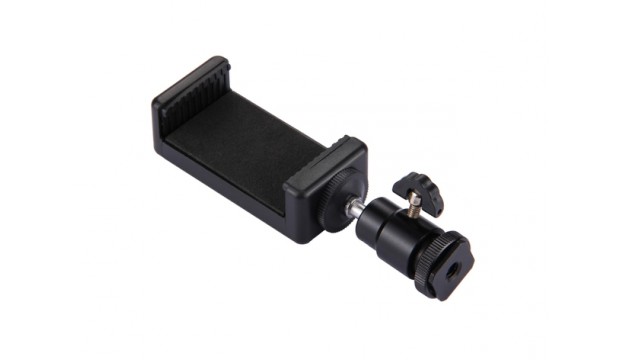

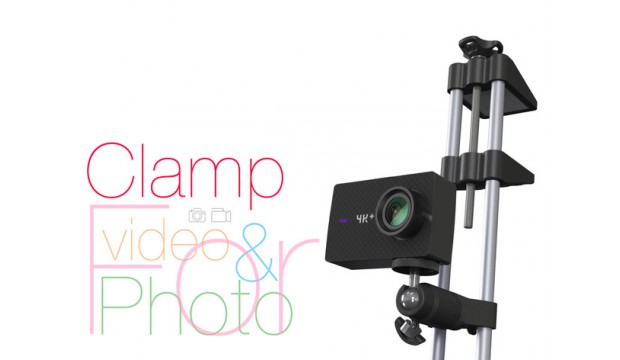

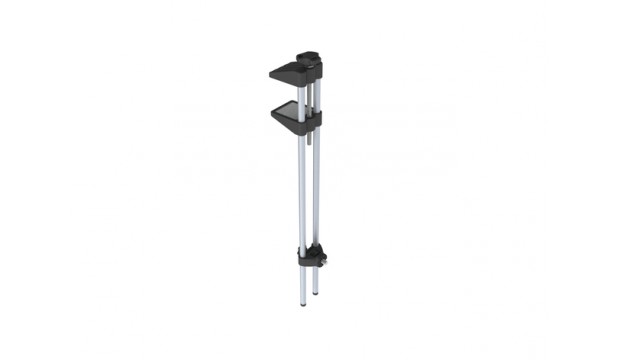

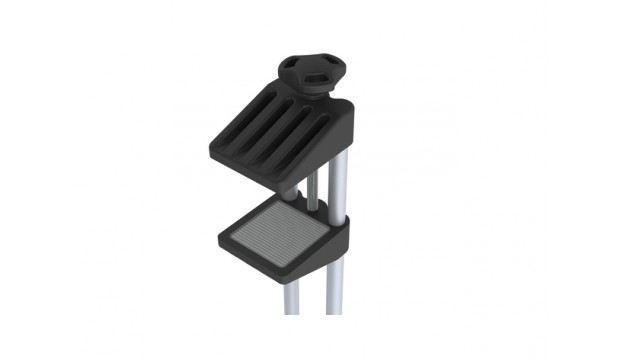

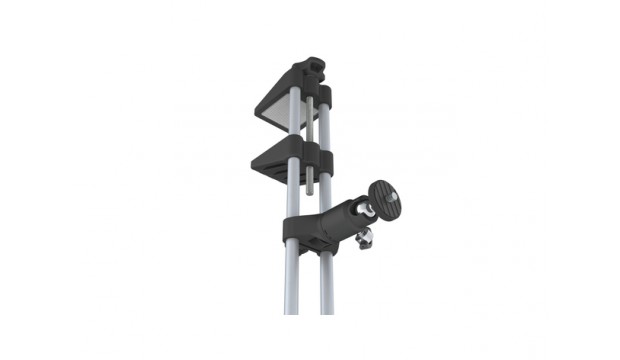

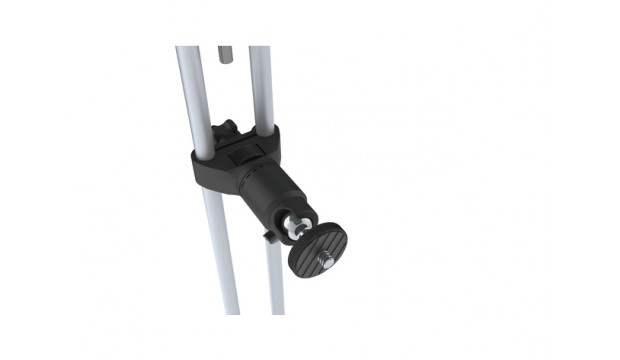

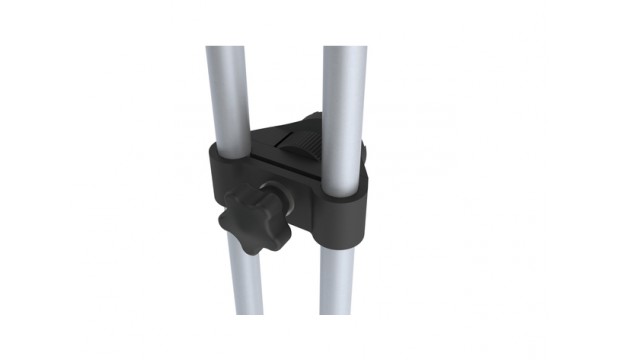

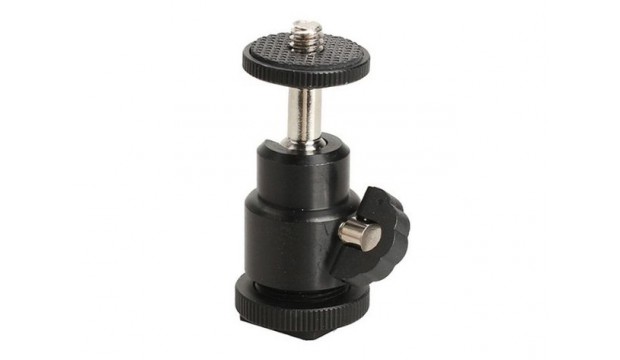

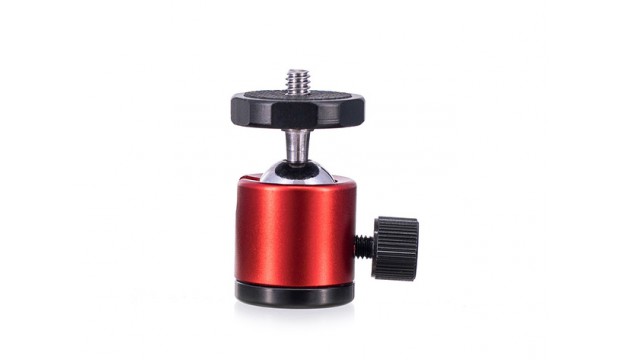

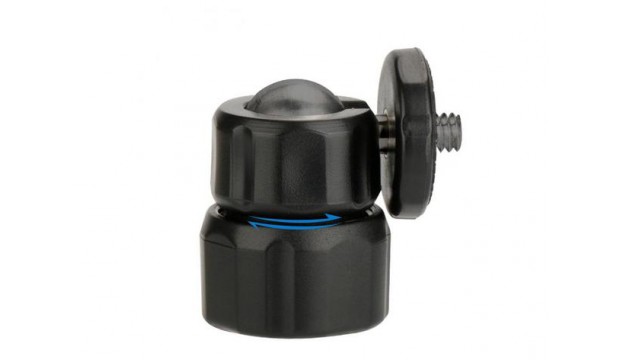

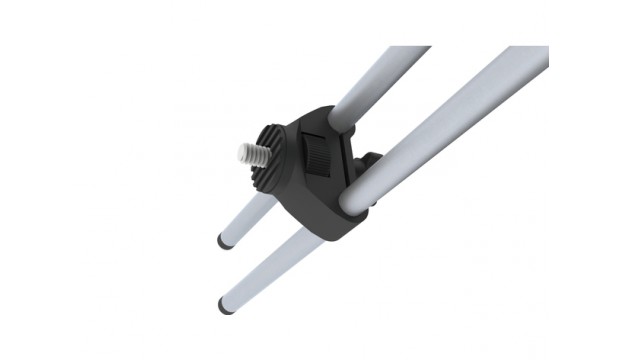

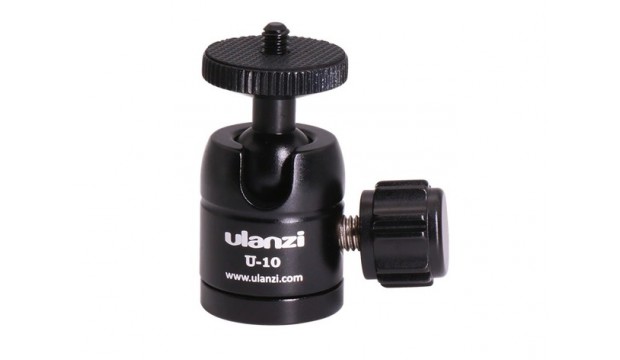

https://www.thingiverse.com/thing:3084138 Clamp for vertical use The clamp is suitable for use by small cameras like Hero or Yi 4k + and other similar ones. You can also use smartphones for shooting. The clamp can be mounted on the shelf or edge of the table. Using the ball head - the viewing angle is not limited. Also suitable for other devices for installing cameras. I used tubes with a diameter of 8 mm, a wall thickness of 1 mm. Anodized aluminum. Threaded stud - M5 length 110 mm. Rubber substrate can be printed with soft filaments. Some parts have to be glued together, but I'm sure you can do it :) In principle, it was possible to make clamps and thinner, but I was reinsured and made a margin of safety. In the video, I showed the stages of assembly of some parts. ------------------ https://youtu.be/6ZGhDAauqgs ---------------- For the options of suitable ball heads, see below. Mini Ball Head - http://ali.pub/2z2lot Ball Head v1 - http://ali.pub/2z2lt3 Ball Head v2 - http://ali.pub/2z2m0h Ball Head v3 - http://ali.pub/2z2m37 Ball Head v4 - http://ali.pub/2z2m6b ------------------ Buy & save with cashback ---> http://ali.pub/2v0znm ------------------- Donate with PayPal ---> https://www.paypal.me/perinski Instagram ---> https://www.instagram.com/v.perinski/ Twitter ---> https://twitter.com/v_perinski Pinterest ---> https://www.pinterest.com/v_perinski/ Tingiverse ---> https://www.thingiverse.com/thing:2110500 Facebook ---> https://www.facebook.com/3DPrinting.stl/
