STEMFIE construction set sample parts
Stemfie3D
| Filename | Downloads | Size | Uploaded | |
|---|---|---|---|---|
| stemfie.org_preview_image_sample_parts_(4-3).jpg | 804 | 219 kB | on 21/12/19 | Download |
| stemfie.org_preview_image_sample_parts_buildplate_(4-3).jpg | 787 | 240 kB | on 21/12/19 | Download |
| stemfie.org_quick-print_sample_parts_(shoulder-screw_pin_nut_washers_brace).stl | 2141 | 2.1 MB | on 21/12/19 | Download |
Description
STEMFIE is a 3D-printable construction set you can download and make for free!

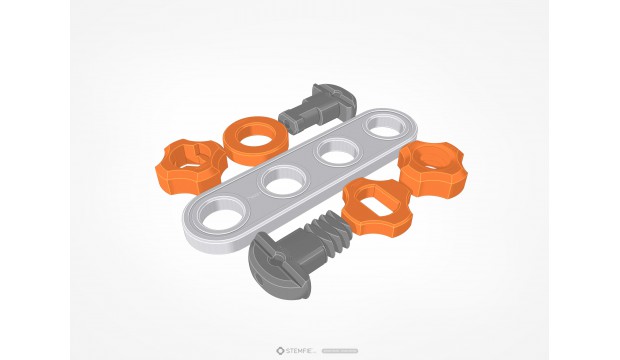

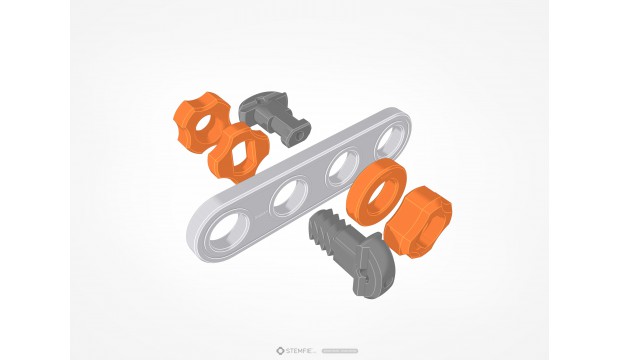

As a preview, this sample file contains the following standard parts in the STEMFIE mechanical echo system.
- Shoulder screw (SPN-SSC-0042)
- Cam-locking pin (SPN-PIN-0042)
- Free washer (SPN-WSR-0038)
- Fixed washer (SPN-WSR-0001)
- Threaded nut (SPN-NUT-0001)
- Cam-locking nut (SPN-NUT-0018)
- Brace plate (SPN-BRC-0003)
- URL sign

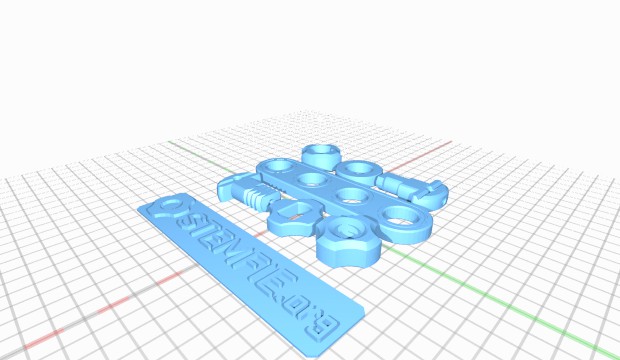

This print typically takes 30 minutes to make on a filament-based 3D printer, consuming little material (less than two metres).
Depending on the calibration of your 3D printer, the parts should fit snuggly. The threaded nut should rotate freely onto the shoulder-screw, and the cam-locking nut attaches to the tip of the cam-locking pin, by turning 90 degrees.
Stay tuned at http://stemfie.org/news to learn more about this project and be the first to know when new files are released in the future.
- https://twitter.com/Stemfie3D
- https://www.instagram.com/stemfie3d
- https://www.facebook.com/Stemfie3D
- http://stemfie.org/downloads
@Stemfie3D #Stemfie3D #3Dprinting #ConstructionSet #3Dprintable #Toys
License
Attribution - Non-Commercial - Share Alike
