MicroSD & SD Adapter Card Wallet
Joelk111
| Filename | Downloads | Size | Uploaded | |
|---|---|---|---|---|
| IMG_20201230_015049.jpg | 3028 | 2.2 MB | on 30/12/20 | Download |
| IMG_20201230_015410.jpg | 3075 | 4 MB | on 30/12/20 | Download |
| IMG_20201230_015014.jpg | 3056 | 2.4 MB | on 30/12/20 | Download |
| IMG_20201230_014950.jpg | 3067 | 2.7 MB | on 30/12/20 | Download |

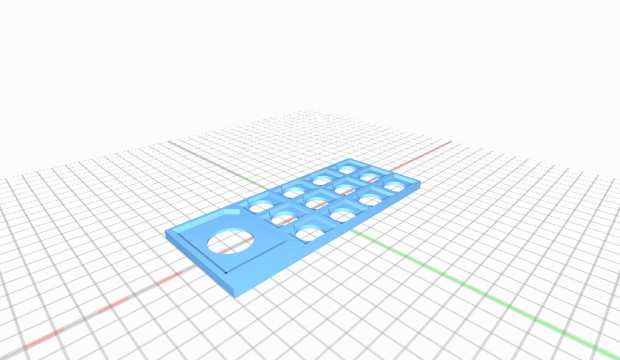

| microsd card+adapter holder.stl | 579 | 250 kB | on 4/1/21 | Download |

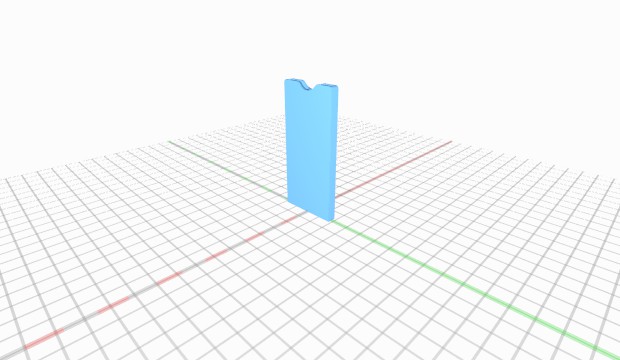

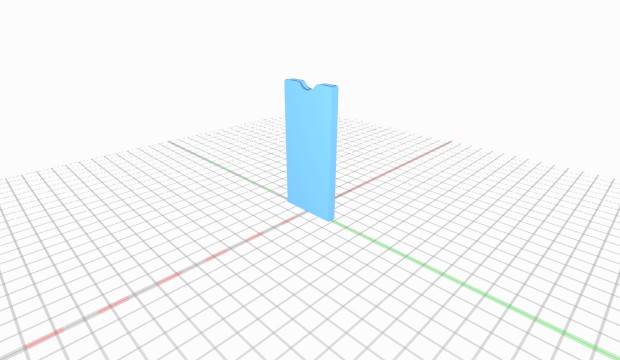

| slide-in cover - lengthened.stl | 561 | 30 kB | on 4/1/21 | Download |
Description

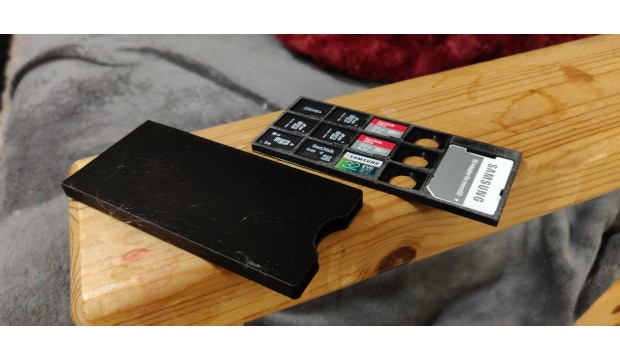

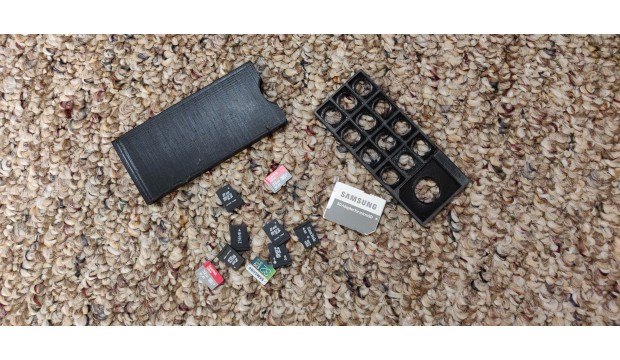

Loved the wallet made by aerobatflyer, but needed it to hold my SD adapter as well. Second ever model, so I'm lowkey proud of the modifications I made. Ask me if you want some other configuration and maybe I'll make it.
Modifications:

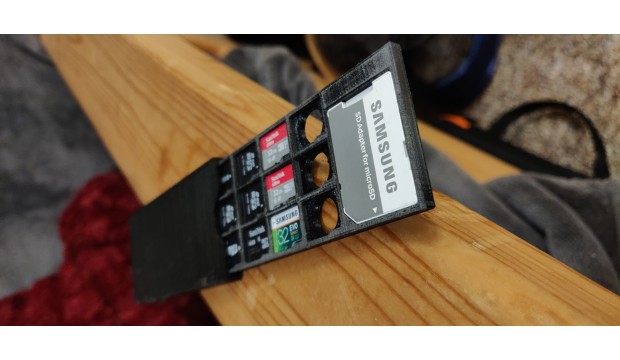

-Added full size SD tray.
-Deepened the MicroSD trays, as there was more room due to the thicker SD slot.
-Made the MicroSD Cards fit more snugly by bringing the notch further down by 0.9mm.
Instructions
Printing:

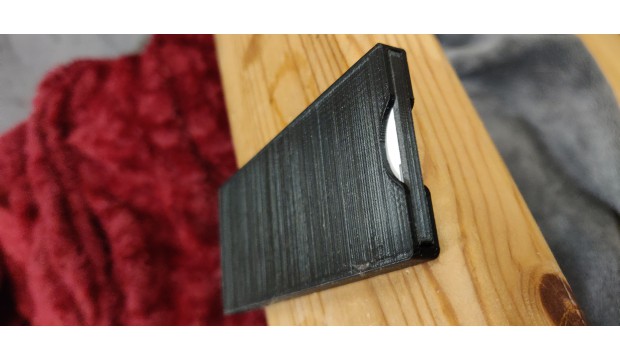

Should be obvious how to orient these, but I printed the slider flat, and the case open-side-up. 100% fill because there was basically no difference in time due to the thinness, and they're such fragile parts anyways.
Post-Printing:
Run the top of the tray over sandpaper a few times to smooth it off checking fit as you go until snug. Shouldn't have any problem with it falling out if you do it properly.
License
Attribution - Creative Commons
