Raspberry Pi Case VESA Mount (Quick fit)
![](/images/gallery/e2c0be24560d78c5e599c2a9c9d0bbd2_2639541487415ef6c7371e0c6c87932f.jpg)
![](/images/gallery/e2c0be24560d78c5e599c2a9c9d0bbd2_2639541487415ef6c7371e0c6c87932f_thumb.jpg)
![](/images/gallery/e2c0be24560d78c5e599c2a9c9d0bbd2_f2e015352f9579f965bbb1ba122f0acf_thumb.jpg)
![](/images/gallery/e2c0be24560d78c5e599c2a9c9d0bbd2_5a9f2921aca686d2dc2a526c052d2a58_thumb.jpg)
![](/images/profile/thumbnails/225_1c2126c0b2703de90330cdf0555ef0c5_120w_120h_.jpg)
natko
Description

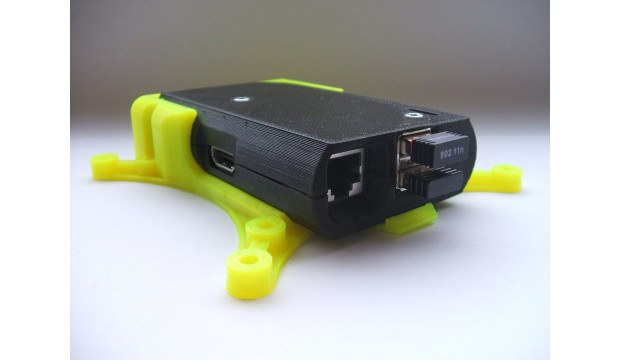

VESA mounting plate for my Pi case, with easy release allowing you to remove a peace of pie when peckish.
Sorry for the gopping yellow plastic (all I got left .. but good quality)

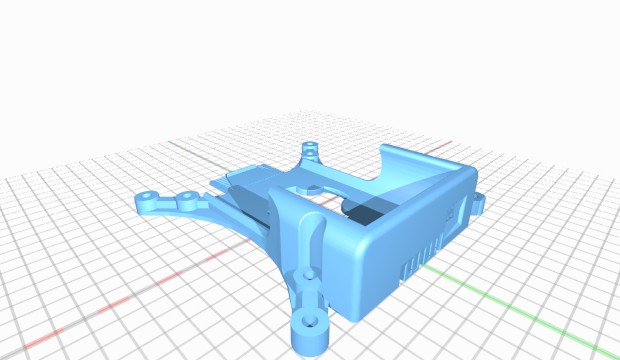

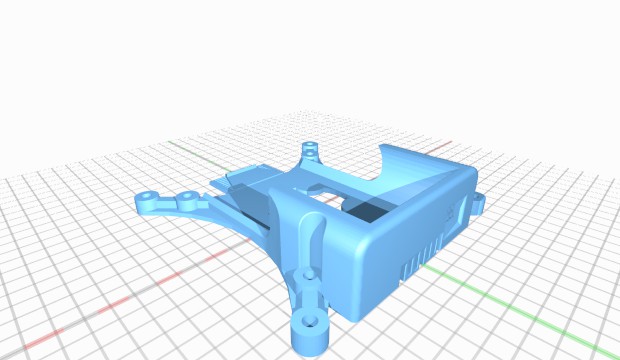

Update .. second stl added with 0.5mm addition gap ( I know he said 1mm but I like tight ) ;)
Instructions
Print n break off the support material, the latch may need a bit more effort to clean back the support material with a file or sharp craft knife.
The mounting holes may need running through with a 4mm drill bit.
Printed no support, 2 wall's, 30% infill, 0.3 layer, nozzle is 0.46 on my printer.
You will need:
4 Off M4 screws (length to suit application)
License
Attribution - Creative Commons
