Beaglebone Black Slim Case
Scuttlebot
| Filename | Downloads | Size | Uploaded | |
|---|---|---|---|---|
| bbb slim overview 2.jpg | 1028 | 478 kB | on 22/9/14 | Download |

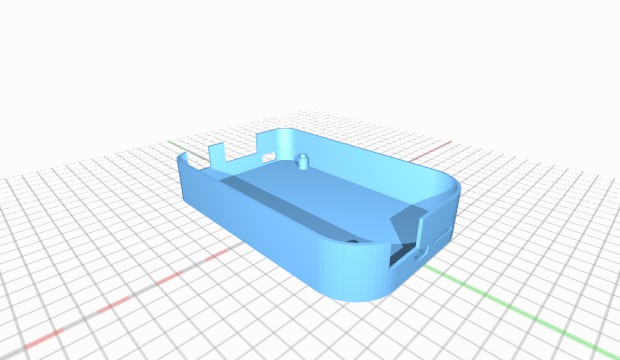

| bbbslimcase_base.stl | 1028 | 298 kB | on 22/9/14 | Download |

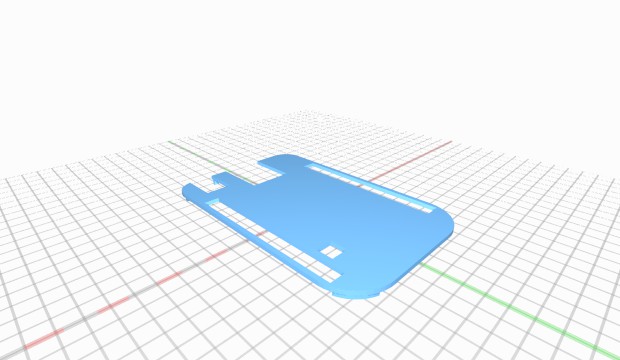

| bbbslimcase_lid.stl | 1001 | 120 kB | on 22/9/14 | Download |
| bbb slim front view.jpg | 1028 | 428 kB | on 22/9/14 | Download |
| bbb slim end view.jpg | 1037 | 457 kB | on 22/9/14 | Download |
| bbb slim parts view.jpg | 1086 | 540 kB | on 22/9/14 | Download |
| bbb slim top view.jpg | 1031 | 482 kB | on 22/9/14 | Download |
Description
This is a slim line case for the Beaglebone Black development board. The case was developed to minimize volume while exposing all pin headers and external ports.
The case was developed with OpenSCAD and the source code can be found on my github page at https://github.com/IkeHayes/BBB_Slim_Case
The case is complete and fully functional. My goal is to add additional options and accessories to go along with the case which will come at a future date.
Instructions
The case requires no external hardware. There are several options available in the OpenSCAD file if you would like to modify it. At the top of the source code is an option to print a lid without the pin headers if you so choose.
You can fork me on github here: https://github.com/IkeHayes/BBB_Slim_Case
License
Creative Commons - GNU GPL
