Berd-Air clip for 713 maker mount plate
Xenocrates
| Filename | Downloads | Size | Uploaded | |
|---|---|---|---|---|

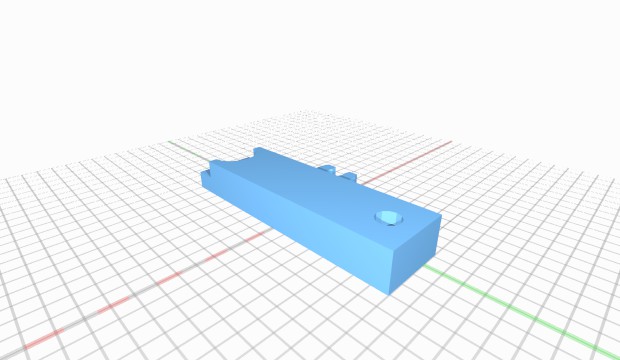

| 713maker_compatible_berd-air_clip.stl | 3187 | 14 kB | on 20/2/16 | Download |
| 713maker_compatible_berd-air_clip_fixed.stl | 3218 | 20 kB | on 20/2/16 | Download |

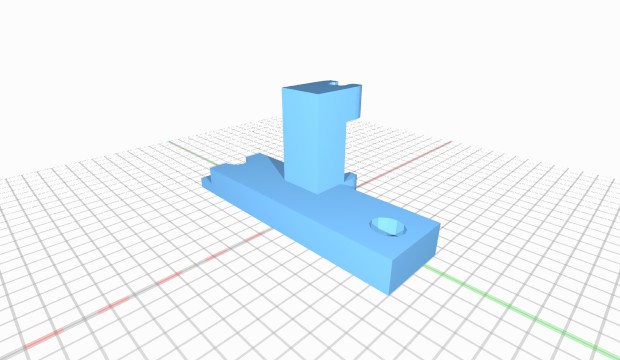

| 713maker_compatible_berd-air_clip_v3.stl | 1784 | 18 kB | on 22/2/16 | Download |
| 713maker_compatible_berd-air_clip_v3_fixed.stl | 1808 | 26 kB | on 22/2/16 | Download |

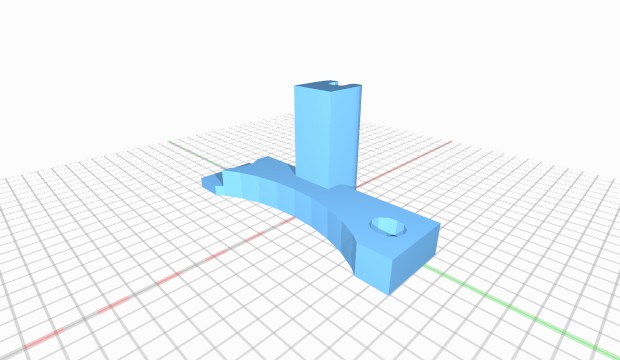

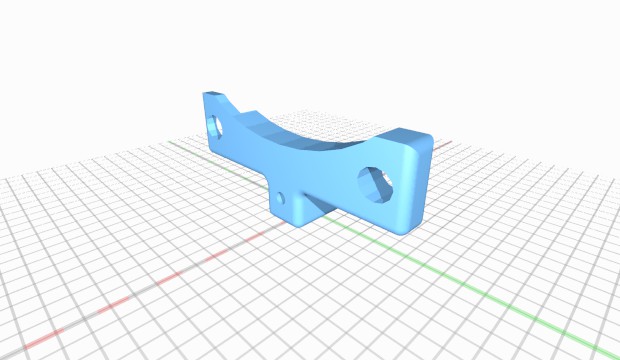

| berd-air for 713 maker.stl | 1044 | 844 kB | on 2/11/16 | Download |

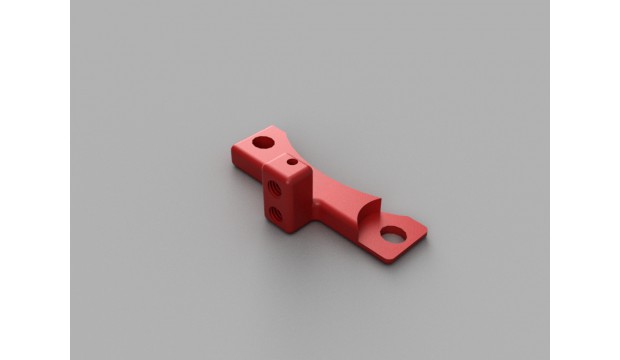

| berd_air_for_713%2c_grub_screw_edition_2016-oct-31_05-05-28am-000_customizedview8485207299.png | 1109 | 451 kB | on 2/11/16 | Download |
Description
It's a tight fit, but it will go over the wire loop, and screw in with the provided screws.Has been tested. M3 set screws replace the error prone clip in this version, and allow more adjustment than gluing into a clip as I had before. It also allows the Berd air to be turned and raised out of the way when not in use, such as if you want to use a nozzle sock (unfortunately it doesn't seem those are compatible with a Berd Air)
Instructions
Print, then ream screw holes with 1/16th IN drill bit. Remove groove mount from printer. Loosen all 3 mounting screws for lock ring, completely removing two, along the counter-clockwise side of the wire loop. Restart the two screws, and then tighten. Bend Berd-air to needed dimensions, then slip into hole. Re-install groove mount onto effector, then tighten the grub screws.
