Duet and wifi, Paneldue and 4.3 LCD, 7 inch Touchscreen Mounting System for Rostock Max V2
CodonExe
| Filename | Downloads | Size | Uploaded | |
|---|---|---|---|---|
| IMG_0407.jpg | 3489 | 2 MB | on 1/7/16 | Download |

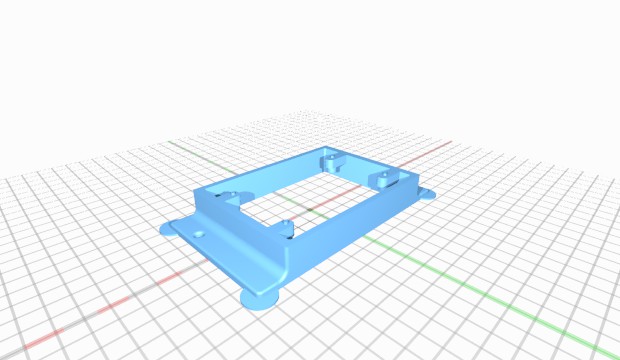

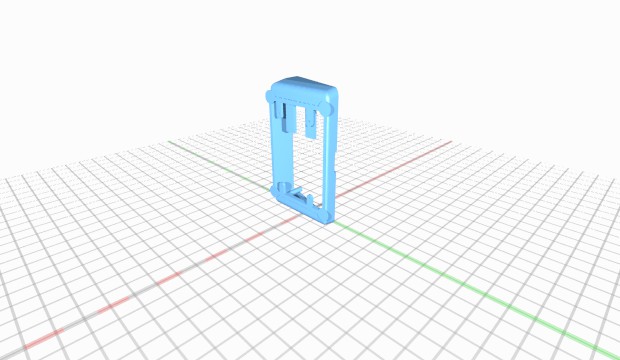

| 1 of 4 base part for DXE4.stl | 3123 | 234 kB | on 12/7/16 | Download |

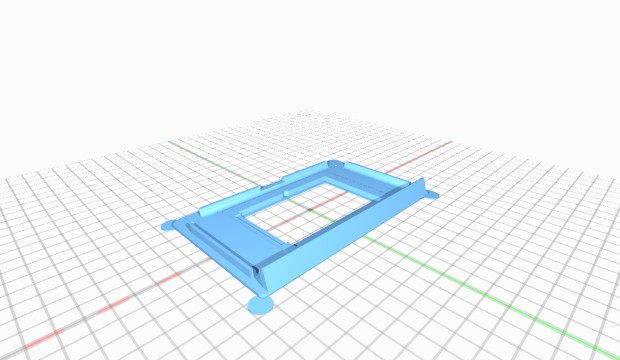

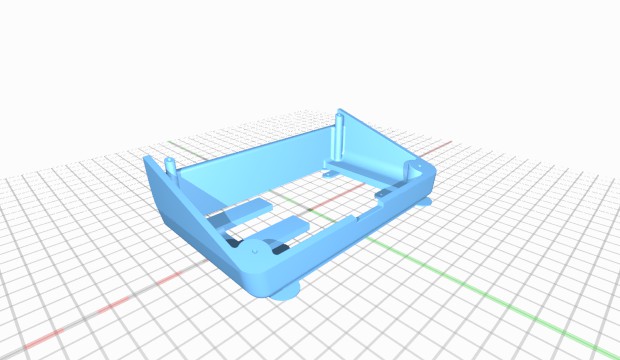

| 2 of 4 mid part for paneldue.stl | 3193 | 3.5 MB | on 12/7/16 | Download |

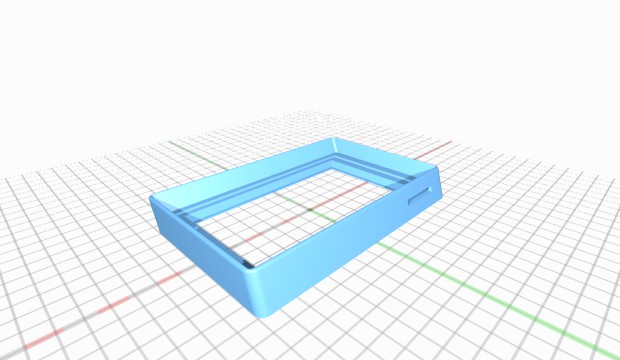

| 3 of 4 top face plate 4_3.stl | 3116 | 165 kB | on 12/7/16 | Download |
| 3 of 4 top face plate 7 inch.stl | 2459 | 209 kB | on 12/7/16 | Download |

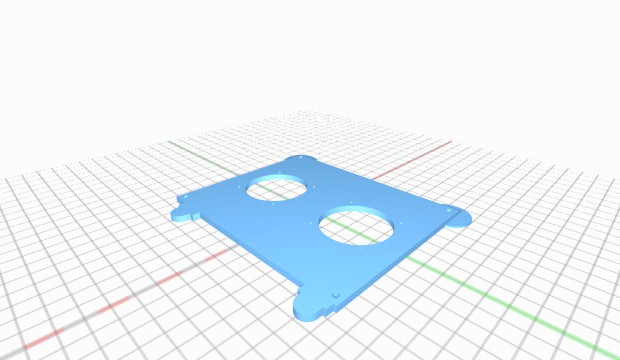

| 4 of 4 internal duet mounting plate.stl | 1846 | 103 kB | on 12/7/16 | Download |
| 4 of 4 internal duet mounting plate rambo replacement.stl | 1801 | 103 kB | on 12/7/16 | Download |
Description

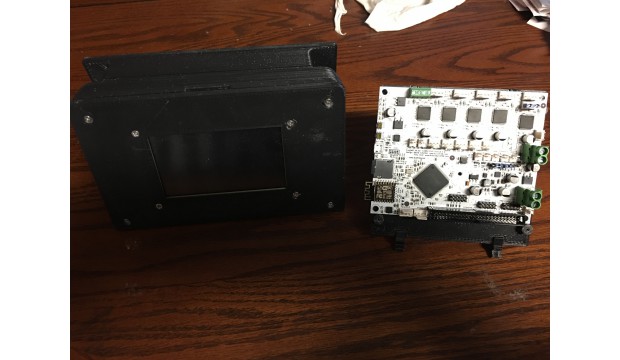

Instead of one large part taking 18hrs. This is a 3 part system that will mount all the different boards except the Duet. The Duet will be mounted where the RAMBo currently lives. This is based on 3Dprints design but modified. Mounts directly where the old RAMBo lcd control panel mounts.
7-11-16: 7" LCD touchscreen mount plate now included.
Instructions
Screw the parts together. Use a rotary tool to add holes and ports you wish.
License
Attribution - Creative Commons
