Gear lever switch cover
FilenameDownloadsSizeUploaded

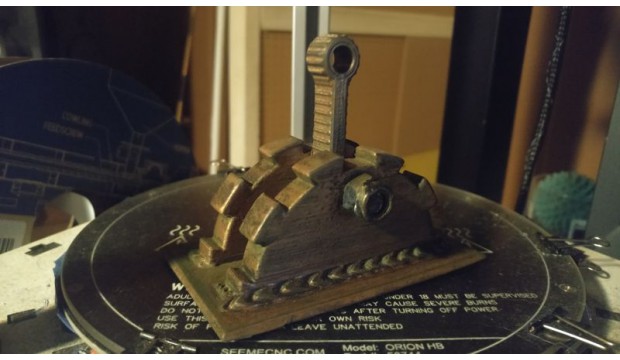

switch small.jpg8890 kB8 months ago Download
modeled.jpg8538 kB8 months ago Download

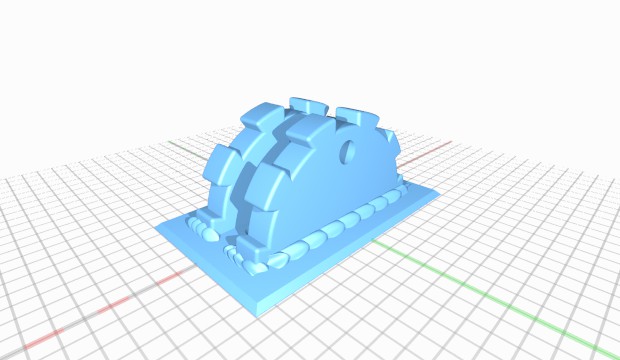

plate welded.stl796.7 MB8 months ago Download

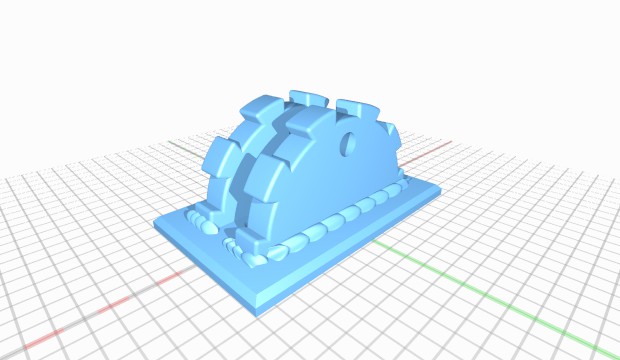

raised switch plate.stl716.6 MB8 months ago Download

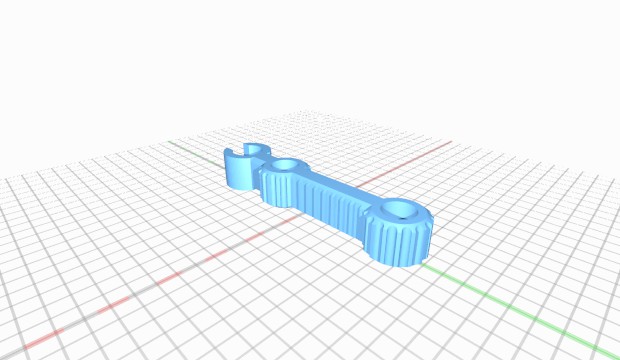

switch lever.stl89356 kB8 months ago Download
Description
this is a model I made with fusion 360. the was experimenting with using "sculpting" tools in Fusion 360 for the weld joint.
Instructions
Raised switch plate has clearance if your switch is not flush with wall, I have not printed this one yet, there should be 2 solid layer before the switch opening and screw holes that will need to be cut open after printing, this should allow for bridge layers. used 3/8 bolt and lock nut to assemble.
License
Attribution - Creative Commons
Comments
jjjohnson - 8 months ago
awesome!
