E3D v6 40mm Fan Duct
MechanizedMedic
| Filename | Downloads | Size | Uploaded | |
|---|---|---|---|---|
| E3Dv6_40mmDuctedShroud_V3_003.png | 5215 | 56 kB | on 8/10/14 | Download |
| MainBlock+Nozzle_v3.stl | 1183 | 179 kB | on 8/10/14 | Download |
| mainblock+nozzle_v3_revb.stl | 694 | 166 kB | on 9/10/14 | Download |
| MainBlock_NoNozzle_v3.stl | 1170 | 153 kB | on 8/10/14 | Download |
| mainblock_nonozzle_v3_revb.stl | 747 | 153 kB | on 9/10/14 | Download |

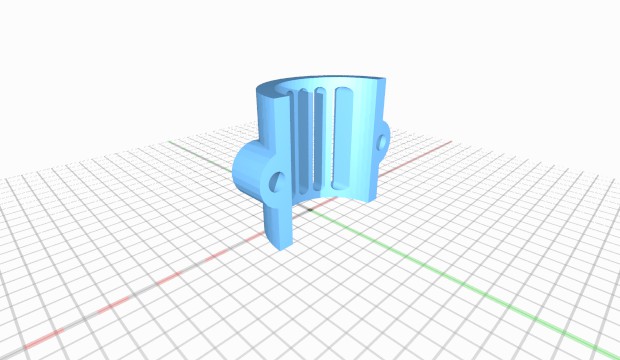

| VentedClip_v3.stl | 1143 | 71 kB | on 8/10/14 | Download |
| ventedclip_v3_revb.stl | 635 | 71 kB | on 9/10/14 | Download |
| ventedclip_v3_revc.stl | 687 | 110 kB | on 9/10/14 | Download |

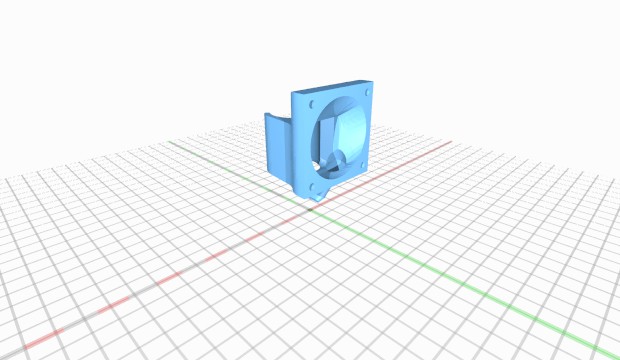

| E3Dv6_40mmDuctedShroud_V3.fcstd | 1043 | 1.1 MB | on 8/10/14 | Download |
Description

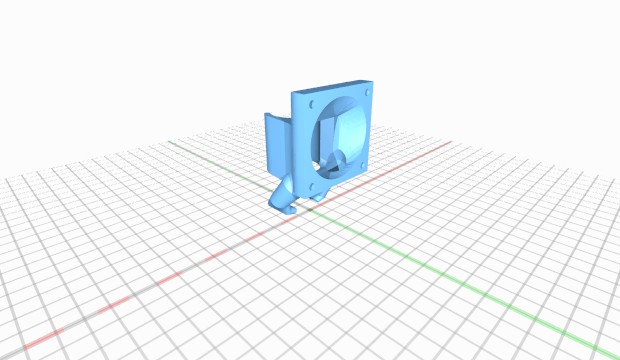

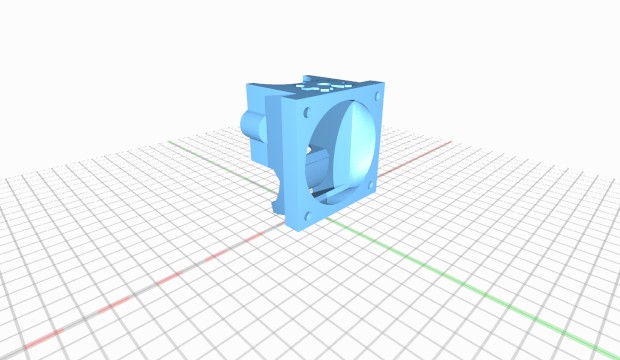

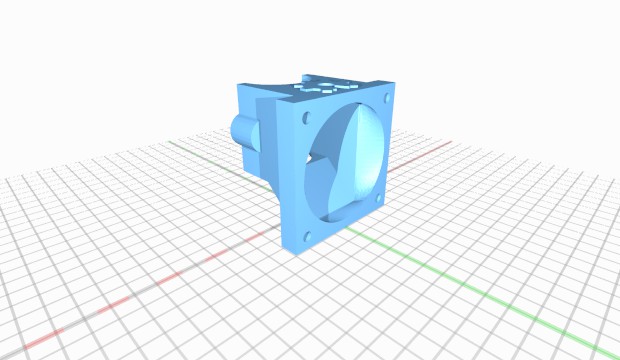

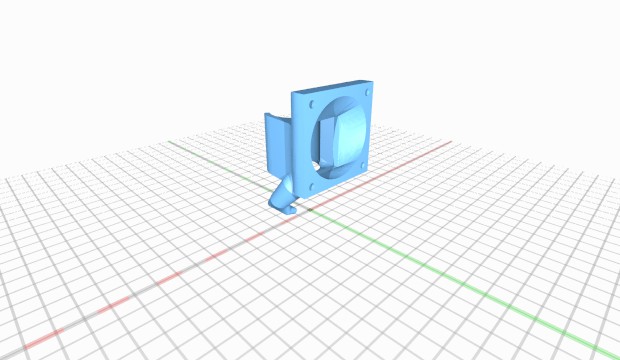

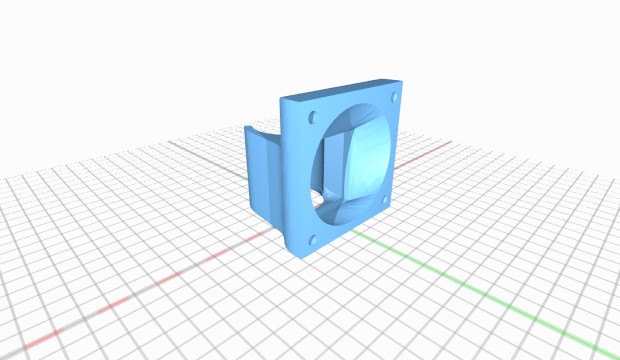

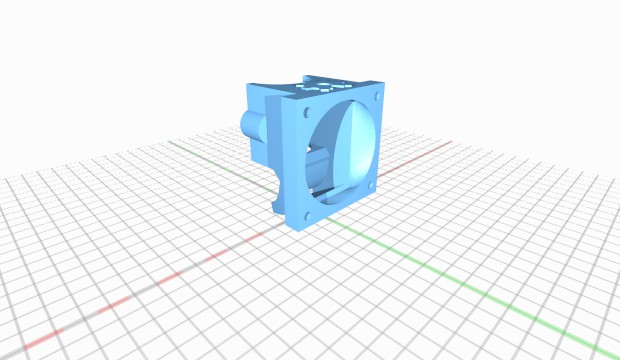

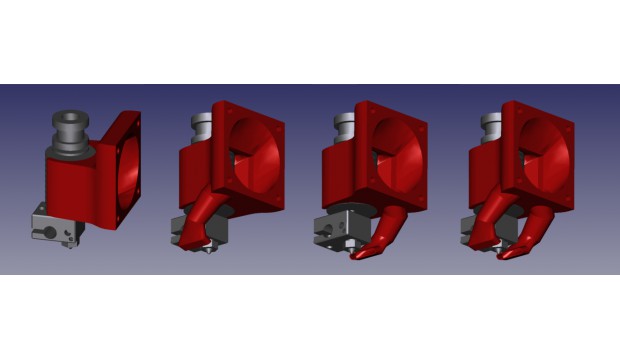

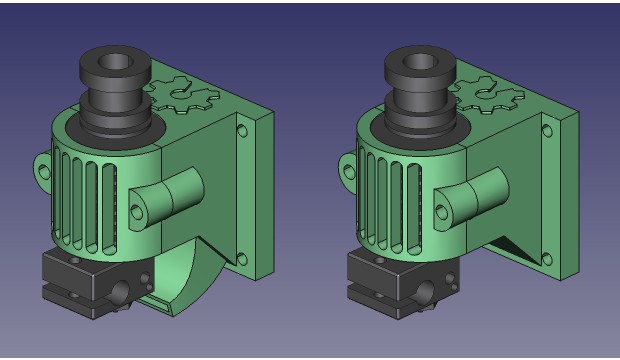

I wanted to make a cooling shroud/duct that had cooling nozzles as well. In the process of doing so I made four variants. The STL files have not been rotated to lay flat on the printing surface since I have not yet decided what orientation would be best. The first revision that I posted was fragile and tough to print. I started over from scratch and it's heaps better... The new design is denoted as "v3" in all file names. <br> ------>>>> UPDATE: The main block has been updated to be a little easier to print and clamp to the hotend. Also, new clips have been uploaded. Rev B improves the clamping ability on the hotend and rev C is for added strength. <<<
Instructions

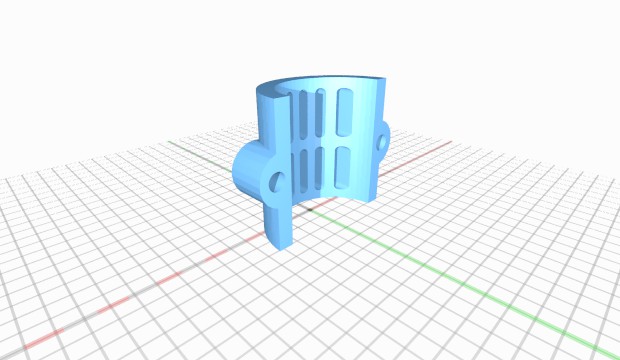

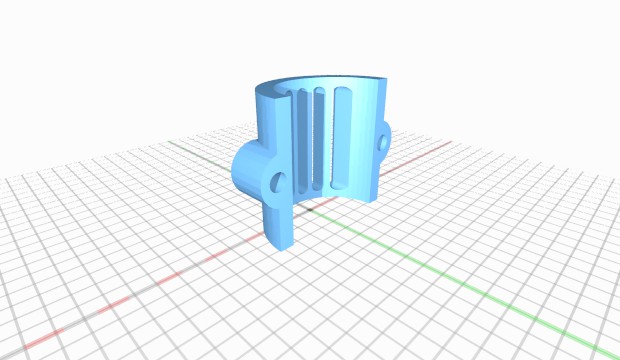

Version 3 (revB/C): The new parts should print better in some critical areas. Rev C of the clip is a little sturdier at the expense of a little air flow. -///- Version 3: Should be easy to print, especially with support enabled. -///- Version 2: Good luck... I tried twice - once with Slic3r, once with Cura - and the nozzles don't slice or print well.
License
Creative Commons - GNU GPL
